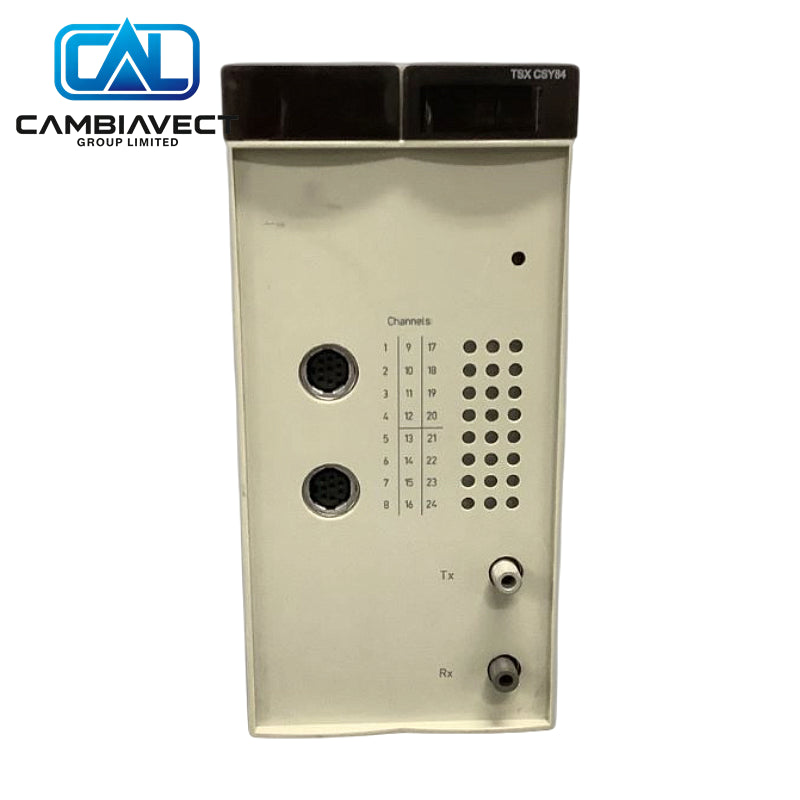

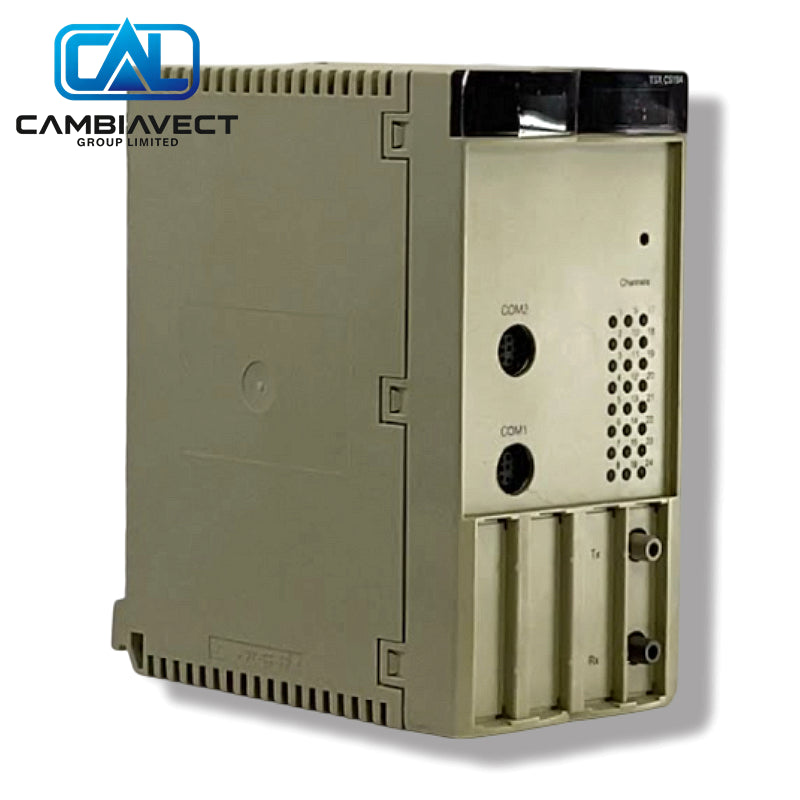

Premium SERCOS Multi-Axis Module TSXCSY84 Schneider
Manufacturer: Schneider
Product No.: TSXCSY84
Product Type: Multi-Axis Control Module
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider TSXCSY84 is a multi-axis control module for the Modicon Premium platform. It communicates with SERCOS digital servo drives over a fiber-optic ring network and supports up to 8 real axes.
Key Specs
- Network: SERCOS 2 (EN 61491)
- Axes: 8 real, 4 coordinated, 4 remote, 4 imaginary
- Transmission rate: 4 Mbit/s
- Cycle time: 2 ms (2/4 axes), 4 ms (8 axes)
- Current consumption: 1800 mA at 5 V DC
- Power dissipation: 9 W
- Platform: Modicon Premium
Why Choose This
- Native SERCOS interface for digital servo drives
- Supports coordinated multi-axis motion
- Fiber-optic ring topology for robust industrial networks
- Integrated path and cam functions
Common Questions
- How many real axes? Up to 8.
- Network type? SERCOS 2 fiber-optic ring.
- Platform? Modicon Premium.
Mounting Steps
- Install the module in a Premium rack slot.
- Connect the SERCOS fiber-optic ring to the servo drives.
- Configure axis parameters and network in the motion software.
- Power up and verify RUN and SER status LEDs.
- Test coordinated motion according to the application.
Buying Advice
- Confirm SERCOS drive compatibility and fiber type (glass/plastic).
- Check 5 V power budget due to relatively high current draw.
- Essential spare for Premium multi-axis servo applications.
