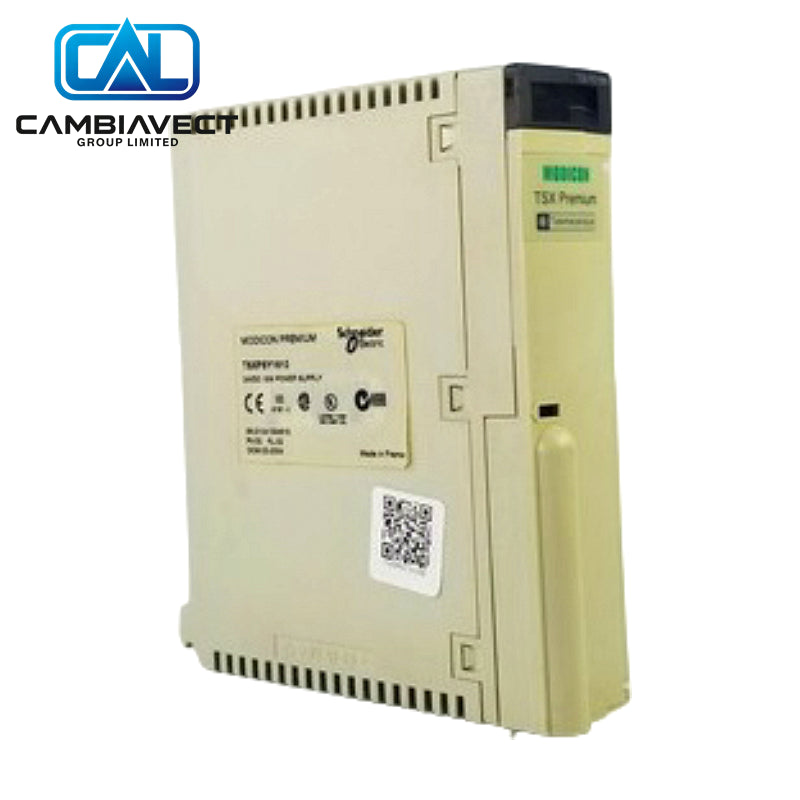

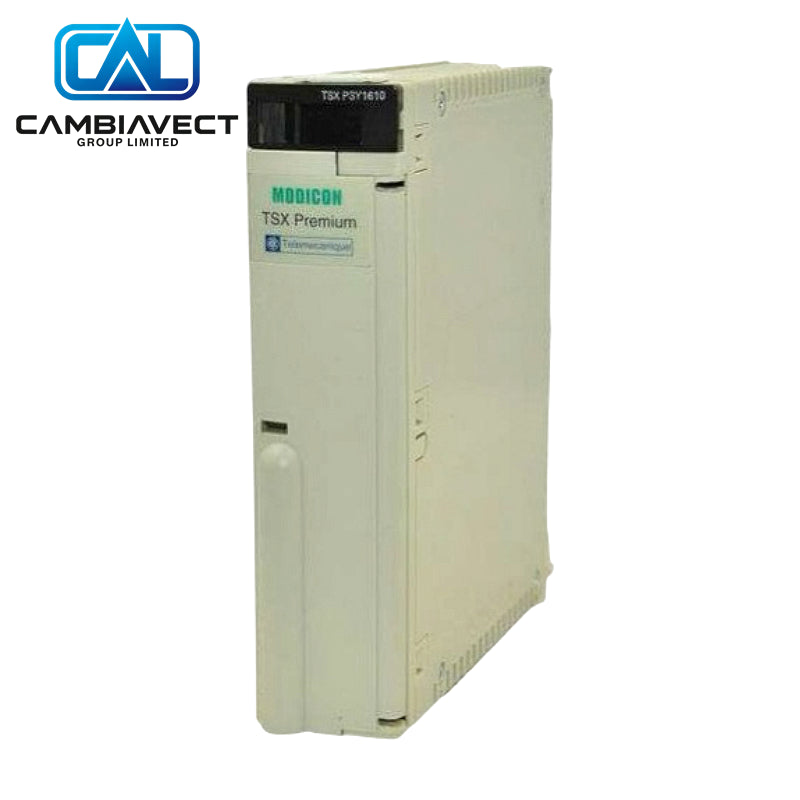

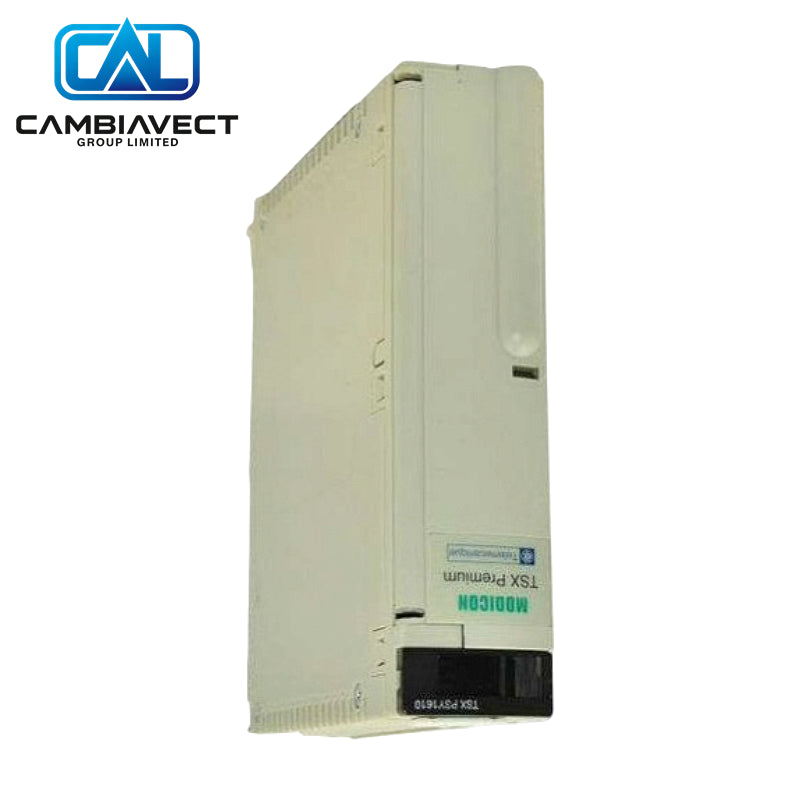

Premium Power Supply TSXPSY1610M Schneider 24VDC 30W
Manufacturer: Schneider
Product No.: TSXPSY1610M
Product Type: Power Supply Module
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric TSXPSY1610M is a 24 V DC input power supply module for the Modicon Premium platform. It provides 5 V and 24 V secondary rails with a total useful power of 30 W for the processor, I/O modules and relay supplies.
Key Specs
- Platform: Modicon Premium
- Primary: 24 V DC (19.2–30 V)
- Input current: ≤ 1500 mA at 24 V
- Secondary power: 30 W total (15 W at 5 V DC / 15 W at 24 V DC class)
- Secondary current: Approx. 3 A at 5 V DC; 0.6 A at 24 V DC relay supply
- Protection: Primary fuse, overload, overvoltage and short-circuit on secondary
- Signalling: OK and battery-fault LEDs
Why Choose This
- Dedicated Premium rack power supply for 24 V DC fed systems
- Integrated protection and status indication
- Supports processor logic and relay power rails
- Standard Premium form factor
Common Questions
- Input? 24 V DC (19.2–30 V).
- Power? 30 W total secondary.
- Platform? Modicon Premium.
Mounting Steps
- Install the module in the Premium rack power supply slot.
- Connect 24 V DC primary supply with correct fusing and polarity.
- Verify secondary voltages before loading I/O modules.
- Power up and confirm OK LED status.
- Check battery fault indication if a backup battery is used.
Buying Advice
- Calculate total 5 V and 24 V load before selecting capacity.
- Confirm primary is 24 V DC (not AC) for this model.
- Critical spare for Premium 24 V DC powered racks.
