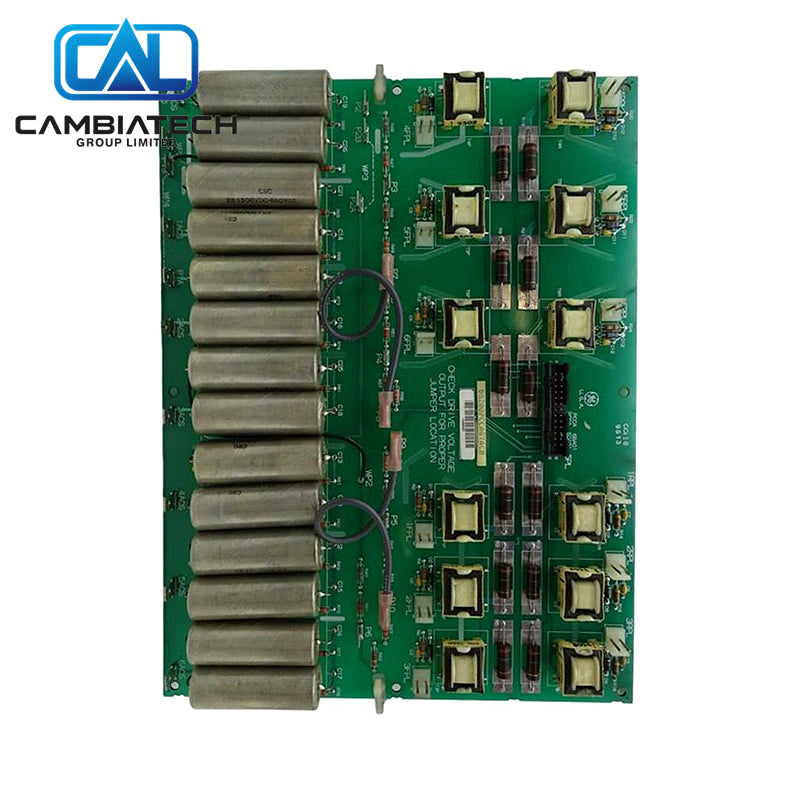

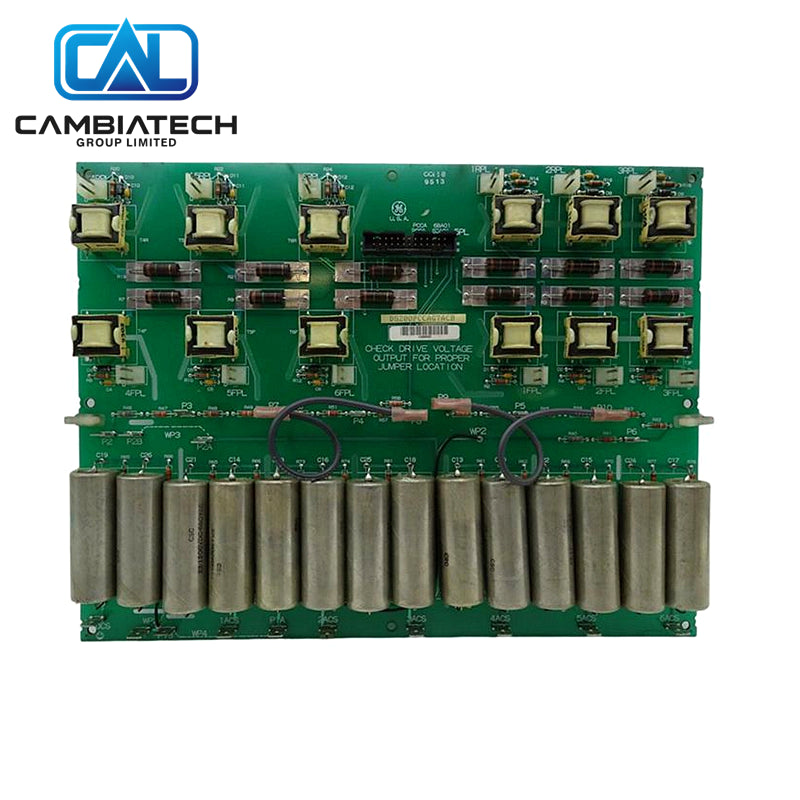

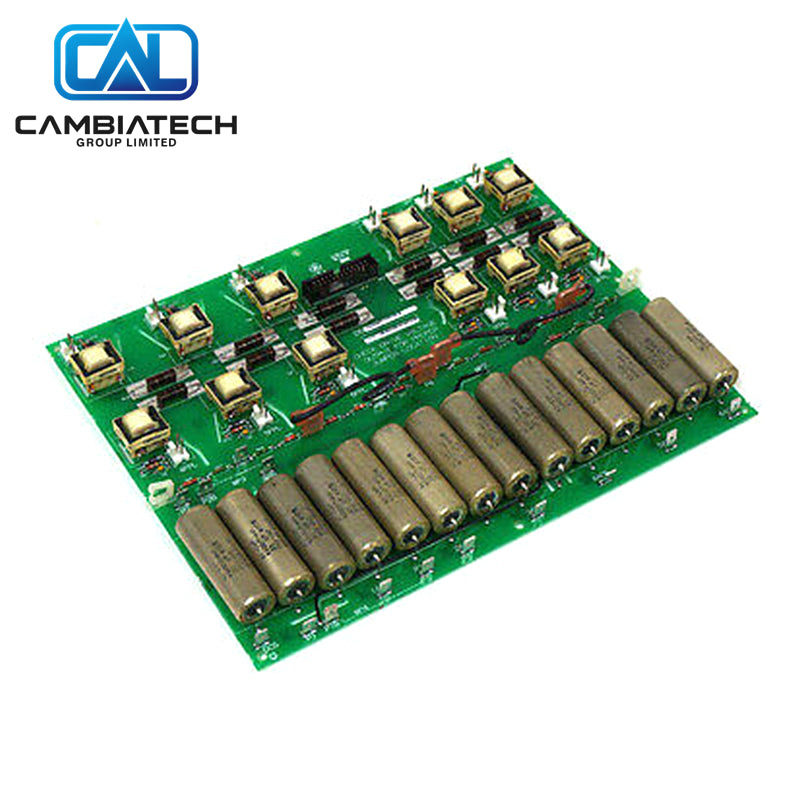

Power Connect Card DS200PCCAG7ACB GE DC2000 PCCA
In stock, ready to ship
Manufacturer: GE
Product No.: DS200PCCAG7ACB
Product Type: Power Connect Card
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
GE DS200PCCAG7ACB is a Power Connect Card (PCCA) for DC2000 series drives. It interfaces the drive control with the SCR power bridge, supporting AC/DC snubbers, line protection and various frame styles under 600 V rms.
Key Specs
- Function: Power Connect Card (PCCA)
- Series: DC2000 / Mark V DS200
- Voltage: < 600 V rms AC
- Frame styles: C or G
- Features: AC/DC snubbers, line fuses/reactors support
- Manual: GEI-100161
- Coating: Normal
Why Choose This
- Critical interface between control and power bridge
- Supports multiple snubber and transformer configurations
- Compatible with SDCI power supply boards
- Robust design for DC drive power sections
Common Questions
- Function? Power connection to SCR bridge.
- Voltage limit? Under 600 V rms.
- Repairable? Typically non-repairable.
Mounting Steps
- Power down and isolate the drive completely.
- Remove the existing PCCA board.
- Install the DS200PCCAG7ACB ensuring correct orientation.
- Reconnect power and control interfaces.
- Verify connections before restoring power.
Buying Advice
- Confirm frame style (C/G) and voltage rating match.
- Non-repairable — keep as critical spare.
- Check compatibility with existing snubbers and transformers.
