Bently Nevada

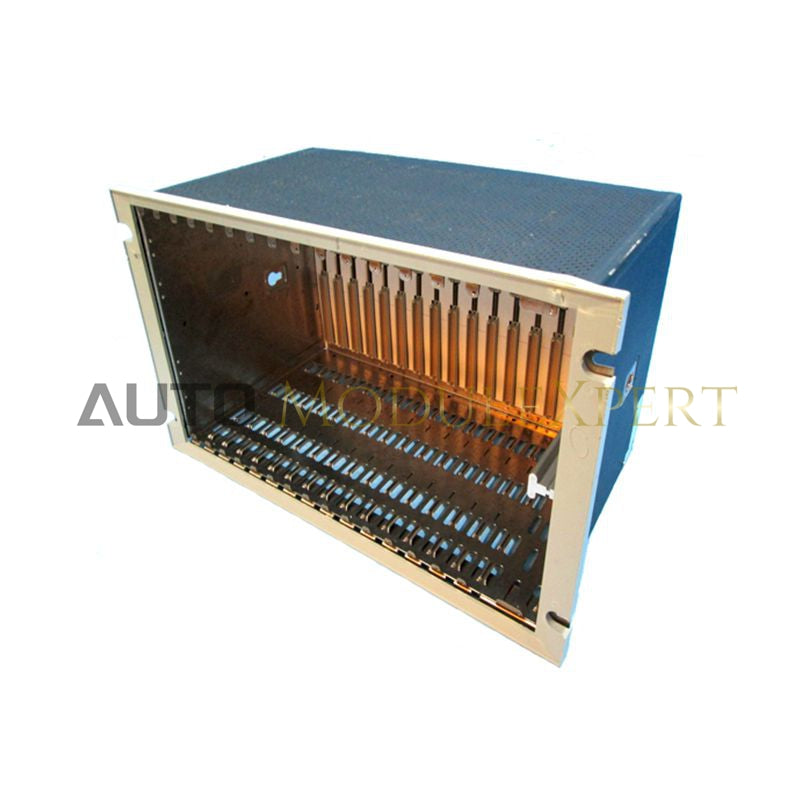

PLC Chassis System Rack Bently Nevada 3500/05‑01‑01‑00‑00‑00
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 3500/05-01-01-00-00-00
Product Type: PLC Chassis System Rack
Product Origin: USA
Payment: T/T
Weight: 7500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The Bently Nevada 3500/05 System Rack is the chassis framework for the 3500 Machinery Protection System, one of the most widely used monitoring platforms for rotating equipment worldwide. It provides the mechanical housing, backplane connections, and power distribution required to support monitoring modules such as vibration, temperature, speed, and communication interfaces.
This rack is the foundation of the 3500 series, enabling flexible configurations for machinery protection and condition monitoring. It ensures high reliability, modular expansion, and compliance with API 670 standards, making it suitable for mission‑critical applications in power generation, oil & gas, and heavy industry.
Technical Data
| Specification | Description |
|---|---|
| Product Type | System Rack / Chassis |
| Model Number | 3500/05‑01‑01‑00‑00‑00 |
| Dimensions | 482.6 mm × 266.7 mm × 266.7 mm |
| Weight | 7.5 kg |
Typical Applications
-
Power generation: Houses vibration and temperature monitoring modules for turbines and generators.
-
Oil & gas: Provides chassis for compressor and pump monitoring systems in upstream and downstream operations.
-
Chemical plants: Supports monitoring of agitators, mixers, and process pumps.
-
Water treatment facilities: Hosts monitoring modules for blowers and large pump systems.
-
Manufacturing automation: Integrates monitoring for motors, gearboxes, and conveyor systems.
Example: In a gas turbine installation, the 3500/05 rack holds vibration and speed monitoring modules, ensuring continuous protection and early fault detection for critical rotating machinery.
FAQ
Q1: What is the Bently Nevada 3500/05 used for?
A1: It is the system rack that houses and powers the 3500 series monitoring modules.
Q2: How many slots are available?
A2: The rack provides 14 module slots, including slots for power and communication modules.
Q3: Does it support redundancy?
A3: Yes, it supports dual redundant power supplies for high availability.
Q4: Is it compliant with industry standards?
A4: Yes, it meets API 670, CE, UL, and CSA certifications.
Q5: Which industries use this rack?
A5: It is widely applied in power generation, oil & gas, chemical, water treatment, and manufacturing automation.
