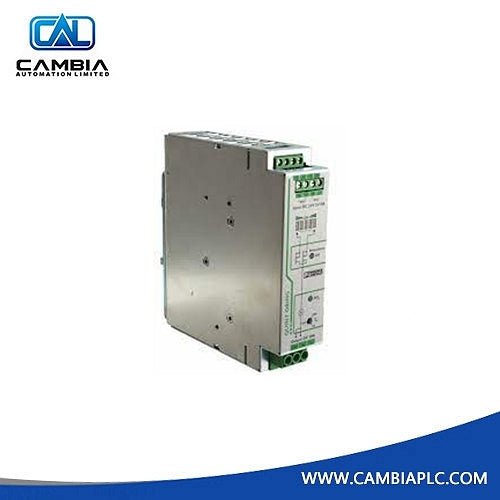

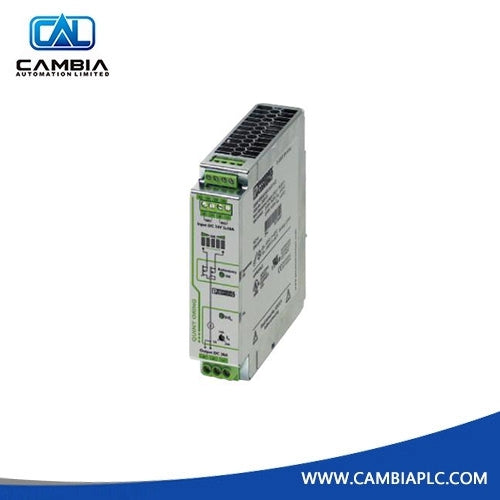

PHOENIX CONTACT QUINT-ORING/24DC/2X10/1X20 Redundancy Module with Protective Coating Brand New

PHOENIX CONTACT QUINT-ORING/24DC/2X10/1X20 Redundancy Module with Protective Coating Brand New

overview

The Auto Current Balancing ACB technology of the QUINT ORING modules doubles the service life of redundantly operated power supplies by evenly utilizing the power supply units. The load current is automatically distributed symmetrically.

Input Data

• Nominal input voltage range: 24 V DC

• Input voltage range: 18 V DC ... 28 V DC (SELV)

• Input voltage range DC: 18 V DC ... 28 V DC (SELV)

• Voltage type of supply voltage: DC

• Reverse polarity protection: < 60 V

• Nominal input current (IN): 2x 10 A (-25 °C ... 60 °C), 1x 20 A (-25 °C ... 60 °C)

• Maximum current Imax: 2x 15 A (-25 °C ... 40 °C), 1x 30 A (-25 °C ... 40 °C), 1x 120 A (12 ms, SFB Technology)

• Transient surge protection: Varistor

• Voltage drop, input/output: 0.1 V (IOUT = 20 A)

Output Data

• Efficiency: > 98 %

• Nominal output voltage: UIn - 0.1 V

• Nominal output current (IN): 20 A (Increasing power), 10 A (Redundancy)

• Static Boost (IStat.Boost): 1x 30 A

• Dynamic Boost (IDyn.Boost): 1x 40 A (5 s)

• Selective Fuse Breaking (ISFB): 1x 120 A (12 ms)

• Derating: 60 °C ... 70 °C (2.5 %/K)

• Protection against overvoltage at the output (OVP): < 32 V DC

• Power loss nominal load max.: 2 W (IOUT = 20 A)

Dimensions

• Width: 32 mm

• Height: 130 mm

• Depth: 125 mm

Ambient Conditions

• Degree of protection: IP20

• Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)

• Ambient temperature (storage/transport): -40 °C ... 85 °C

• Ambient temperature (start-up type tested): -40 °C

• Maximum altitude: 2000 m

• Climatic class: 3K22 (in accordance with EN 60721-3-3)

• Max. permissible relative humidity (operation): ≤ 100 % (at 25 °C, non-condensing)

• Shock: 18 ms, 30g, in each space direction (according to IEC 60068-2-27)

• Vibration (operation): < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6), 15 Hz ... 150 Hz, 2.3g tv = 90 min
