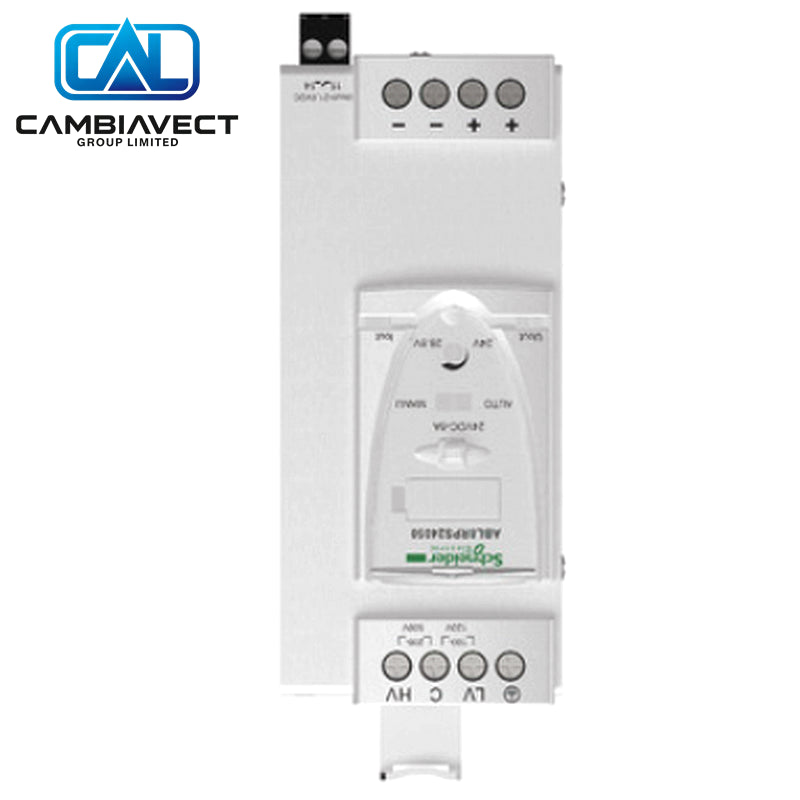

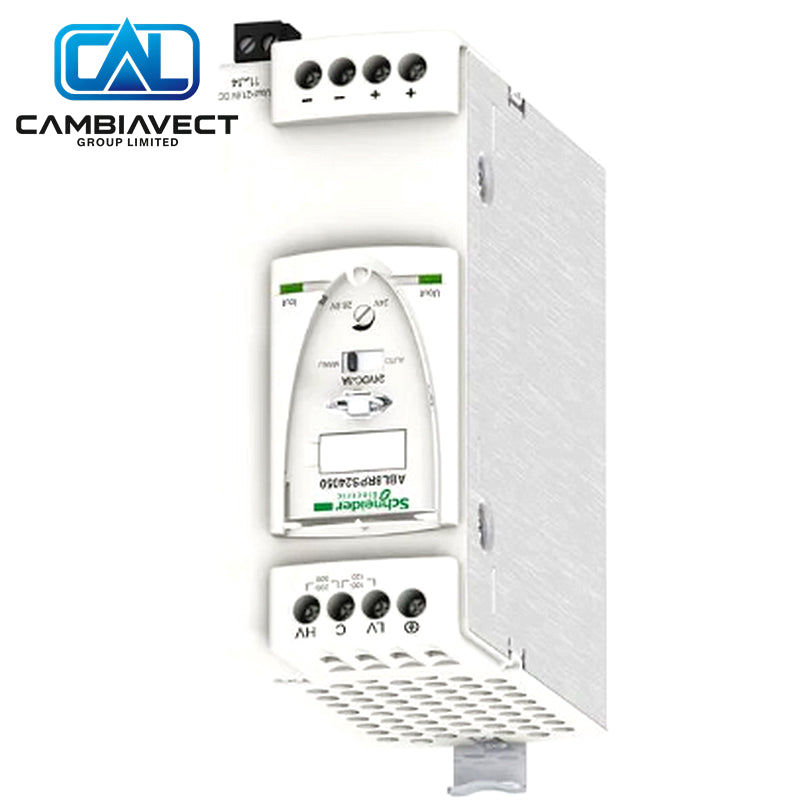

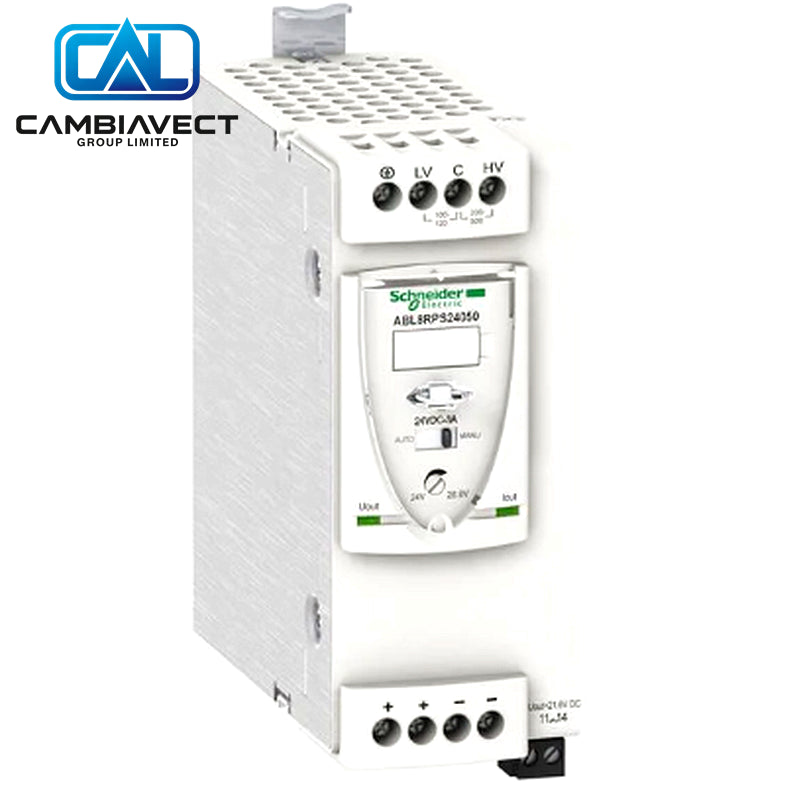

Phaseo 24V 5A Power Supply ABL8RPS24050 Schneider
Manufacturer: Schneider
Product No.: ABL8RPS24050
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Schneider ABL8RPS24050 is a regulated switch-mode power supply from the Phaseo ABL8 range. It delivers 24 V DC at 5 A (120 W) from a wide single-phase or phase-to-phase AC input.
Key Specs
- Input: 100–120 V AC single-phase or 200–500 V AC phase-to-phase
- Output: 24 V DC, 5 A (adjustable 24–28.8 V)
- Rated power: 120 W
- Efficiency: 87 %
- Temporary boost: 1.5 × In for 4 s
- Mounting: DIN rail
- Range: Phaseo ABL8
Why Choose This
- Wide input voltage range for flexible installation
- Regulated 24 V DC output with boost capability
- Built-in protection against overload, short-circuit and overvoltage
- Compact DIN-rail design
Common Questions
- Output rating? 24 V DC / 5 A.
- Input voltage? 100–120 V or 200–500 V AC.
- Mounting? DIN rail.
Mounting Steps
- Mount the supply on a 35 mm DIN rail.
- Connect AC input and protective earth according to the wiring diagram.
- Wire the 24 V DC output to the load, observing polarity.
- Adjust output voltage if required (24–28.8 V).
- Power up and verify output voltage under load.
Buying Advice
- Calculate total 24 V load including sensors and actuators.
- Confirm input voltage matches the available supply.
- Standard spare for Phaseo ABL8 installations.
