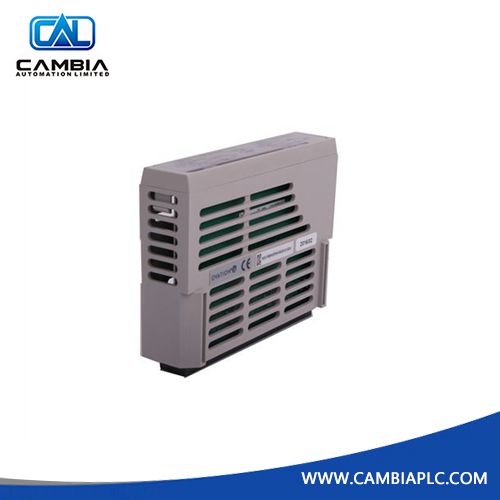

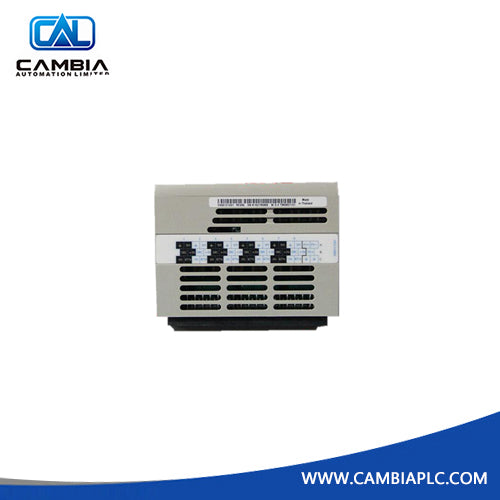

Ovation 5X00119G01 RTD Input 8 Channel Module
In stock, ready to ship
Manufacturer: Ovation
Product No.: 5X00119G01
Product Type: RTD Input 8 Channel Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The Emerson Ovation 5X00119G01 RTD Input Module is an 8-channel temperature input module designed for precise measurement and reliable operation in Ovation control systems. It works exclusively with the 5X00121G01 Personality Module, converting inputs for all supported RTD ranges. This pairing ensures accurate, noise-resistant, and stable signal acquisition in industrial automation environments.
Built for high performance, the module provides 12-bit resolution and 0.10% accuracy at 25°C. It supports both 50 Hz and 60 Hz sampling rates, automatically adjusting during lead resistance measurement. The module includes dielectric isolation between channels and logic circuits, enhancing system safety and reducing cross-channel interference.
With a compact design and low power consumption (3.6 W typical), the 5X00119G01 operates reliably in temperatures from 0 to 60°C. Its self-calibration function can be initiated on demand by the Ovation Controller to maintain long-term accuracy and signal consistency.
Technical Specifications
| Description | Value |
|---|---|
| Model | 5X00119G01 |
| Compatible Personality Module | 5X00121G01 |
| Number of Channels | 8 |
| Resolution | 12 bits |
| Accuracy (@25°C) | 0.10% |
| Sampling Rate (50 Hz) | 16.67 samples/sec (3/sec in 3-wire mode) |
| Sampling Rate (60 Hz) | 20 samples/sec (2/sec in 3-wire mode) |
| Self Calibration | On demand |
| Dielectric Isolation | Channel-to-channel: 200V AC/DC; Channel-to-logic: 1000V AC/DC |
| Input Impedance | 100 MΩ (active); 50 KΩ (power down) |
| Power Consumption | 3.6 W typical; 4.2 W max |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 0–95% (non-condensing) |
| Common Mode Rejection | 120 dB @ DC and nominal power line frequency ±0.5% |
| Normal Mode Rejection | 100 dB @ DC and nominal power line frequency ±0.5% |
