Honeywell

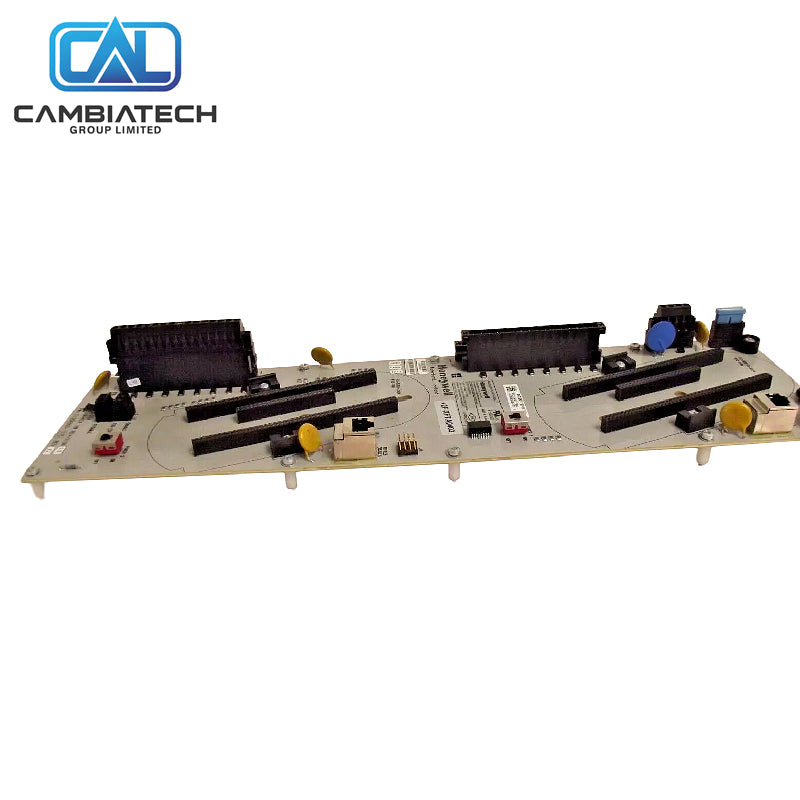

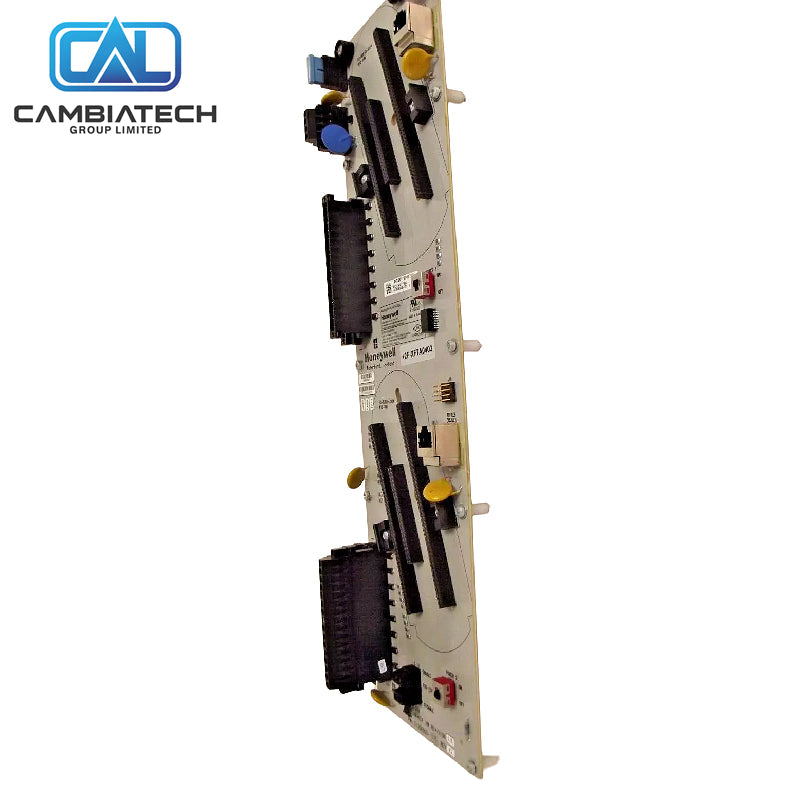

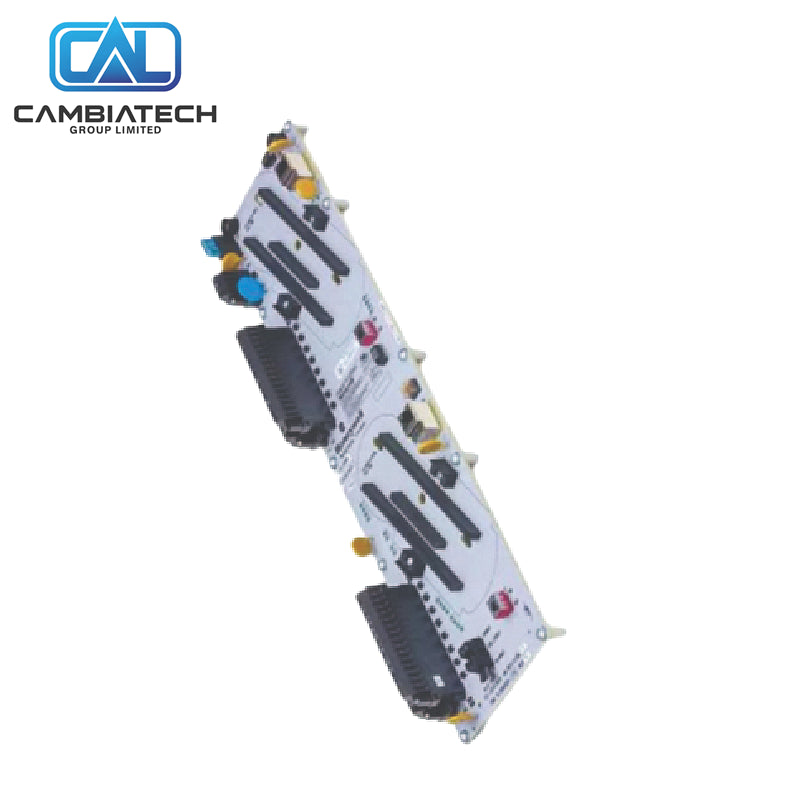

Non-Redundant IO Termination FC-IOTA-NR24 Honeywell
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-IOTA-NR24
Product Type: I/O Termination Assembly
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Honeywell FC-IOTA-NR24 is a non-redundant I/O termination assembly for Safety Manager systems. It supports one RUSIO-3224 or RUSLS-3224 module and provides 32 universal I/O channel connections.
Key Specs
- Type: Non-redundant I/O Termination Assembly
- Supports: 1 × RUSIO-3224 or RUSLS-3224
- I/O channels: 32 universal
- Supply voltage: 24 VDC (-15% to +30%)
- Max supply load: 10 A
- Operating temperature: -40 °C to +70 °C
- Ethernet: Dual RJ45 (100 MB)
Why Choose This
- SIL 3 capable per IEC 61508/61511
- Four V+ connections for active AI devices
- Reverse polarity protection with fuse
- Compact design for Safety Manager cabinets
Common Questions
- Redundant or non-redundant? Non-redundant (NR).
- How many channels? 32 universal I/O.
- Power rating? 24 VDC, max 10 A.
Mounting Steps
- Mount the IOTA on the carrier or designated position.
- Connect 24 VDC supply and ground terminals.
- Insert the RUSIO or RUSLS module.
- Wire the 32 I/O channels and Ethernet if required.
- Verify power and communication status.
Buying Advice
- Select for non-redundant universal I/O termination.
- Confirm module compatibility (RUSIO-3224 / RUSLS-3224).
- Ideal spare for Safety Manager systems.
