NEW SEALED GE FANUC IC697MDL653H LOGIC INPUT MODULE

“Cambia Automation Limited”

100% New · Authentic · High quality

Product Description

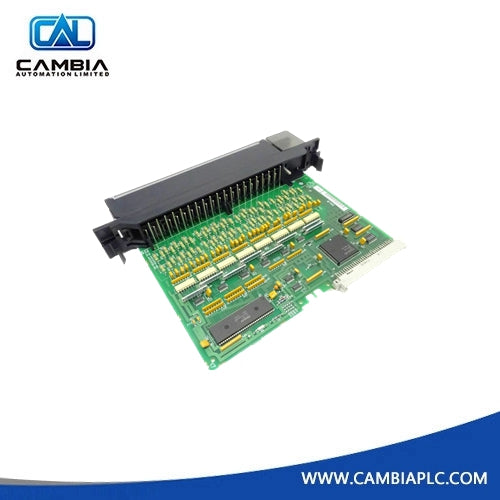

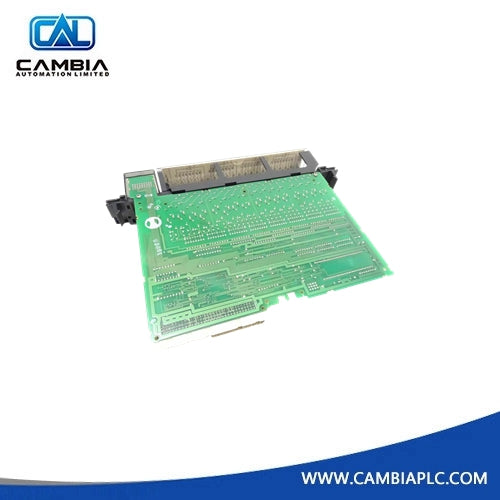

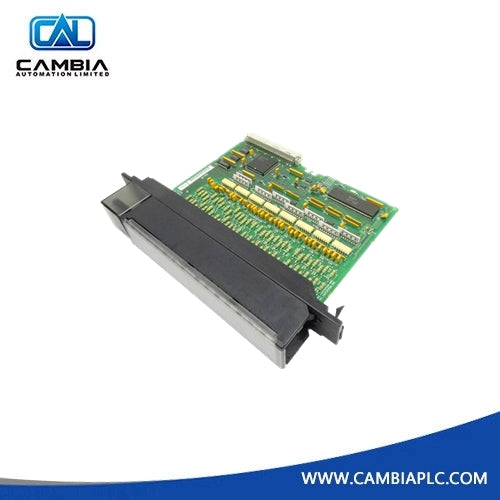

The IC697MDL653 is a Positive / Negative Logic Input Module with 32 points. This 24 VDC module is manufactured by GE for the 90-70 Series. Its 32 input points are arranged in four isolated sets comprised of eight points.

Additional features of the IC697MDL653 include Positive/Negative Logic and proximity switch compatibility, a selectable input filter, and a single input configured as an interrupt. These features are common in all IC697 PLCs. The features may, however, not be applicable when IC697MDL653 is coupled with other types of PLCs. The IC697MDL653 module also comes equipped with LED indicators on its faceplate to alert the user to the module’s status. These LEDs indicate the on/off status of each point on the PLC side of the circuit.

Conveniently, the module’s input/output references can easily be configured by the user without the use of jumpers or DIP switches. The IC697MDL653 is designed to have both positive and negative logic characteristics; thus it is able to source current from the input device to the common user. The applicable input device is connected to the power bus and the module input. The following input devices are all compatible with the IC697MDL653: pushbuttons, limit switches, selector switches, and electronic proximity switches including 2-wire and 3-wire types.

Ideally, inputs on this module are driven by any IC697 PLC voltage compatible output module. The input circuit provides enough current to ensure that the device functions reliably. The input current is typically 10mA in the ON state and can accept 2 mA leakage current in the OFF state without turning on.

Other Available Revisions for the IC697MDL653

IC697MDL653A

IC697MDL653B

IC697MDL653C

IC697MDL653-CA

IC697MDL653D

IC697MDL653E

IC697MDL653F

IC697MDL653G

IC697MDL653H

IC697MDL653I

IC697MDL653J

IC697MDL653K

IC697MDL653L

IC697MDL653-LT

IC697MDL653M

IC697MDL653N

IC697MDL653O

IC697MDL653P

IC697MDL653-RR
