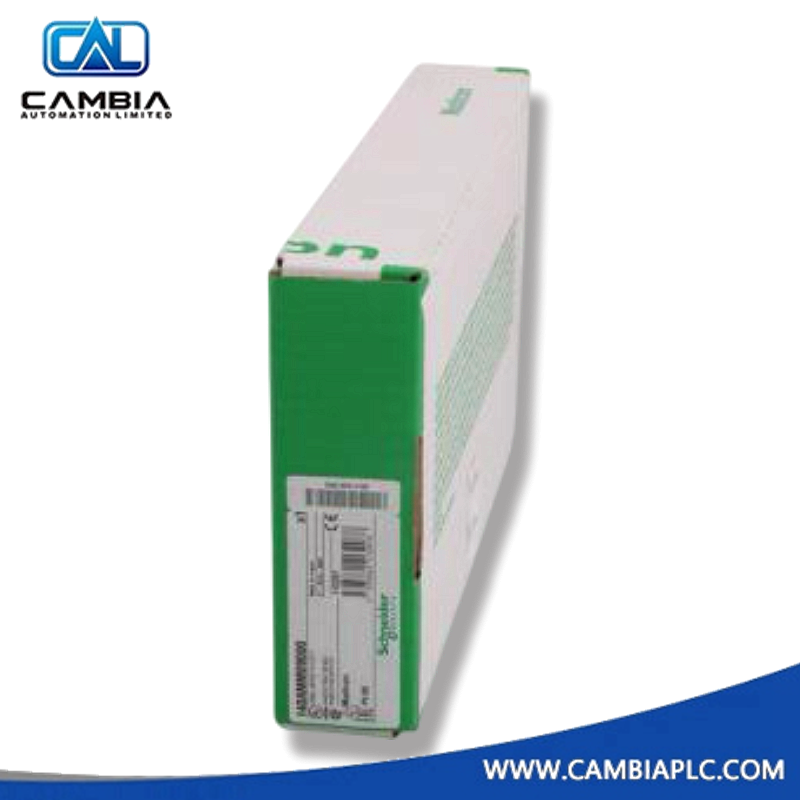

New Schneider 140AMM09000 Analog Input/Output Module
In stock, ready to ship
Manufacturer: Schneider
Product No.: 140AMM09000
Product Type: Analog I/O
Product Origin: France
Payment: T/T
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The 140AMM09000 is a high-level analog input/output module designed for the Modicon Quantum automation platform. It features 4 analog inputs and 2 analog outputs, supporting a wide range of voltage and current signal types. This module is suitable for industrial applications requiring precise analog signal acquisition and control, such as process instrumentation, flow measurement, and actuator control.
Technical Specifications
- Manufacturer: Schneider Electric
- Brand: Modicon Quantum
- Catalog Number: 140AMM09000
- Product Type: Analog Input/Output Module
- Analog Input Channels: 4
- Analog Output Channels: 2
- Input Signal Types: Bipolar/Unipolar Voltage and Current
- Input Ranges: ±10 V, ±5 V, ±20 mA, 0–10 V, 0–5 V, 0–20 mA, 4–20 mA
- Input Resolution: 14–16 bits depending on range
- Input Impedance: >10 MΩ (voltage), >250 Ω (current)
- Output Signal Type: 4–20 mA
- Output Resolution: 12 bits
- Output Loop Voltage: 7–30 V DC
- Isolation: 750 V DC / 500 V AC for 1 minute
- Filter Type: Single pole low-pass, 3 dB @ 21 Hz ±20%
- Update Time: 320 ms (input), 15 ms (output)
- Setting Time: 900 µs to ±0.1% of final value
- Accuracy: ±0.004% to ±0.20% of full scale (temperature dependent)
- Common Mode Rejection: >80 dB @ 50/60 Hz
- Fault Detection: Open circuit, status byte
- Addressing Requirement: 5 input words, 2 output words
- Local Signaling: 6 green LEDs (channel active), 6 red LEDs (fault), 1 green (bus active), 1 red (external fault)
- Bus Current Requirement: 350 mA
Dimensions and Weight
- Module Format: Standard Quantum slot size
- Mounting Type: Quantum rack-mounted
- Cooling Method: Passive (natural convection)
Ordering Information
- Catalog Number: 140AMM09000
- Manufacturer: Schneider Electric
- Brand: Modicon Quantum
Product Questions
Q: What signal types are supported by the 140AMM09000?
A: It supports both bipolar and unipolar voltage and current signals, including ±10 V, ±5 V, ±20 mA, 0–10 V, 0–5 V, 0–20 mA, and 4–20 mA.
Q: What is the resolution of the analog inputs and outputs?
A: Input resolution ranges from 14 to 16 bits depending on the signal type; output resolution is 12 bits.
Q: Is the module hot-swappable?
A: No. It must be installed or removed with system power off.
Q: What isolation features does the module provide?
A: It offers 750 V DC / 500 V AC isolation between channels and between channels and bus for 1 minute.
