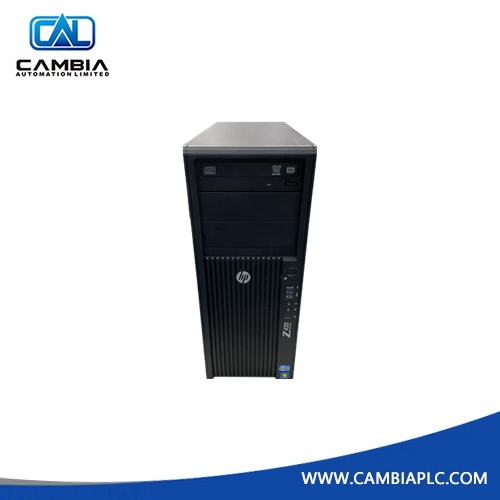

New Foxboro H92 Workstation
FoxboroH92
overview
The Model H92 workstation can be used with Foxboro Evo™ Control Core Services software and Foxboro Evo Control Software, and can also provide a platform for Foxboro®, third-party, and user-written applications.
As a multipurpose workstation running the Windows 7 64-bit operating system, the H92 workstation supports execution of system applications, data communications for a broad range of applications, file serving capabilities, and display of graphics and text. It also interfaces with corporate networks at a local or worldwide level.
The workstation supports a mouse or optional trackball, an alphanumeric keyboard, up to four USB annunciator or annunciator/numeric keyboards, and one to four monitors.
Feature
Host Foxboro Evo control stations
Support data communications to directly connected process I/O devices
Serve as an application platform
Serve as a Human-Machine Interface (HMI) station
Function on Ethernet control systems
Specifications
Processor Specifications:
Height: 431 mm (17.0 in)
Width: 168.91 mm (6.65 in)
Depth: 444.7 mm (17.5 in), measured to the rear of the service panel
Mounting:
Tabletop, Metal Enclosure (1000x1000 mm) or Modular Industrial Enclosure (MIC), 4U rack dimensions
Weight:
Minimum: 11.0 kg (24.3 lbs.)
Standard: 13.5 kg (29.8 lbs.)
Maximum: 17.5 kg (38.5 lbs.)
Heat Dissipation:
525 WATTS WIDE-RANGING, ACTIVE POWER FACTOR CORRECTION, 85% EFFICIENT POWER SUPPLY
Typical:1311 btu/hr (330 kg-cal/hr)
Maximum: 2185 btu/hr (551 kg-cal/hr)
