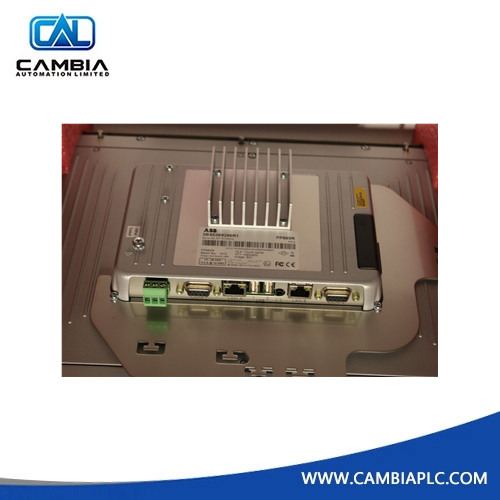

New ABB PP885R 3BSE069296R1 Touch Panel

New ABB PP885R 3BSE069296R1 Touch Panel

ABB PP885R 3BSE069296R1

• Panel:PP885R

• Article number:3BSE069296R1

• Display size:15.4"

• Display resolution, ratio:1280 x 800 (16:10)

• Display colors:TFT Color LCD with 16.7 million colors LED backlight

• Brightness (cd/m2):450

• View angle (H/V):160/140

• Dimming:Maritime optimized to less than 1 cd/m2

• Interaction type:Resistive touch, 5 million finger touch operations

• Processor:1.0 GHz Intel® Atom™

• Main memory:1 GB

• Application memory:3,5 GB (SLC)

• External storage media:1 × SD card slot (or SDHC with latest image loaded)

• Realtime clock:Yes

• Ethernet (shielded RJ 45):1 × 10/100 Base-T, 1 × 10/100/1000 Base-T

• USB:3 × USB Host 2.0, max 500mA

• Serial port:1 × RS232, 1 × RS422/485 (isolated)

• Dimension W×H×D (mm):410 × 286 × 83

• Cut-out dimension W×H(mm):394 × 270

• Mounting depth mm:76 (176)

• Mounting:Panel Mount and VESA 75 × 75

• Net weight (kg):1.4 4.7

• Frame material, front foil:Gray powder-coated aluminum, polyester Autoflex EB

• Power supply:12 or 24 VDC (10-32 VDC)

• Power consumption:28 W typical @ 24 VDC

• Protection (front/rear):IP66, NEMA 4X / IP20

• Operating temperature:-30 to +70 °C

• Relative operating humidity:5-85% non-condensing

• Storage temperature:-40 to +85 °C

• Vibration/shock:4 G / 40 G

• CE: EN61000-6-4, EN61000-6-2

• UL/cUL 61010-2-201 (replacement for UL 508), UL50E Type 4X outdoor

• DNV, GL, ABS, LR

• Hazardous Location: Ul/cUL 12.12.01 (UL1604 replacement) Class I Div 2, ATEX (Zone 2), IECEx Ex nA IIC Gc,

• IEC 60079-0 and IEC 60079-15

• RoHS compliance: EN 50581:2012

• WEEE compliance: DIRECTIVE/2012/19/EU
