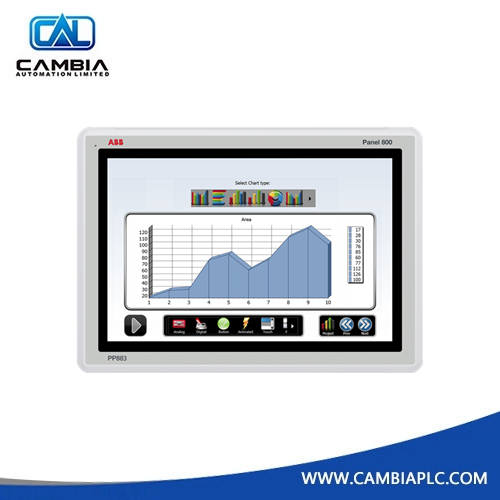

New ABB PP883 Touchscreen panel

New ABB PP883 Touchscreen panel

ABBPP883

• Article number: 3BSE092979R1

• Category: Standard

• Display type: Touch

• Display size: 12.1"

• Brightness: 400 cd/m²

• Display resolution, ratio: 1280 x 800 pixels

• Processor: ARM9 (1 GHz)

• Main memory: 1 GB

• External storage media: 2 GB SSD, 1.5 GB free for application storage

• Dimension WxHxD (mm): 340 x 242 x 57 mm

• Power supply: + 24 V DC (18 to 32 VDC)

• Operating temperature: -10 °C to +60 °C

• Power consumption: 28.8 W

• Protection (front/rear): Front IP65, NEMA 4X/12 and UL Type 4X/12. Rear IP20

• Relative operating humidity: 5% – 85% non-condensed

• Storage temperature: -20°C to +70°C

• Vibration and shock: 1 G / 15 G

• CE-marking: CE, FCC, KCC

• UL: UL 61010-2-201

• Marine: DNV, KR, GL, LR, ABS, CCS

• Hazardous: No

• Weight: 2.6 kg

• Dimensions (W×H×D): 340 x 242 x 57 mm

• Cut-out dimensions (W×H): 324 x 226 mm

• Mounting depth (Including clearance): 49 mm (149 mm)

• Mounting: Panel Mount, VESA 75 x 75

Trixie

86-135-9950-7613

Trixie@cambia.cn

…… …… …… …… …… …… …… ……∞’

Can transport to the world.

Brand New.

1-Year-Warranty.

Fast Delivery.

24 hours to receive mail reply.
