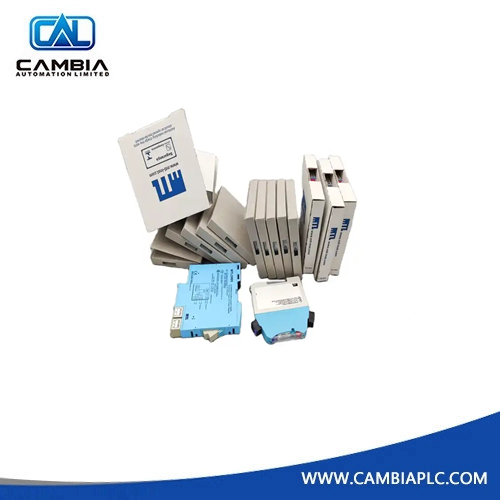

MTL Instruments MTL4516 Switch / Proximity Detector Interface
MTL Instruments MTL4516 Switch / Proximity Detector Interface

MTL

MTL Instruments MTL4516 Switch / Proximity Detector Interface

In stock, ready to ship

  • Manufacturer: MTL

  • Product No.: MTL4516

  • Product Origin: USA

  • Payment: T/T

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

MTL Instruments MTL4516 Switch / Proximity Detector Interface

MTL5045 (2)MTL5516cMTL5514_MTL5045

MTL4516 click good price!

  • Manufacturer : MTL Instruments

  • Product No. : MTL4516

  • Product Type : Switch / Proximity Detector Interface

  • Number of channels : Two

  • Location of switches

    Zone 0, IIC, T6 hazardous area

    Div. 1, Group A hazardous location

  • Location of proximity detector

    Zone 0, IIC, T4–6 hazardous area if suitably certified

    Div. 1, Group A hazardous location

  • Hazardous-area inputs

    Inputs conforming to BS EN60947–5–6:2001 standards for proximity detectors (NAMUR)

  • Voltage applied to sensor : 7 to 9V dc from 1k? ±10%

  • Input/output characteristics

    • Normal phase

      Outputs closed if input > 2.1mA (< 2k? in input circuit)

      Outputs open if input < 1.2mA (> 10k? in input circuit)

    • Hysteresis : 200µA (650?) nomina

  • Line fault detection (LFD) (when selected)

    User-selectable via switches on the side of the unit. Line faults are indicated by an LED for each channel. The channel output relay is de-energised if an input line fault is detected.

    Open-circuit alarm on if Iin < 50µA

    Open-circuit alarm off if Iin > 250µA

    Short-circuit alarm on if Rin < 100?

    Short-circuit alarm off if Rin > 360?

  • Safe-area output : Two single-pole relays with changeover contacts

  • Maximum current consumption : 35mA at 24V

  • Power dissipation within unit : 0.84W at 24V

  • LED indicators

    Green: power indication

    Yellow: two: channel status, on when output energised

    Red: two: LFD indication, on when line fault detected

  • Safety description (each channel) : Uo=10.5V Io=14mA Po=37mW Um = 253V rms or dc
