MTL | 8123-PL-QU | Pulse & Quadrature Input Module PAC8000
Manufacturer: Emerson
Product No.: 8123-PL-QU
Product Type: Pulse / Quadrature Input Module
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

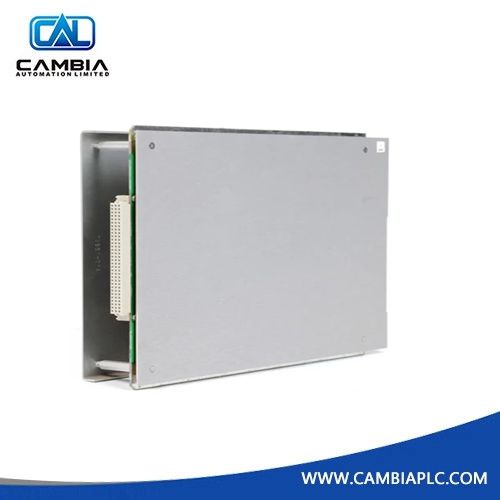

The MTL 8123-PL-QU is a 2-channel pulse and quadrature input module for the PAC8000 I/O system. It captures high-speed pulse signals and quadrature encoder inputs from flow meters, proximity sensors and rotary encoders for precise monitoring and control.
Key Specs
- Channels: 2 pulse inputs or 1 quadrature input
- Frequency: 1 Hz to 50 kHz (approx. 12.5 kHz in quadrature mode)
- Sensor types: NAMUR, current pulse, voltage pulse, switch
- Input voltage: 0–24 V DC (max 50 V DC class)
- Accuracy: ±0.05% of span @ 25 °C class
- System: MTL / Emerson PAC8000
Why Choose This
- High-speed pulse and encoder counting
- Supports multiple sensor types
- Suitable for hazardous-area installations
- Compact PAC8000 module form factor
Common Questions
- Channels? 2 pulse or 1 quadrature.
- Max frequency? 50 kHz class.
- System? PAC8000.
Mounting Steps
- Install the module on the PAC8000 carrier.
- Snap on the matching field terminal.
- Wire the pulse or encoder field devices.
- Configure channel mode and scaling in the system.
- Verify count values and diagnostics.
Buying Advice
- Select for flow, speed or position pulse applications.
- Confirm sensor type and frequency requirements.
- Useful spare for PAC8000 high-speed input positions.
