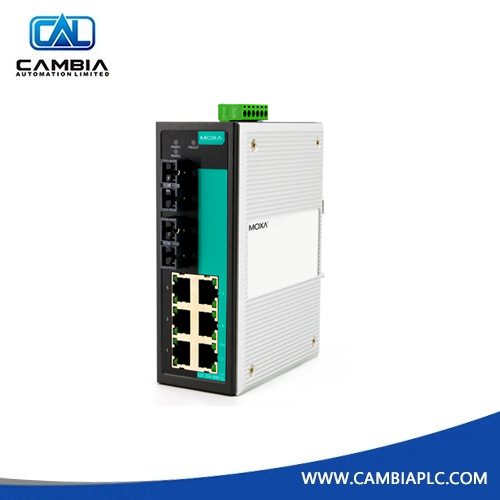

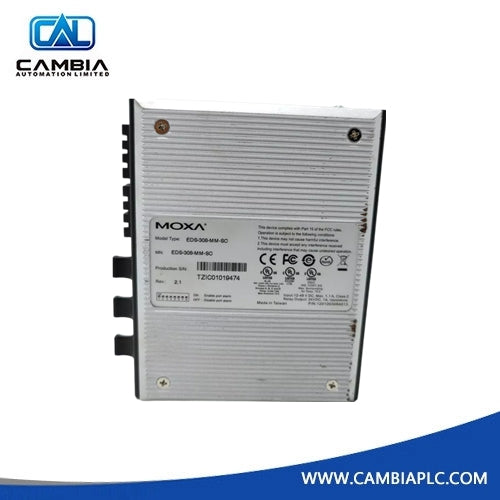

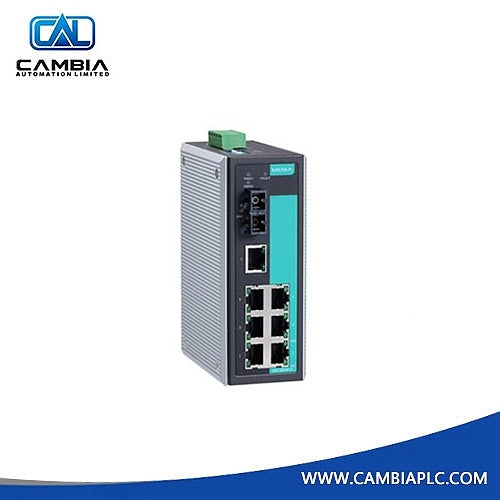

MOXA EDS-308-MM-SC Unmanaged Ethernet Switch Brand New

MOXA EDS-308-MM-SC Unmanaged Ethernet Switch Brand New

overview

Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, relay output warning, 0 to 60°C operating temperature

Data

Input/Output Interface:

• Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface:

• 10/100BaseT(X) Ports (RJ45 connector): 6

• Auto Negotiation Speed: Yes

• Full/Half Duplex Mode: Yes

• Auto MDI/MDI-X Connection: Yes

• 100BaseFX Ports (multi-mode SC connector): 2

• Standards:

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • IEEE 802.3x for Flow Control

DIP Switch Configuration:

• Ethernet Interface: Port break alarm

Switch Properties:

• MAC Table Size: 2 Kbits

• Packet Buffer Size: 768 K

• Processing Type: Store and Forward

Power Parameters:

• Input Current: 0.15 A @ 24 VDC

• Connection: 1 removable 6-contact terminal block(s)

• Operating Voltage: 9.6 to 60 VDC

• Input Voltage: 12/24/48 VDC

• Redundant Dual Inputs: Yes

• Reverse Polarity Protection: Supported

• Overload Current Protection: Supported

Physical Characteristics:

• Housing: Metal

• IP Rating: IP30

• Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

• Weight: 790 g (1.75 lb)

• Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits:

• Operating Temperature: -10 to 60°C (14 to 140°F)

• Storage Temperature (Package Included): -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity: 5 to 95% (non-condensing)

Features

• Redundant dual 24 VDC power inputs

• Relay output warning for power failure and port break alarm

• Broadcast storm protection

• Transparent transmission of VLAN tagged packets

• -40 to 75˚C operating temperature range (T models)
