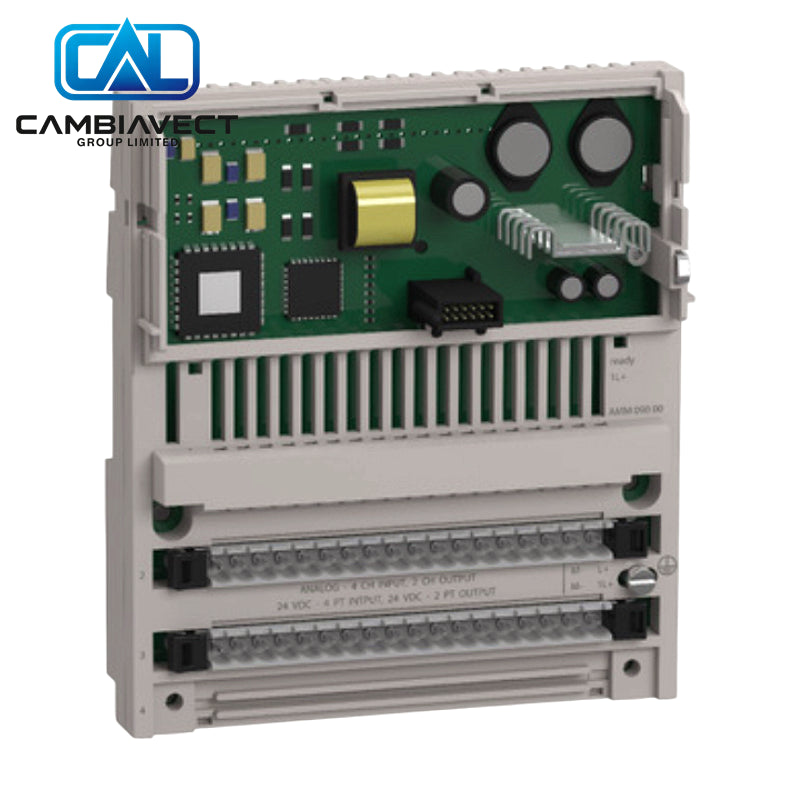

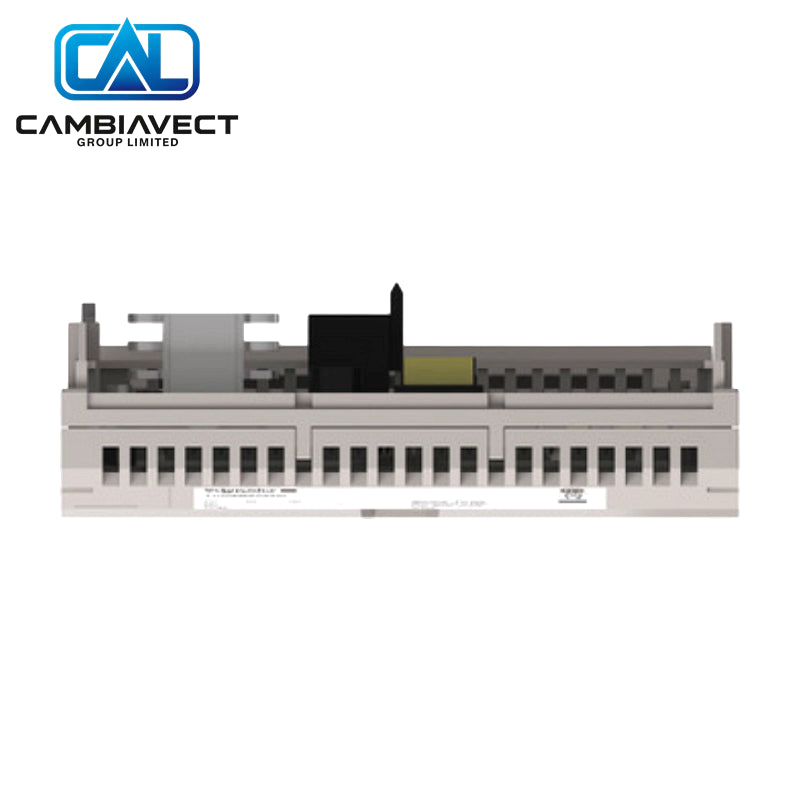

Momentum Mixed Analog Discrete I/O 170ANR12091 Schneider
In stock, ready to ship
Manufacturer: Schneider
Product No.: 170ANR12091
Product Type: Analog/Discrete I/O Base
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider 170ANR12091 is a distributed mixed I/O base for the Modicon Momentum platform. It combines 8 discrete inputs, 8 discrete outputs, 6 analog inputs (±10 V) and 4 analog outputs (±10 V) in a single compact unit.
Key Specs
- Discrete inputs: 8 × 24 V DC
- Discrete outputs: 8 × transistor (0.25 A per point)
- Analog inputs: 6 × ±10 V (14-bit)
- Analog outputs: 4 × ±10 V (14-bit)
- Supply: 24 V DC
- Current consumption: 400 mA
- Platform: Modicon Momentum
Why Choose This
- High channel density in one Momentum base
- Mixed analog and discrete signals for compact machines
- Built-in protection on discrete outputs
- Direct mounting with communication adapters
Common Questions
- Analog range? ±10 V for both inputs and outputs.
- Discrete channels? 8 inputs + 8 outputs.
- Platform? Modicon Momentum.
Mounting Steps
- Mount the base on DIN rail or Momentum adapter.
- Connect 24 V DC supply and field wiring via terminal blocks.
- Attach the required communication adapter.
- Configure I/O mapping in the control software.
- Power up and verify channel status.
Buying Advice
- Ideal for distributed mixed-signal applications on Momentum networks.
- Confirm analog signal levels match ±10 V range.
- Keep as a versatile spare for Momentum I/O expansion.
