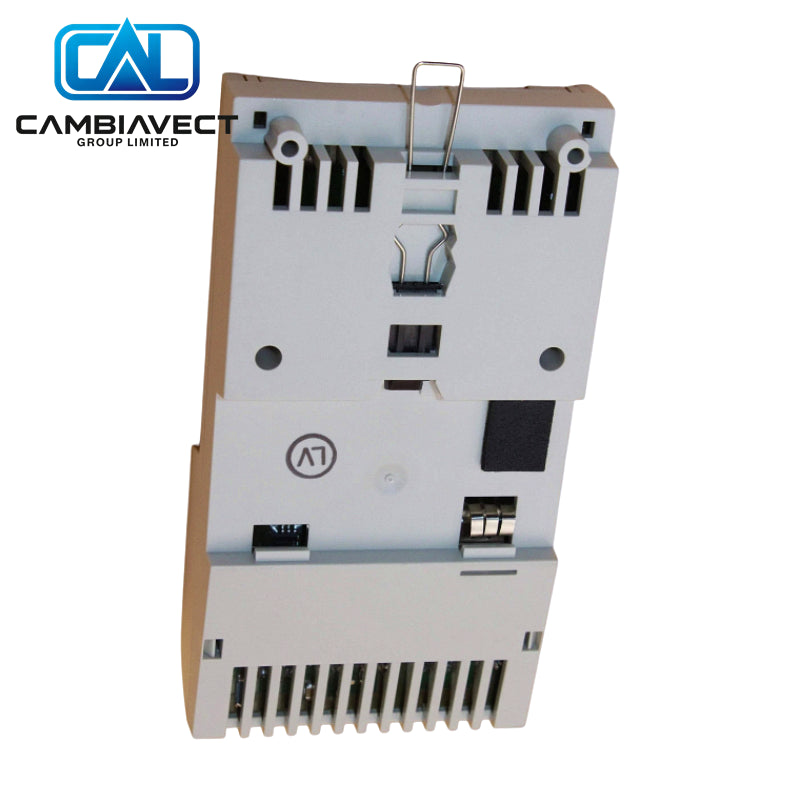

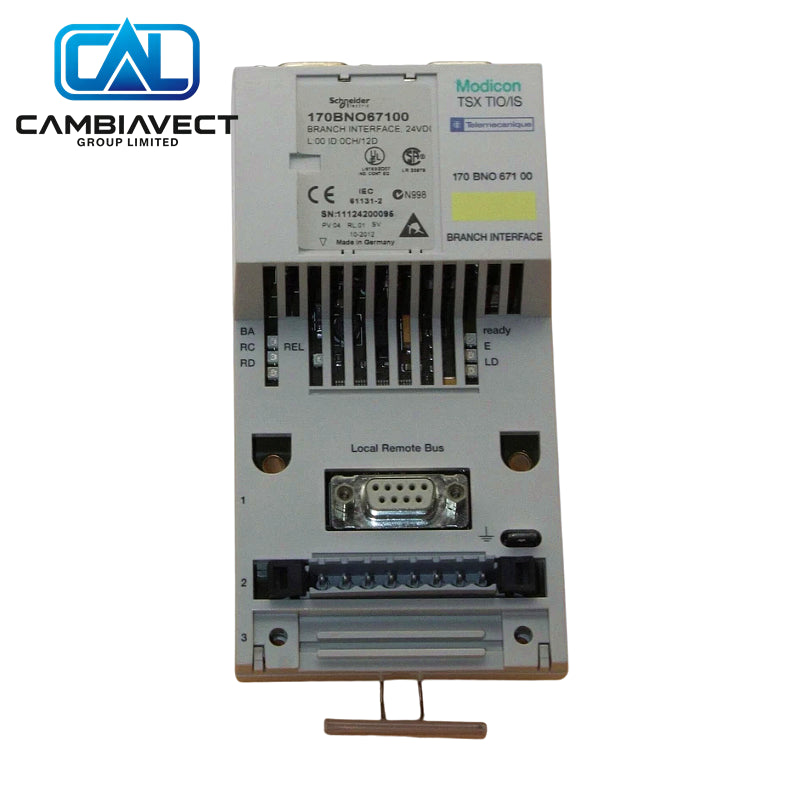

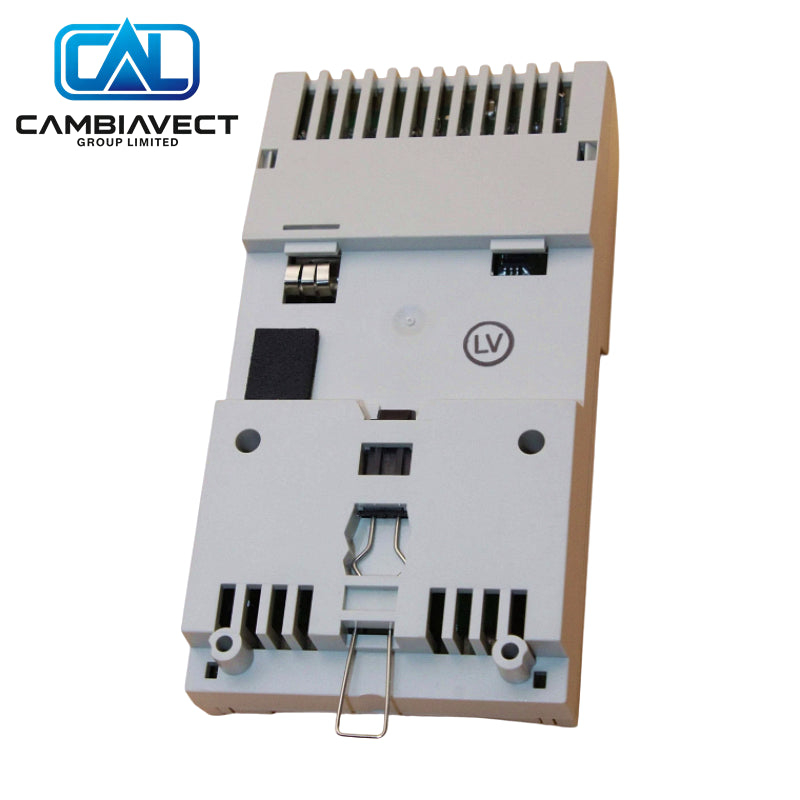

Momentum Interbus Branch Interface 170BNO67100 Schneider
Manufacturer: Schneider
Product No.: 170BNO67100
Product Type: Branch Interface
Product Origin: USA
Payment: T/T
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric 170BNO67100 is an Interbus branch interface for the Modicon Momentum platform. It provides RS485 incoming and outgoing remote-bus connections for Interbus SUPI 2 networks, enabling branch or segment distribution of Momentum I/O.
Key Specs
- Platform: Modicon Momentum
- Type: Interbus branch interface
- Protocol: Interbus generation SUPI 2
- Supply: 24 V DC
- Current consumption: Approx. 100 mA
- Ports: 1× RJ45 incoming + 1× RJ45 outgoing remote bus (RS485)
- Additional: 8-pin terminal block
- Power dissipation: Approx. 2.5 W
Why Choose This
- Enables Interbus remote-bus branching for Momentum stations
- Standard RJ45 RS485 connections for incoming/outgoing segments
- LED diagnostics for voltage and status
- Compact accessory for distributed Interbus topologies
Common Questions
- Type? Interbus branch interface.
- Protocol? Interbus SUPI 2.
- Platform? Modicon Momentum.
Mounting Steps
- Mount the interface on the compatible Momentum base or enclosure.
- Connect incoming and outgoing Interbus remote-bus cables to the RJ45 ports.
- Wire the 24 V DC supply and any required terminal connections.
- Power up and verify OK and status LEDs.
- Confirm remote-bus communication with the Interbus master.
Buying Advice
- Confirm Interbus SUPI 2 compatibility with the existing network.
- Use correct RS485 cabling and termination practice.
- Useful spare for Momentum Interbus branch positions.
