Schneider

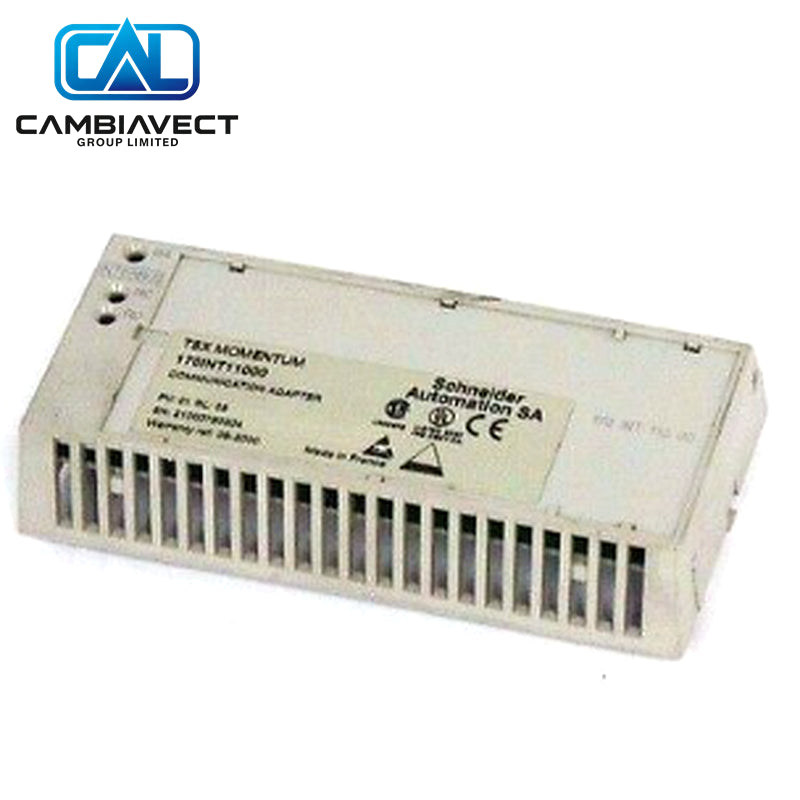

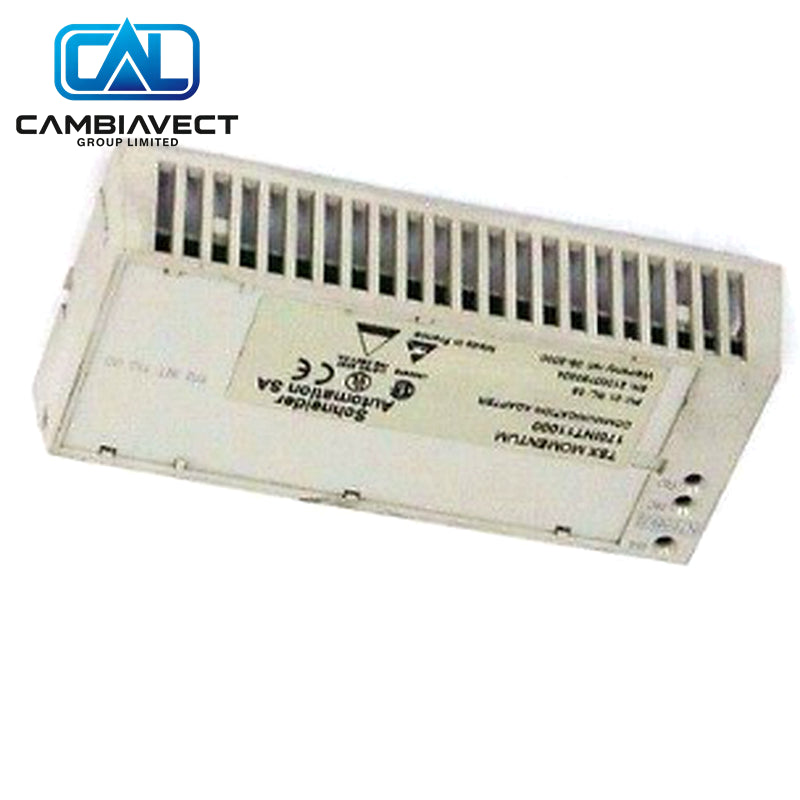

Momentum Interbus Adapter 170INT11000 Schneider
Manufacturer: Schneider
Product No.: 170INT11000
Product Type: Communication Adapter
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric 170INT11000 is an Interbus communication adapter for the Modicon Momentum I/O platform. It connects Momentum bases to an Interbus ring network at 500 kbit/s for distributed discrete and analog I/O.
Key Specs
- Platform: Modicon Momentum
- Protocol: Interbus (SUPI class)
- Transmission rate: 500 kbit/s
- Topology: Ring
- Connectors: 2× 9-pin D-SUB
- Cable: Twisted pair
- Protection: IP20
- Operating temperature: 0–60 °C
Why Choose This
- Integrates Momentum I/O into Interbus networks
- Ring topology for reliable fieldbus communication
- Compact adapter form factor
- Status LEDs for bus enable and remote bus diagnostics
Common Questions
- Protocol? Interbus.
- Speed? 500 kbit/s.
- Platform? Modicon Momentum.
Mounting Steps
- Mount the adapter on the Momentum I/O base.
- Connect the Interbus ring cables to the two D-SUB connectors.
- Ensure proper ring continuity and termination practice.
- Power up and verify bus enable and remote bus status LEDs.
- Configure the slave in the Interbus master project.
Buying Advice
- Confirm Momentum base compatibility.
- Use correct Interbus cable and follow ring wiring rules.
- Useful spare for Momentum Interbus installations.
