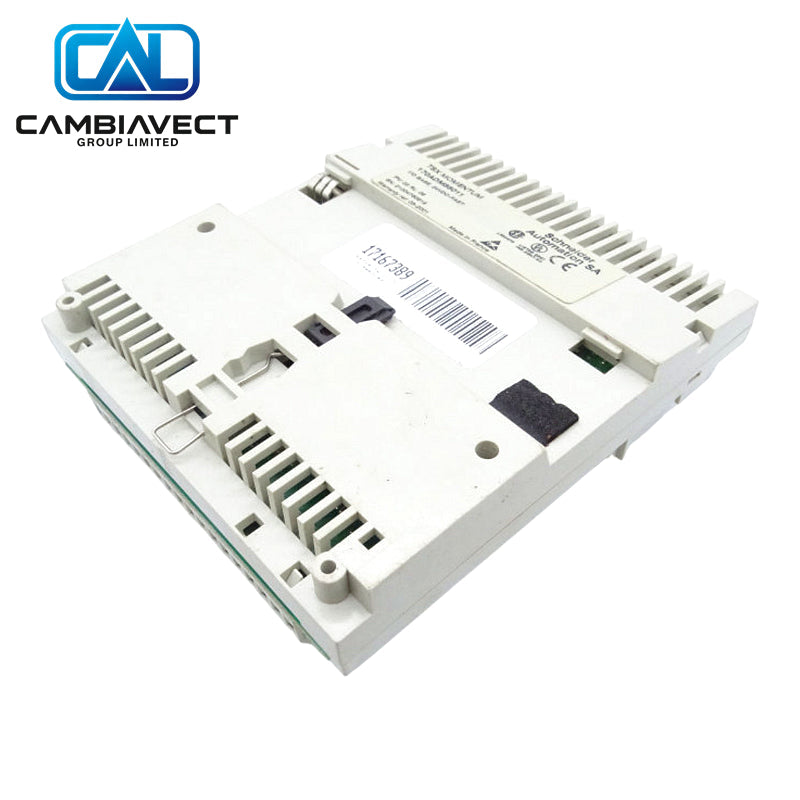

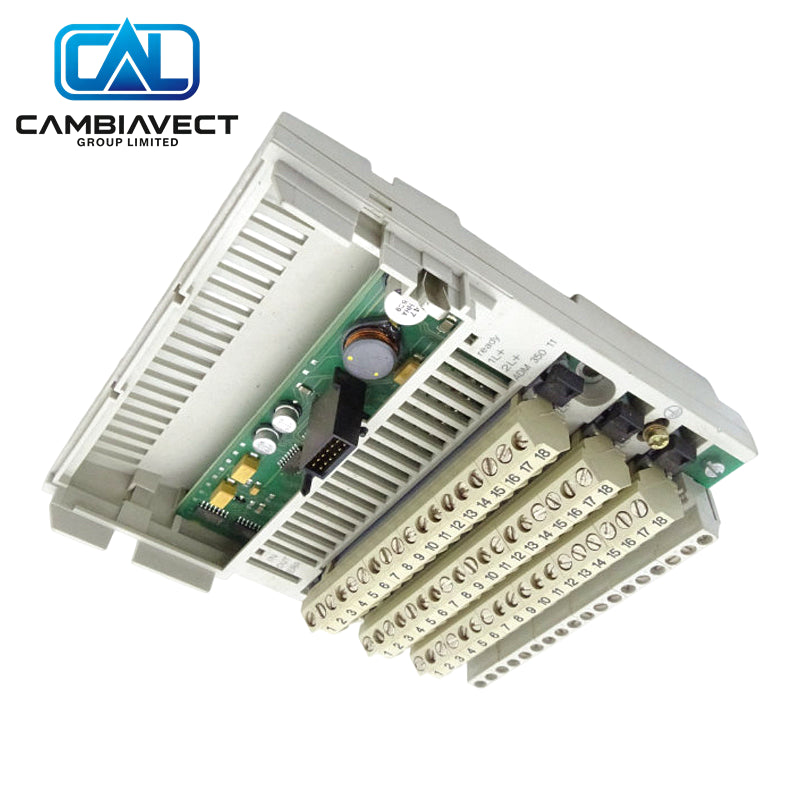

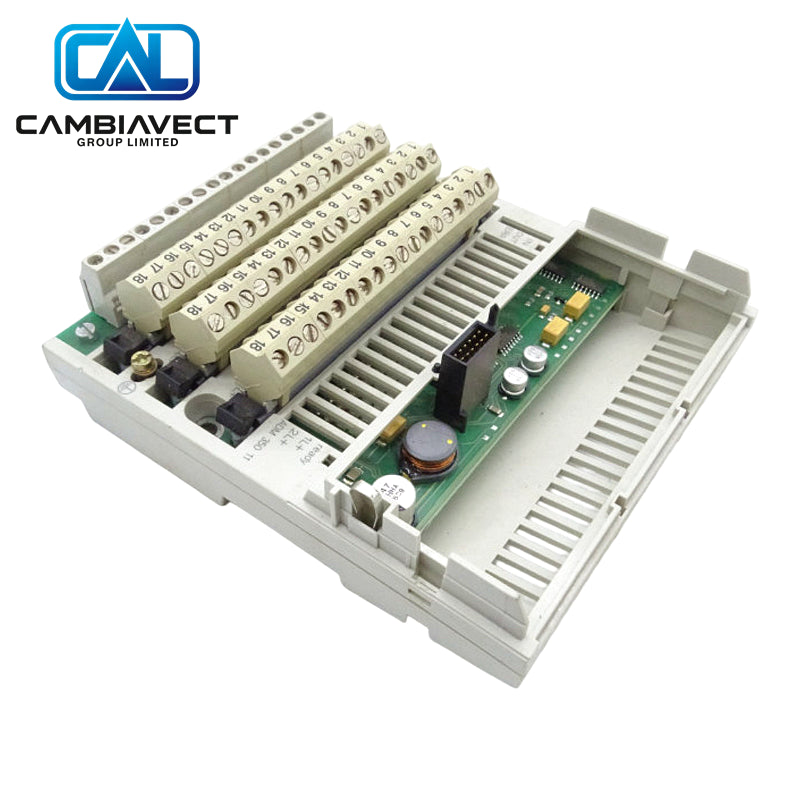

Momentum 16IN 16OUT Solid State 170ADM35011 Schneider
Manufacturer: Schneider
Product No.: 170ADM35011
Product Type: Discrete I/O Module
Product Origin: USA
Payment: T/T
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider 170ADM35011 is a discrete solid-state I/O base for the Modicon Momentum platform. It provides 16 positive-logic 24 V DC inputs and 16 solid-state outputs.
Key Specs
- Inputs: 16 × 24 V DC (positive logic)
- Outputs: 16 × solid-state switch (≤ 30 V DC)
- Output current: 0.5 A per point, 4 A per group, 8 A per module
- Supply: 24 V DC
- Current consumption: 250 mA at 24 V DC
- Platform: Modicon Momentum
Why Choose This
- High-density 16+16 discrete I/O in one base
- Solid-state outputs for fast switching
- Built-in overload detection on outputs
- Standard Momentum distributed I/O format
Common Questions
- Input/output count? 16 inputs + 16 outputs.
- Output type? Solid-state (transistor).
- Platform? Modicon Momentum.
Mounting Steps
- Mount the base on DIN rail or Momentum adapter.
- Connect 24 V DC supply and field discrete signals.
- Attach the required communication adapter.
- Configure I/O mapping in the control software.
- Power up and verify channel status.
Buying Advice
- Confirm total output load stays within group and module limits.
- Match input voltage and sensor type to 24 V DC positive logic.
- Common spare for Momentum discrete I/O expansion.
