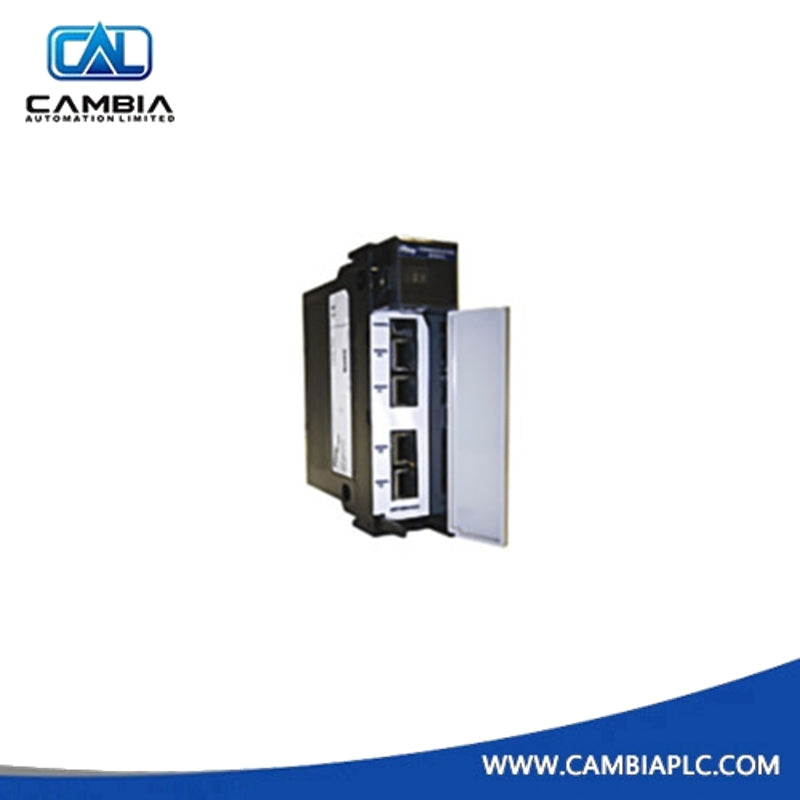

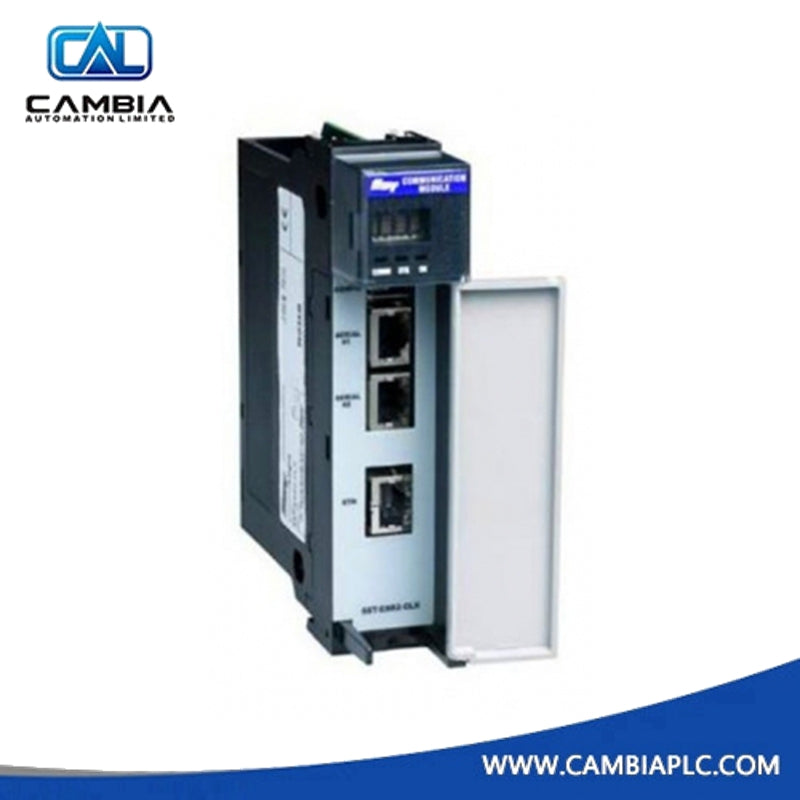

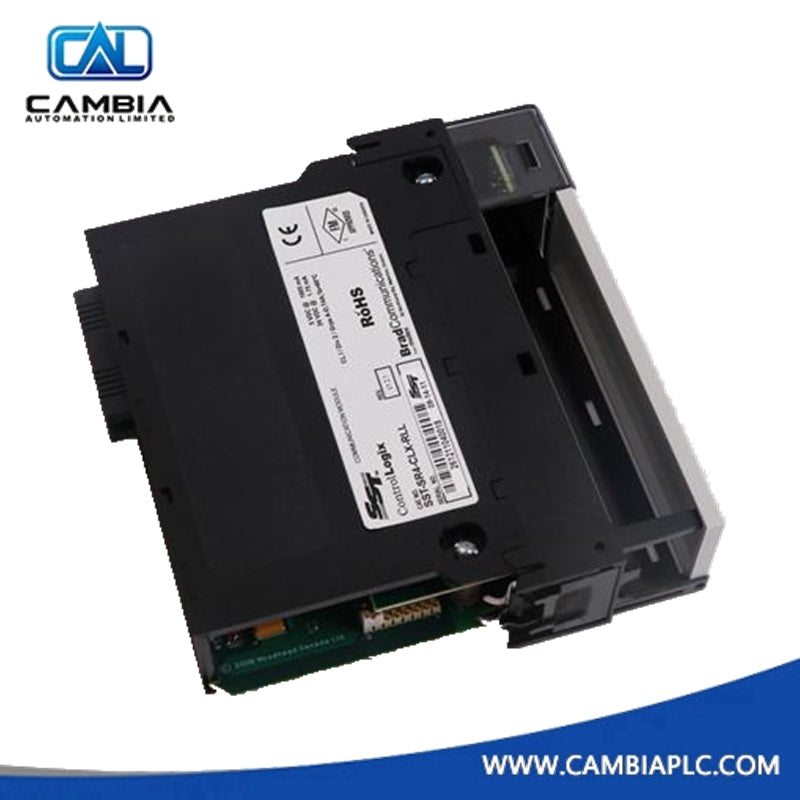

Molex SST-SR4-CLX-RLL Communication Module
In stock, ready to ship
Manufacturer: Molex
Product No.: SST-SR4-CLX-RLL
Product Type: Communication Module
Product Origin: USA
Payment: T/T
Weight: 4700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Molex SST‑SR4‑CLX‑RLL is a high‑performance communication module designed by Molex for interfacing ControlLogix systems with Modbus serial networks. It provides protocol translation and data exchange between Modbus Master or Slave and Allen‑Bradley systems. The module supports both Modbus RTU and ASCII modes on each of its four serial channels.
Each channel operates between 110 to 115,200 bps, and the module supports both RS‑232 and RS‑485 electrical interfaces. It mounts as a plug‑in module in a ControlLogix rack and draws power via its backplane. The SST‑SR4‑CLX‑RLL weighs approximately 1.32 kg, and includes LED indicators for power, activity, and fault status.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | SST‑SR4‑CLX‑RLL |
| Manufacturer | Molex |
| Product Type | Communication Module (Modbus / ControlLogix Interface) |
| Origin | USA |
| Weight | 1.32 kg |
| Number of Channels | 4 independent serial communication channels |
| Supported Protocols | Modbus RTU/ASCII as Master and Slave |
| Electrical Interface | RS‑232 and RS‑485 |
| Connector Types | 9‑Pin D‑Sub Male; RJ45 Serial Connectors |
| Isolation Voltage | 500 V galvanic isolation between channels |
| I/O Capacity | Direct mode: up to 496 bytes input/output; Paging mode: up to 32,000 words |
| Power Consumption | 5.5 W |
| Voltage Rating | 5/24 VDC |
| Power Supply Source | Via the ControlLogix backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
