Schneider

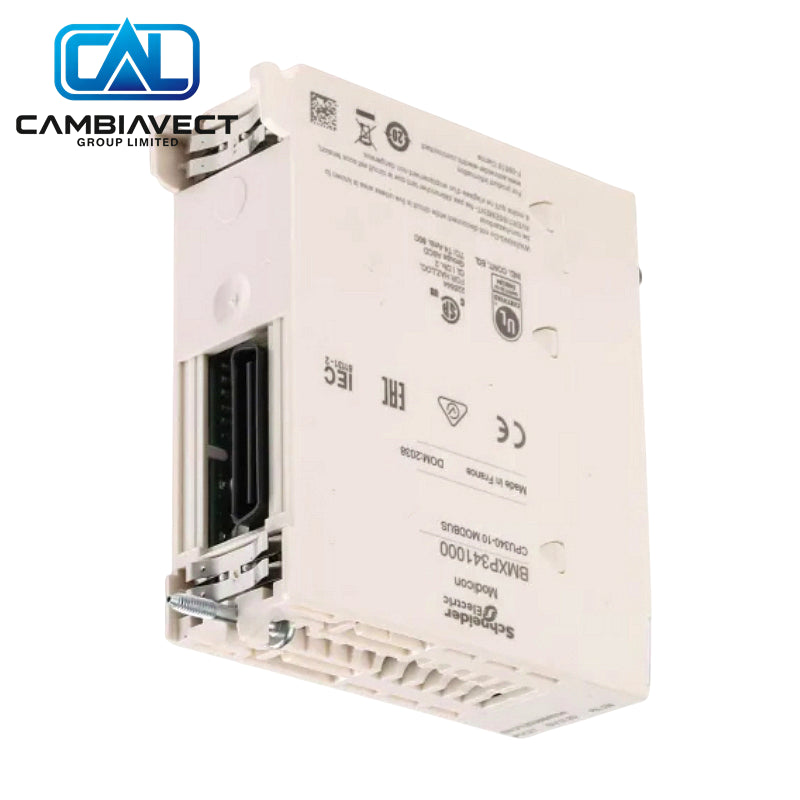

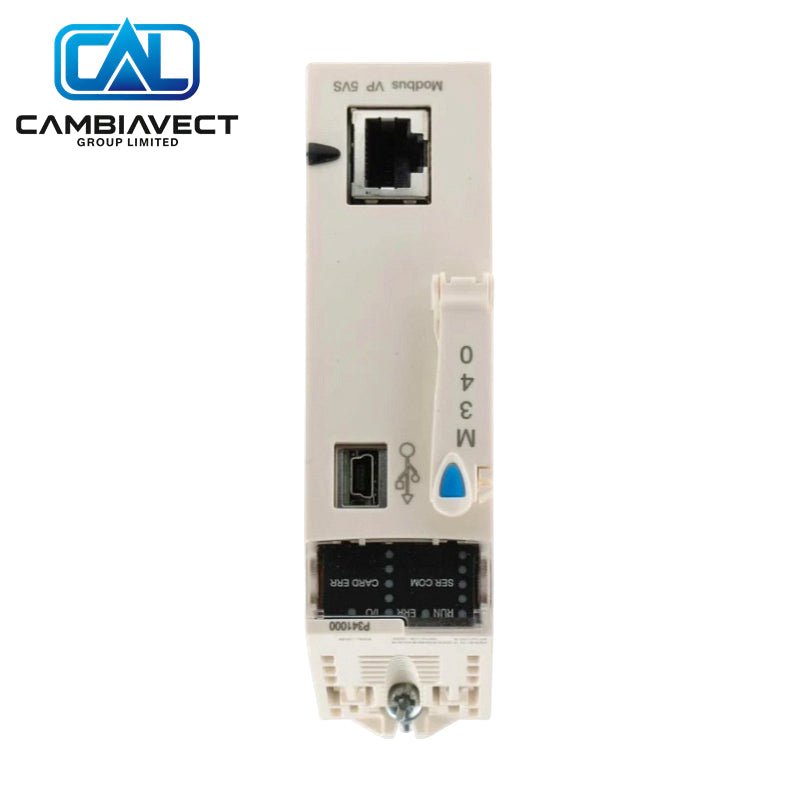

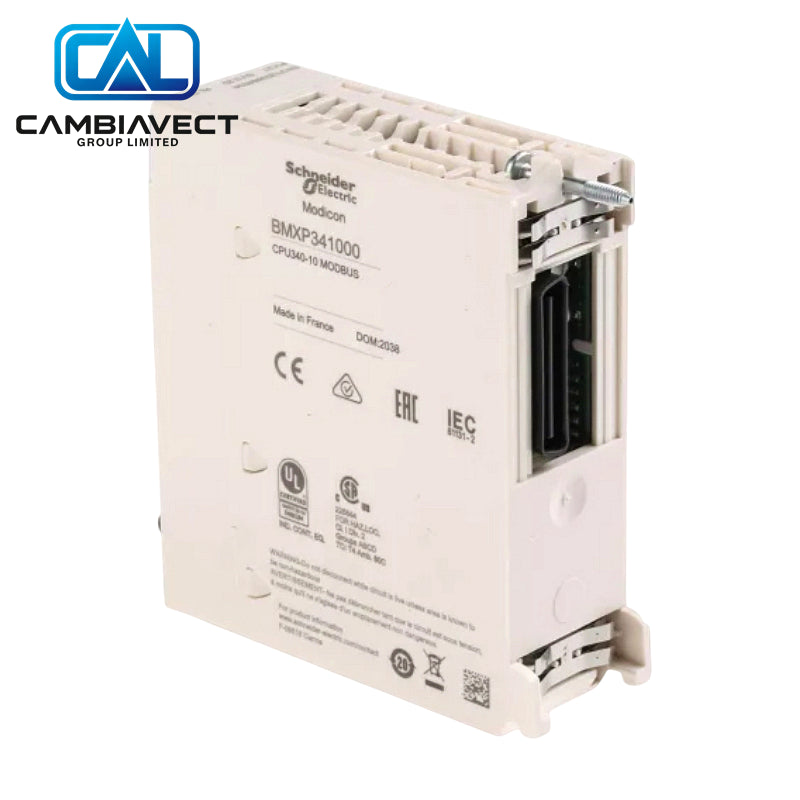

M340 Processor BMXP341000 Schneider 512 DI Modbus
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXP341000
Product Type: Processor Module
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Schneider BMXP341000 is a Modicon M340 processor module supporting up to 512 discrete and 128 analog I/O. It includes integrated Modbus serial ports and USB for programming and communication.
Key Specs
- Discrete I/O capacity: 512 (single-rack)
- Analog I/O capacity: 66 / 128 (multi-rack)
- Memory: 2048 kB internal RAM
- Ports: Modbus RS232/RS485, USB
- Racks: up to 2
- Slots: 11
- Weight: 0.2 kg
Why Choose This
- Compact and cost-effective M340 CPU
- Integrated serial communication
- Sufficient capacity for mid-size machines
- Standard X80 form factor
Common Questions
- Max discrete I/O? 512 points.
- Communication? Modbus serial + USB.
- Platform? Modicon M340 / X80.
Mounting Steps
- Insert the processor into the first slot of an X80 rack.
- Install the memory card if required.
- Connect programming cable via USB or serial port.
- Configure the project in EcoStruxure Control Expert.
- Power up and verify RUN status.
Buying Advice
- Ideal entry-level M340 processor for moderate I/O counts.
- Confirm total I/O and communication module requirements.
- Common spare for M340-based machines.
