Emerson
Left-Hand Carrier Extender 8021-CE-LH PAC8000
In stock, ready to ship
Manufacturer: Emerson
Product No.: 8021-CE-LH
Product Type: Carrier Extender
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

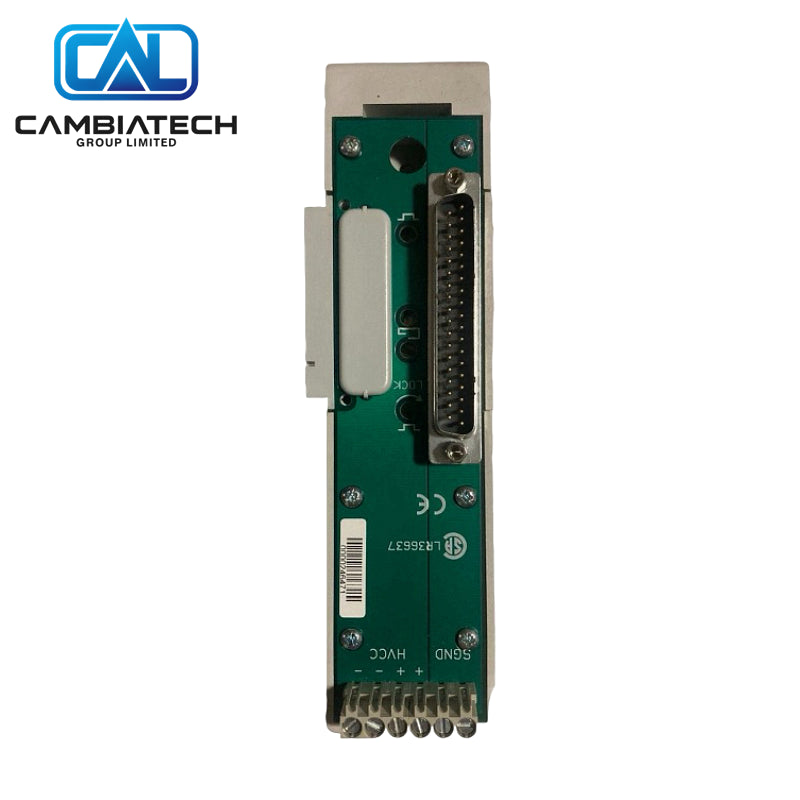

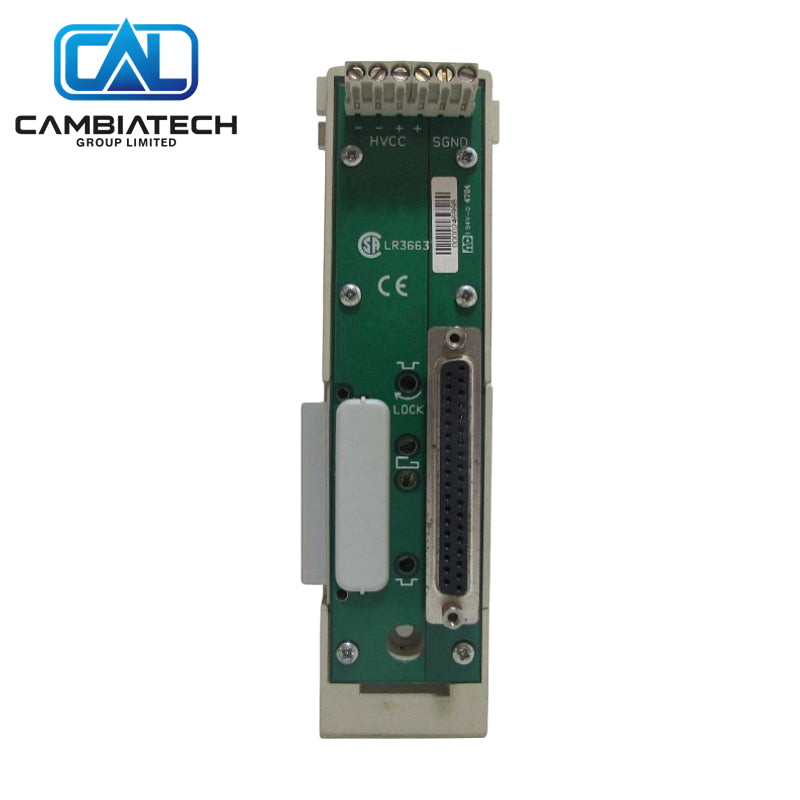

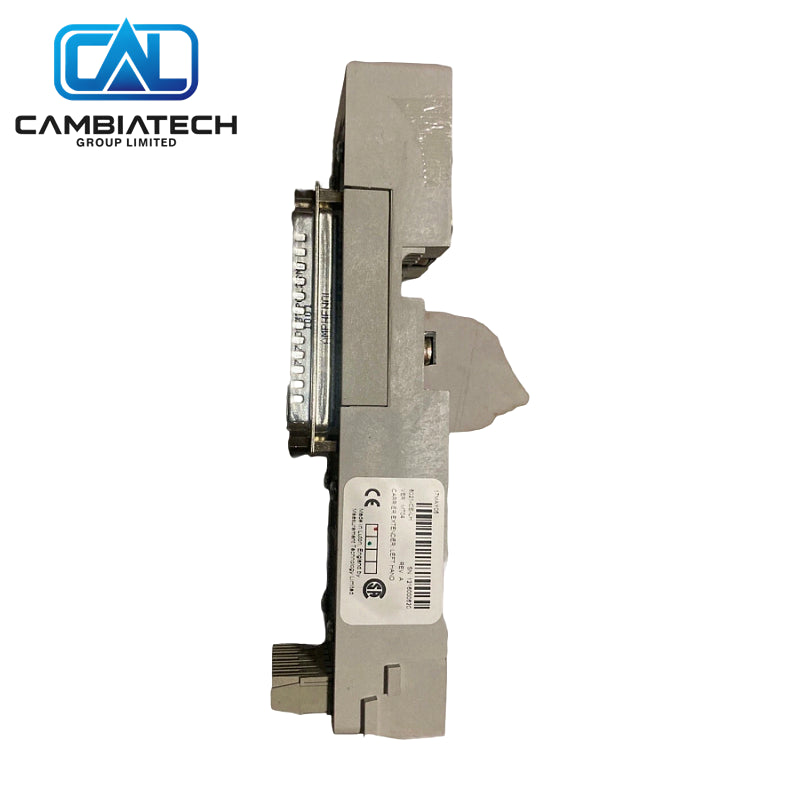

MTL 8021-CE-LH is the left-hand carrier extender for PAC8000 systems. It maintains Railbus and power continuity between separate carrier runs and must be paired with the matching right-hand extender 8020-CE-RH.
Key Specs
- Type: Left-hand Railbus extender
- Connector: Male multipin to carrier, 37-pin Sub-D for extender cable
- Address support: 32- and 64-slot systems
- Max extender pairs per node: 3
- Mounting: DIN rail
- System: PAC8000
Why Choose This
- Enables multi-carrier Railbus extension
- Maintains power and data continuity
- Supports larger distributed I/O layouts
- Paired design with 8020-CE-RH
Common Questions
- Side? Left-hand.
- Paired with? 8020-CE-RH.
- Max pairs? 3 per node.
Mounting Steps
- Mount the extender on DIN rail at the left end of the carrier run.
- Connect the Railbus interface to the carrier.
- Install the extender cable to the corresponding 8020-CE-RH.
- Connect system power terminals if required.
- Verify Railbus continuity and addressing.
Buying Advice
- Always order as a pair with 8020-CE-RH.
- Confirm maximum extender pairs for the node.
- Useful for expanding PAC8000 carrier length.
