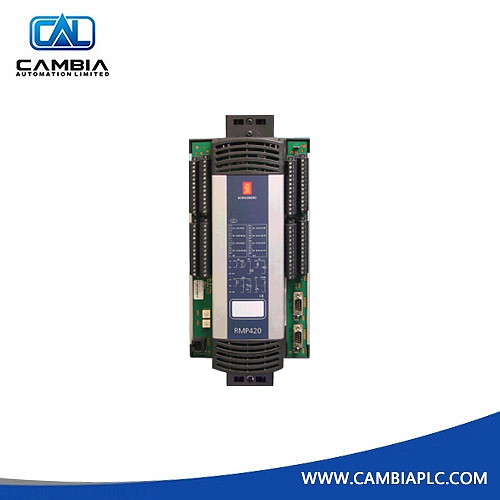

Kongsberg RMP420 Remote Multipurpose Input/Output in Good Condition

RMP420 is a multipurpose I/O module for use in Alarm monitoring and Integrated Control Systems. RMP420 is designed for 32 field input channels in single topologies. Its interface towards the host control computer (RCU) is provided by redundant I/O bus. The module is approved for Ex Zone 2 applications.

• 32 software configurable multipurpose solid-state channels. • Analog and Digital Input and Output (AI, AO, DI and DO).

• 2 or 3 wire Resistance Temperature Detector (RTD). • 2 channels can be configured as pulse/frequency/encoder input.

• Short-circuit protected I/O loop power output.

• Dual Remote I/O process BUS interface for redundant communication with host computer(s).

• Communication ports galvanically insulated from other module circuitry.

• Loop monitoring (per channel).

Benefits

• Over-voltage protection

• Extensive module diagnos tics

• I/O channels online configurable

• Soft and hard fail-safe

• Dual watchdog

• Certified for use in hazardous area zone 2

• RIO module and I/O loop, powered from the same source

• Automatic recovery pro tection e.g. automatic start of faulty channels

• Easy installation and replacement

• Simple and safe FW up grade

• Status LED

Technical Data

• Input supply voltage:24 VDC (18-31.2 V)

• Power consumption:

-Power: 10 W Typical

-Loop power: Configuration dependent

• Power connectors:

-Screw terminals

-Cable cross-section: 2.5 mm²

-Max. torque: 0.4-0.5 Nm

• Number of I/O channels:32

• I/O configuration:Multipurpose. Channels are individually configured

• Loop voltage: Input supply voltage

• Input loop current: Max. 4 mA @ 24 VDC loop voltage

• Channel "Off" current: <0.5 mA

• Channel "On" current: >3 mA

• Max input voltage: Input supply voltage

• Max. input signal freq.: 10 ms pulse

• Compliance: Namur compliant, PNP/NPN compliant

• Loop voltage: Input supply voltage

• Loop driver device: Short Circuit Proof High Side Driver

• Loop driver trip current: approx. 1.4 A @ 20˚C (reset by command)

• Loop driver "Off" leakage: Max. 0.1 mA @ 24 VDC input supply voltage

• Loop monitoring current: Max. 2 mA @ 24 VDC input supply voltage

• Ambient temp. and humidity:

  -Temp. operation: -15˚C to +70˚C

  -Temp. storage: -25˚C to +70˚C

  -Humidity operation: Up to 98% RH

  -Humidity storage: Up to 98% RH

• Protection Standards：IP 20 (IEC 60529)

• Dimensions (HxWxD): 355x158x87 mm

• Weight: 1.35 kg

• DIN rail vertical mounted: 35 7.5/15
