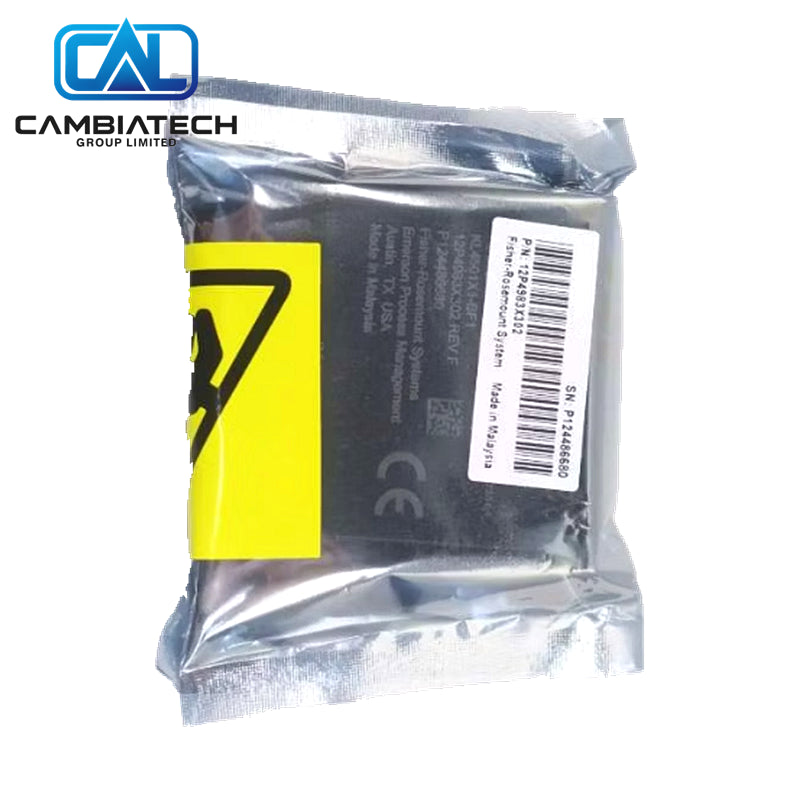

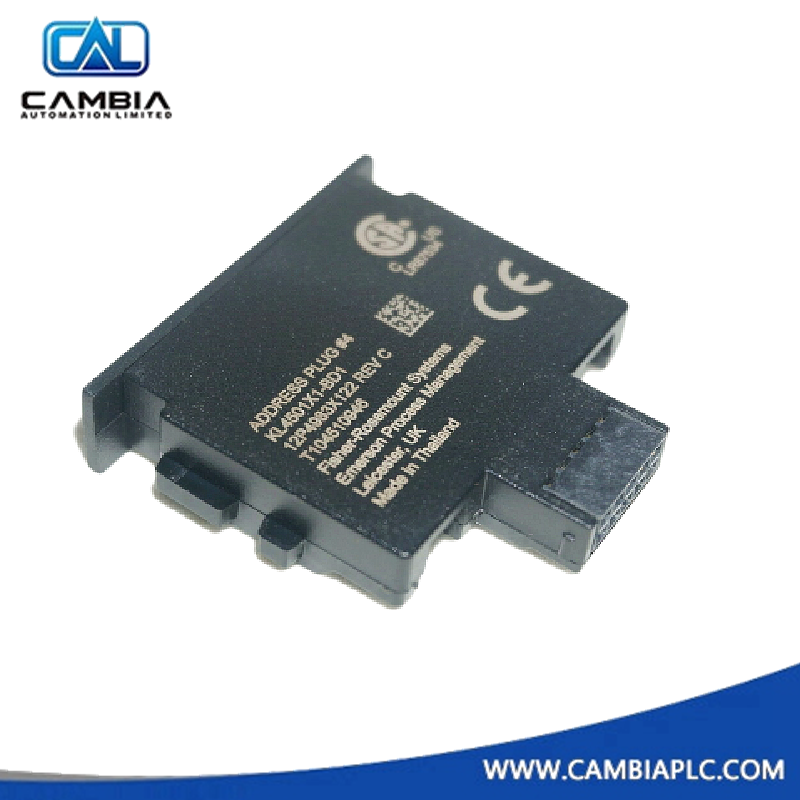

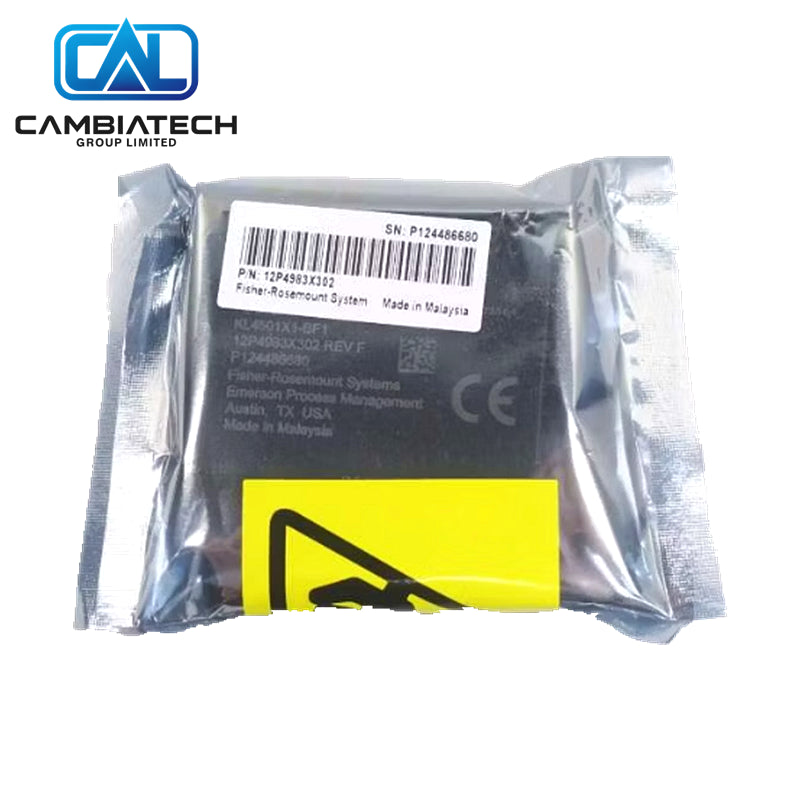

KL4501X1-BF1 | Emerson CHARM Address Plug Key 3E
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4501X1-BF1
Product Type: CHARM Address Plug
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KL4501X1-BF1 is a CHARM Address Plug with key position 3E for DeltaV Electronic Marshalling. It assigns the unique address and provides mechanical keying for the corresponding CHARM terminal block.
Key Specs
- Type: CHARM Address Plug
- Key position: 3E
- CHARM Bus power: +6.5 V DC at 7 mA
- Operating temperature: −40 °C to +70 °C
- Environmental: ISA-S71.04 Class G3
- System: DeltaV CHARM I/O subsystem
Why Choose This
- Correct addressing and keying for the assigned slot
- Prevents mismating of CHARM modules
- Low power draw
- Suitable for standard and hazardous locations
Common Questions
- Key position? 3E.
- Function? CHARM address and keying.
- Hot-swap? De-energize in hazardous areas.
Mounting Steps
- Ensure the system is de-energized as required.
- Insert the BF1 plug into the matching terminal block.
- Verify key engagement.
- Install the CHARM module.
- Restore power and confirm recognition.
Buying Advice
- Match the exact key position to the carrier design.
- Keep spares for each address plug type used.
- Essential component for Electronic Marshalling integrity.
