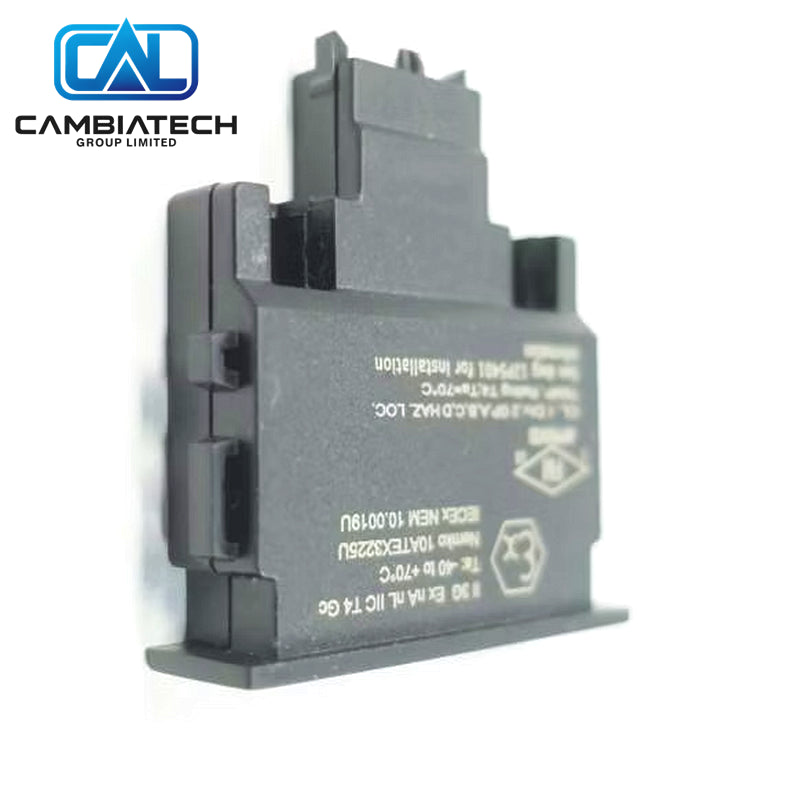

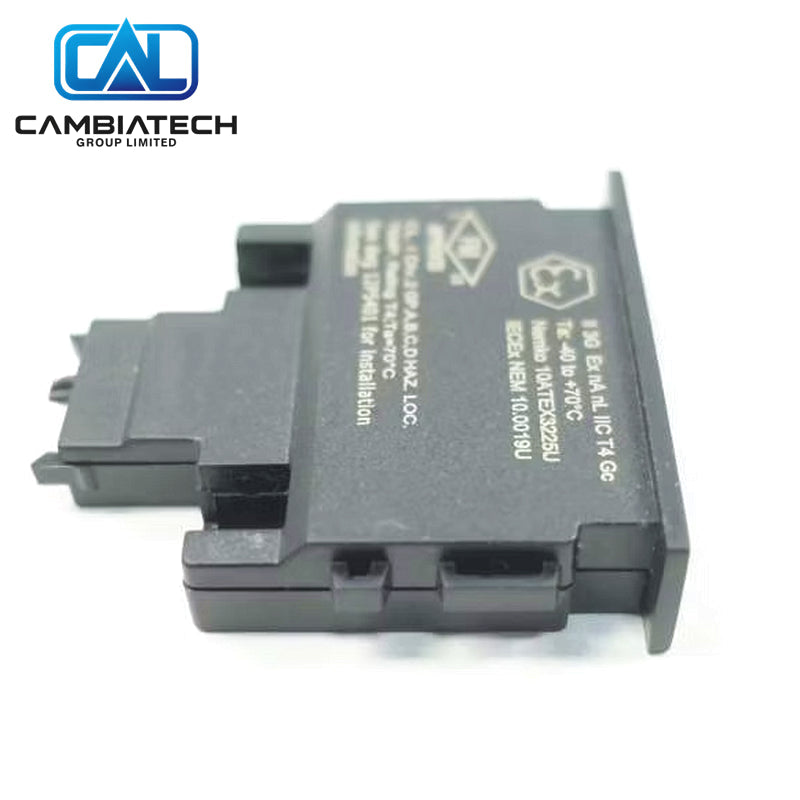

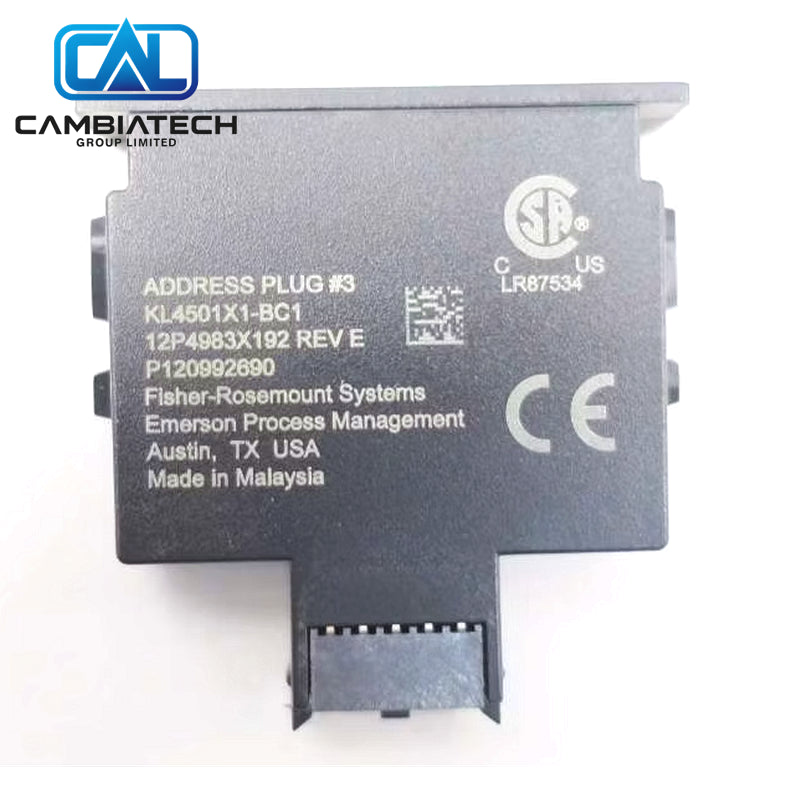

KL4501X1-BC1 Emerson CHARM Address Plug Identification
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4501X1-BC1
Product Type: CHARM Address Plug
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson KL4501X1-BC1 is a CHARM Address Plug that provides unique identification and keying for CHARM modules in the DeltaV Electronic Marshalling system.
Key Specs
- Type: CHARM Address Plug
- CHARM Bus power: +6.5 V DC at 7 mA
- Operating temperature: −40 °C to +70 °C
- System: DeltaV CHARM I/O
- Environmental rating: ISA-S71.04 Class G3
Why Choose This
- Assigns unique address to the CHARM slot
- Mechanical keying prevents mismating
- Compact and maintenance-free
- Suitable for Zone 2 / Class I Div 2 environments
Common Questions
- Purpose? CHARM addressing and keying.
- Power? 6.5 V DC / 7 mA from CHARM bus.
- System? DeltaV Electronic Marshalling.
Mounting Steps
- De-energize the CHARM carrier.
- Insert the plug into the designated terminal block position.
- Confirm keying alignment.
- Install the CHARM module.
- Restore power and verify address.
Buying Advice
- Order the correct key position for each slot.
- Useful spare for CHARM carrier maintenance.
- Do not mix address plugs of different key positions.
