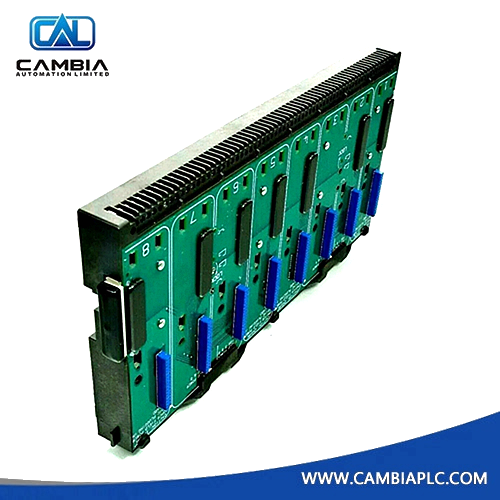

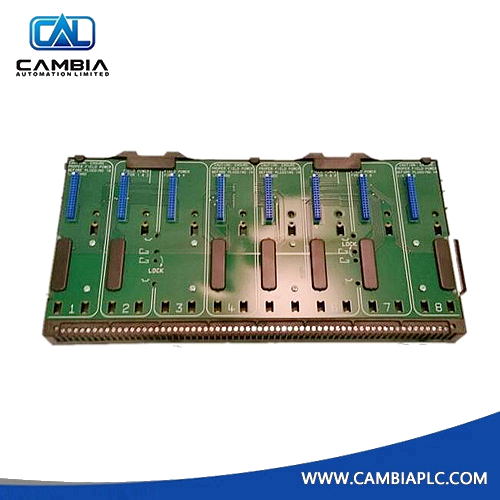

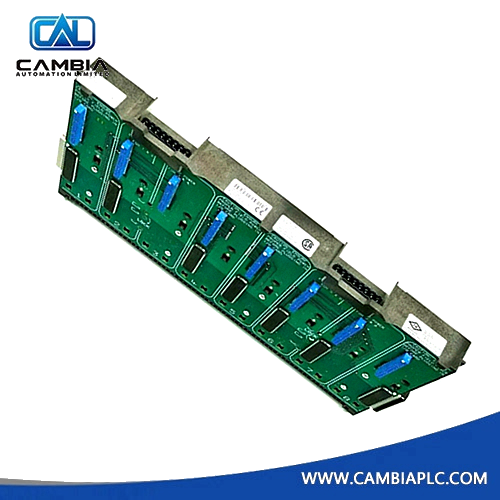

Emerson DeltaV KJ4001X1-BE1

8-Wide I/O Carrier with Shield

Product Description

The Emerson DeltaV KJ4001X1-BE1 is an 8-wide I/O carrier module designed for the DeltaV Distributed Control System (DCS). It provides a robust platform for mounting up to eight I/O modules, facilitating seamless integration and expansion of the control system. Equipped with enhanced shielding, it ensures reliable operation by minimizing electromagnetic interference (EMI), making it suitable for demanding industrial environments.

Technical Specifications

• Model Number: KJ4001X1-BE1

• LocalBus Power: 12.6 VDC at 8 A

• Bussed Field Power: 30 VDC at 6.5 A

• Operating Temperature: -40°C to +70°C

• Shock Resistance: 10g peak acceleration (½ sine wave for 11 ms)

• Vibration Resistance: 1 mm peak-to-peak (5–16 Hz), 0.5g (16–150 Hz)

• Humidity: 5% to 95% non-condensing

• Airborne Contaminants: ISA-S71.04-1985 Class G3

• Dimensions: 34.6 cm × 17 cm × 3.5 cm

• Weight: 0.72 kg

• Ingress Protection: IP20

• Certifications: Suitable for use in hazardous areas (e.g., ATEX Zone 2)
