KJ3243X1-BK1 | Emerson DeltaV Profibus DP Interface Card 12P4891

In stock, ready to ship

  • Manufacturer: Emerson

  • Product No.: KJ3243X1-BK1

  • Product Type: Interface Card

  • Product Origin: USA

  • Payment: T/T

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

KJ3243X1-BK1 | Emerson DeltaV Profibus DP Interface Card 12P4891

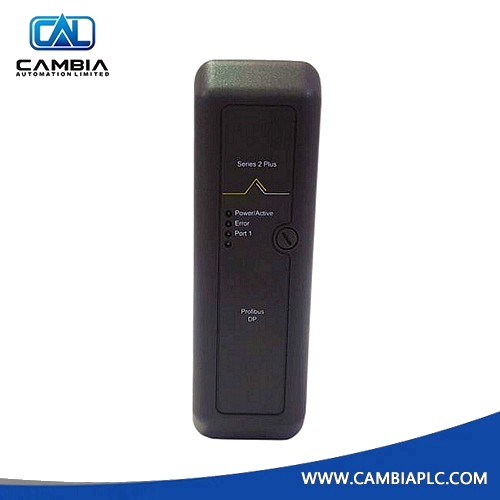

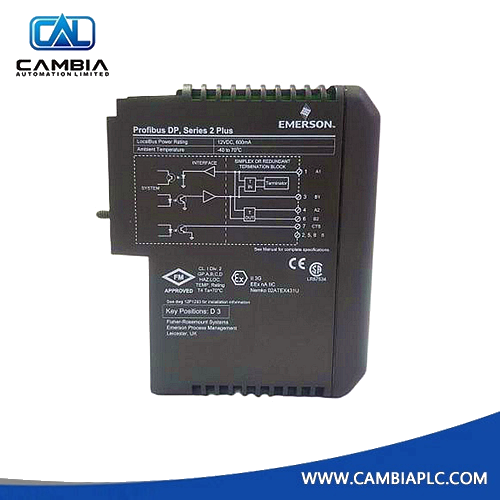

Emerson KJ3243X1-BK1

S-Series PROFIBUS DP Interface Card for DeltaV DCS

Product Description

The Emerson KJ3243X1-BK1 is a PROFIBUS DP interface card designed for the DeltaV™ S-Series Distributed Control System (DCS). It facilitates seamless integration of PROFIBUS DP field devices into the DeltaV system, enabling efficient and reliable communication in industrial automation environments.

Technical Specifications

  • Model Number: KJ3243X1-BK1

  • Communication Protocol: PROFIBUS DP

  • Local Bus Power: 12 VDC at 600 mA

  • Operating Temperature: -40°C to +70°C

  • Shock Resistance: 10g, half-sine wave for 11 ms

  • Vibration Resistance:

    • 1 mm peak-to-peak (2–13.2 Hz)

    • 0.7g (13.2–150 Hz)

  • Humidity Range: 5% to 95% RH (non-condensing)

  • Airborne Contaminants: ISA-S71.04 –1985 Class G3 compliant

  • Protection Rating: IP20

  • Dimensions: Approximately 16 cm × 16 cm × 12 cm

  • Weight: Approximately 1 kg

  • Certifications:

    • ATEX II 3G Ex ec IIC Gc

    • IECEx FMG 19.0019U

    • FM19ATEX0173U

    • FM21UKEX0017U

    • CL. I Div. 2 GP. A,B,C,D

    • CL. I Zone 2 AEx/Ex ec IIC Gc
