Emerson

KJ3204X1-BK1 | Emerson DeltaV SIS DO 32-Channel 24 VDC High-Side Card

In stock, ready to ship

  • Manufacturer: Emerson

  • Product No.: KJ3204X1-BK1

  • Product Type: Discrete Output Card

  • Product Origin: USA

  • Payment: T/T

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

KJ3204X1-BK1 | Emerson DeltaV SIS DO 32-Channel 24 VDC High-Side Card

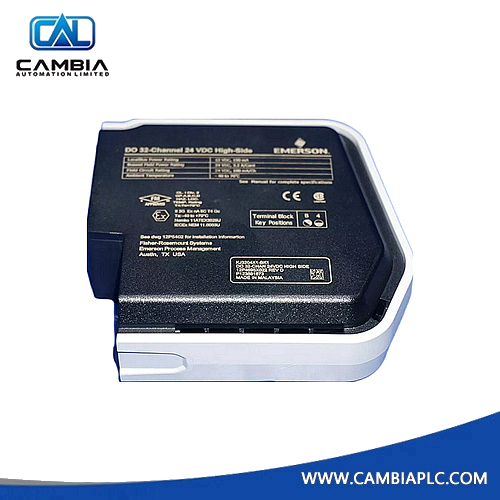

Emerson KJ3204X1-BK1

32-Channel Discrete Output Card for DeltaV SIS

Product Description

The Emerson KJ3204X1-BK1 is a high-performance 32-channel discrete output card built for use within the DeltaV Distributed Control System (DCS), specifically supporting Safety Instrumented System (SIS) architectures.

Technical Specifications

  • Model Number: KJ3204X1-BK1

  • Number of Channels: 32

  • Output Type: 24V DC high-side

  • System Configuration: Simplex or redundant

  • Communication Protocol: SISnet

  • Power Supply: 24V DC

  • Operating Temperature: -40°C to +70°C

  • Shock Resistance: 10g, ½ sinewave for 11 ms

  • Vibration Resistance:

    • 1 mm peak-to-peak (2–13.2 Hz)

    • 0.7g (13.2–150 Hz)

  • Humidity Range: 5% to 95% RH (non-condensing)

  • Dimensions: 178 mm × 89 mm × 31 mm

  • Weight: 0.75 kg
