Emerson
Emerson
In stock, ready to ship
Manufacturer: Emerson
Product No.: KJ3204X1-BA1
Product Type: Digital Output
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

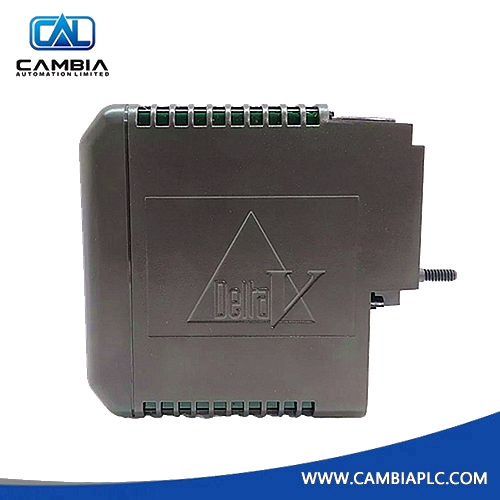

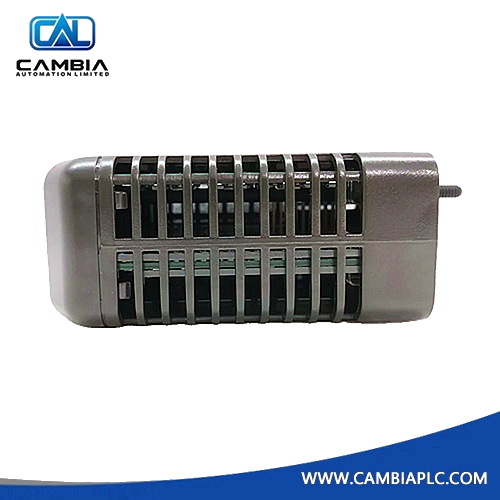

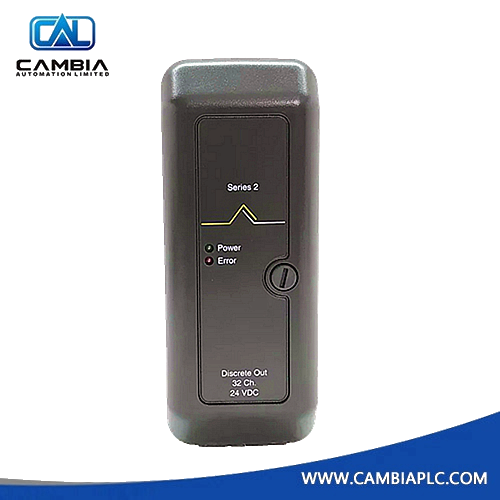

The Emerson KJ3204X1-BA1 is a 32-channel digital output module designed for use in DeltaV Distributed Control Systems (DCS). It provides 24V DC high-side outputs, ensuring reliable control for solenoids, relays, and contactors in industrial automation applications. This module features isolated outputs for enhanced safety and supports hazardous area installations, making it suitable for demanding industrial environments.
Model Number: KJ3204X1-BA1
Voltage Rating: 24V DC
Number of Channels: 32
Isolation: Yes
LocalBus Power Rating: 12V DC at 150mA
Field Circuit Rating: 24V DC at 100mA per channel
Operating Temperature: -40°C to +70°C
Shock Resistance: 10g peak acceleration
Vibration Resistance: 1mm peak-to-peak (5-16Hz), 0.7g (16-150Hz)
Humidity: 5% to 95% non-condensing
Dimensions: 225 mm × 112 mm × 58 mm
Weight: 0.8 lbs
