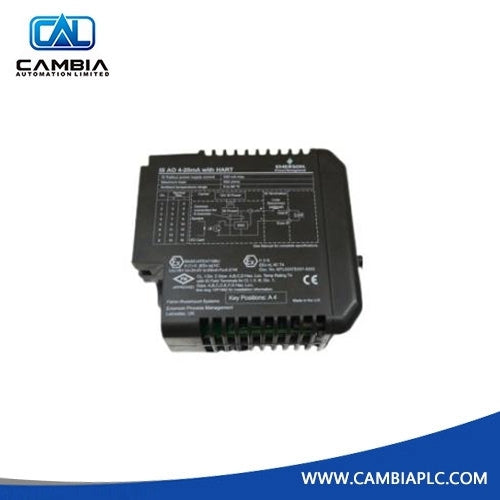

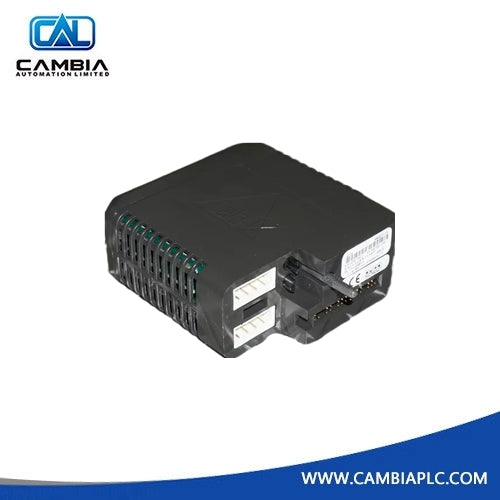

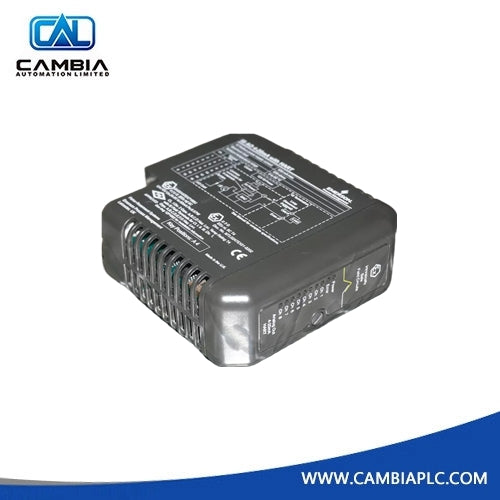

Emerson DeltaV KJ3102X1-BA1

8-Channel Analog Input Module with HART Communication

Product Description

The Emerson DeltaV KJ3102X1-BA1 is an 8-channel analog input module designed for the DeltaV Distributed Control System (DCS). It supports 4–20 mA current inputs with HART communication, enabling precise and reliable data acquisition from field devices.

Technical Specifications

• Model Number: KJ3102X1-BA1

• Input Signal: 4–20 mA with HART communication

• Number of Channels: 8

• Power Supply: 24 VDC

• Local Bus Power: 12 VDC at 100 mA

• Field Power: 24 VDC

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5% to 95% non-condensing

• Shock Resistance: 10 g, ½ sine wave for 11 ms

• Vibration Resistance: 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz)

• Airborne Contaminants: ISA-S71.04 Class G3

• Dimensions: 12.5 cm × 7.5 cm × 2.5 cm

• Weight: 0.2 kg
