Emerson
KJ3001X1-BG1 | Emerson DeltaV 8-Channel Discrete Output Module
In stock, ready to ship
Manufacturer: Emerson
Product No.: KJ3001X1-BG1
Product Type: Discrete Output
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

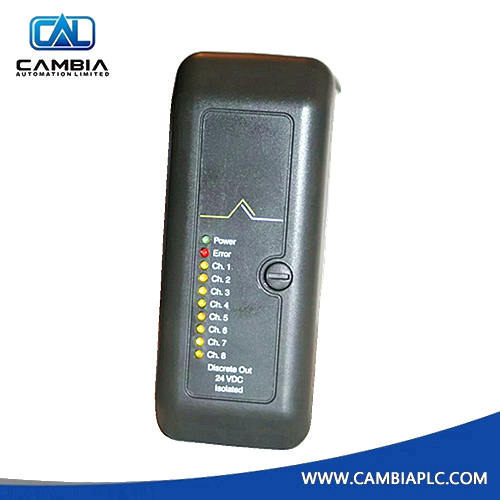

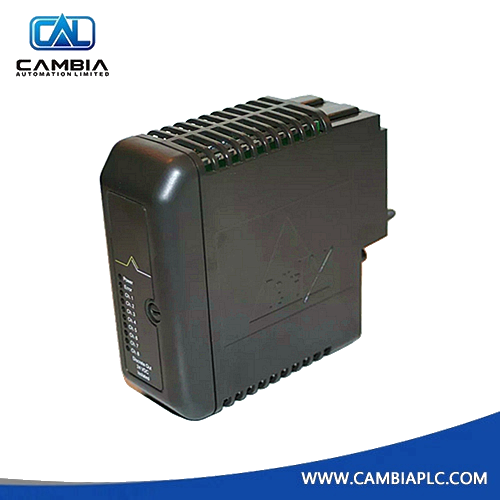

Emerson DeltaV KJ3001X1-BG1
8-Channel Discrete Output Module (24V DC, Isolated)
Overview
The Emerson KJ3001X1-BG1 is an 8-channel discrete output module designed for use within DeltaV Distributed Control Systems (DCS). It provides isolated 24V DC digital outputs, delivering reliable and safe control for field devices such as solenoids, relays, and contactors in industrial automation environments.
Key Features
-
8 discrete output channels
-
24V DC operation
-
Electrically isolated outputs for increased reliability and safety
-
Rotary keying to prevent misinstallation
-
Suitable for hazardous area applications
-
Supports high-integrity control systems with robust construction
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3001X1-BG1 |
| Voltage Rating | 24V DC |
| Number of Channels | 8 |
| Channel Isolation | Yes (individually isolated outputs) |
| LocalBus Power Rating | 12V DC @ 150 mA |
| Field Circuit Rating | 60V DC @ 1 A per channel (max) |
| Operating Temperature | 0°C to 60°C |
| Shock Resistance | 10g peak acceleration |
| Vibration Resistance | 1 mm peak-to-peak (5–16 Hz), 0.5g (16–150 Hz) |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W×H×D) | 4.2 cm × 12.5 cm × 10.5 cm |
| Weight | 0.2 kg |
