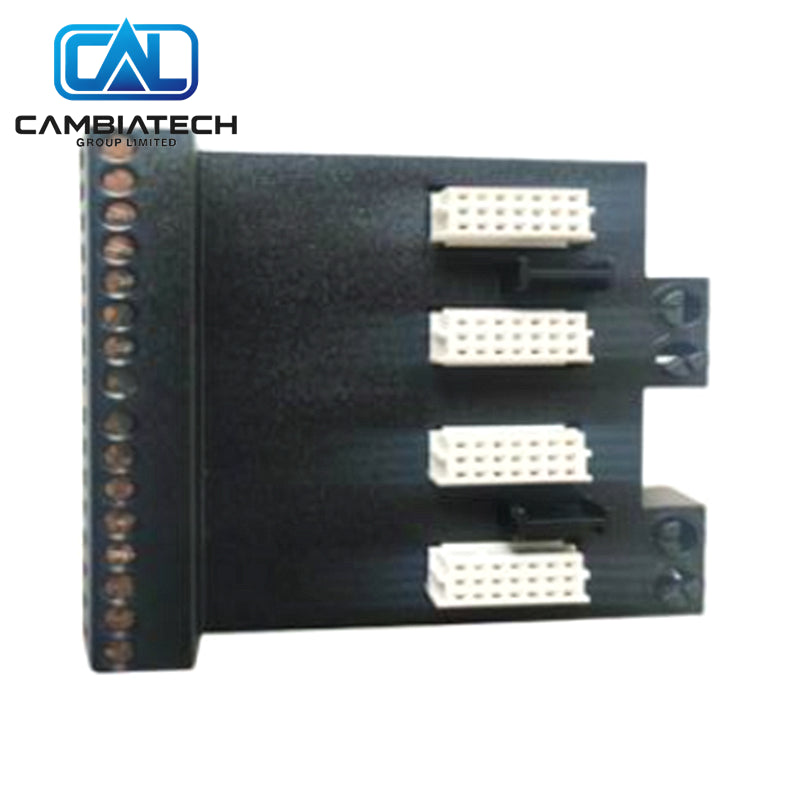

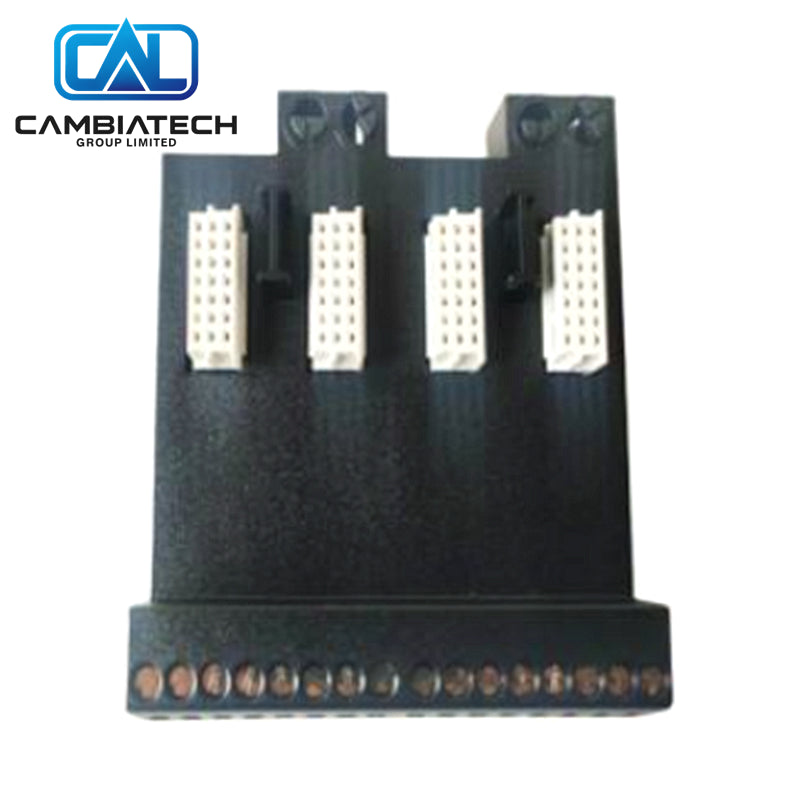

KC4011X1-BD1 Emerson Redundant 16ch AO Terminal Block
Manufacturer: Emerson
Product No.: KC4011X1-BD1
Product Type: Analog Output Terminal Block
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson KC4011X1-BD1 is a redundant 16-channel Analog Output Terminal Block for DeltaV S-series systems. It provides field termination for redundant AO cards with 24 VDC analog output control in hazardous locations.
Key Specs
- Type: Redundant 16-Channel AO Terminal Block
- Channels: 16
- Field circuit power: 30 VDC at 100 mA per channel
- Key position: A5
- Operating temperature: −40 °C to +70 °C
- Hazardous area: Class I Div 2 / Zone 2
Why Choose This
- Supports redundant analog output paths
- Rotary keying for correct module pairing
- Hazardous-area certified
- High availability for critical AO applications
Common Questions
- Channels? 16 AO.
- Redundant? Yes.
- Key position? A5.
Mounting Steps
- Mount the terminal block on the carrier.
- Set the rotary key to the correct position.
- Wire the field analog output signals.
- Install the matching redundant AO card.
- Power up and verify channel status.
Buying Advice
- Required for redundant AO configurations.
- Match key position with the I/O card.
- Useful spare for high-availability AO racks.
