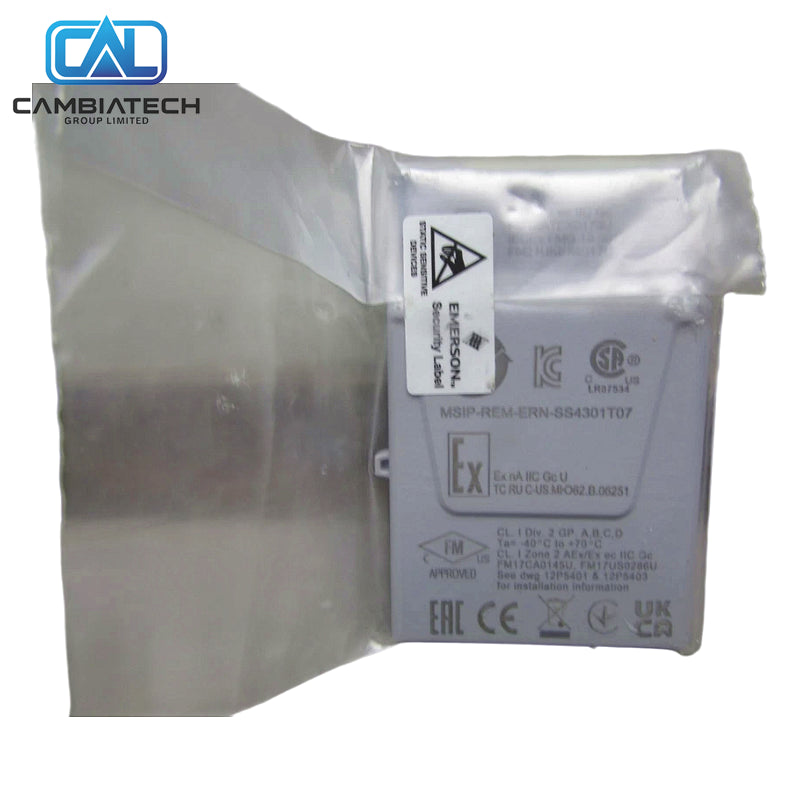

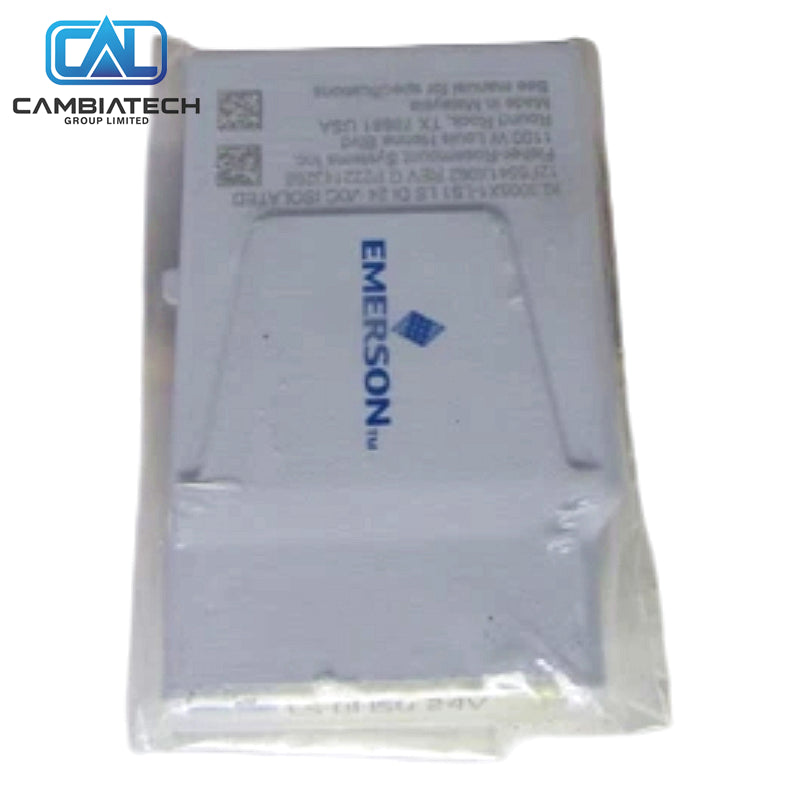

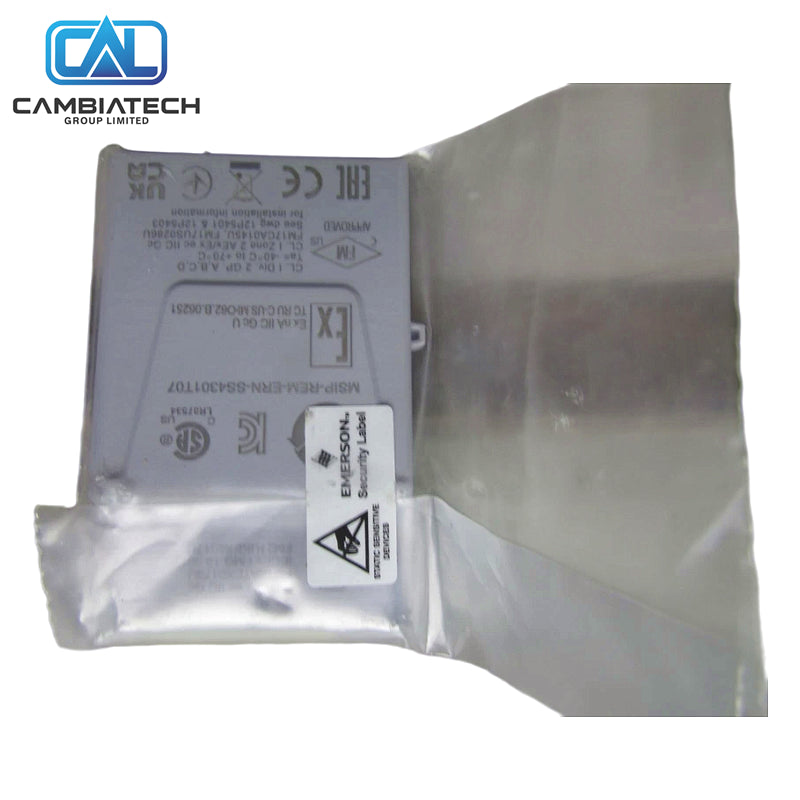

Isolated DI 24VDC CHARM KL3005X1-LS1 Emerson DeltaV
Manufacturer: Emerson
Product No.: KL3005X1-LS1
Product Type: Digital Input CHARM
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KL3005X1-LS1 is a 24 VDC Isolated Digital Input CHARM for DeltaV Electronic Marshalling. It provides galvanic isolation for discrete signals and is certified for hazardous areas.
Key Specs
- Type: LS DI 24 VDC Isolated CHARM
- Local Bus Power: +6.3 VDC at 32 mA
- Field Circuit Power: +24 VDC at 12 mA
- Terminal Block Key: 6C
- Operating temperature: −40 °C to +70 °C
- Hazardous area: ATEX / IECEx / FM class
- System: DeltaV CHARMs
Why Choose This
- Isolated discrete input for noise immunity
- Hazardous-area certified
- Single-channel CHARM flexibility
- Hot-swappable capability
Common Questions
- Type? Isolated 24 VDC DI CHARM.
- Key? 6C.
- System? DeltaV Electronic Marshalling.
Mounting Steps
- Install the CHARM into the keyed terminal block.
- Wire the 24 VDC discrete field signal.
- Configure the channel in DeltaV Explorer.
- Verify isolation and status LEDs.
- Test input operation.
Buying Advice
- Select when channel isolation is required.
- Confirm key position 6C and baseplate type.
- Critical spare for isolated DI CHARM nodes.
