GE Fanuc

IS2020RKPSG2A | GE VME Rack Power Supply Mark Vi

In stock, ready to ship

  • Manufacturer: GE Fanuc

  • Product No.: IS2020RKPSG2A

  • Product Type: Power Supply

  • Product Origin: USA

  • Payment: T/T

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

IS2020RKPSG2A | GE VME Rack Power Supply Mark Vi

GE IS2020RKPSG2A

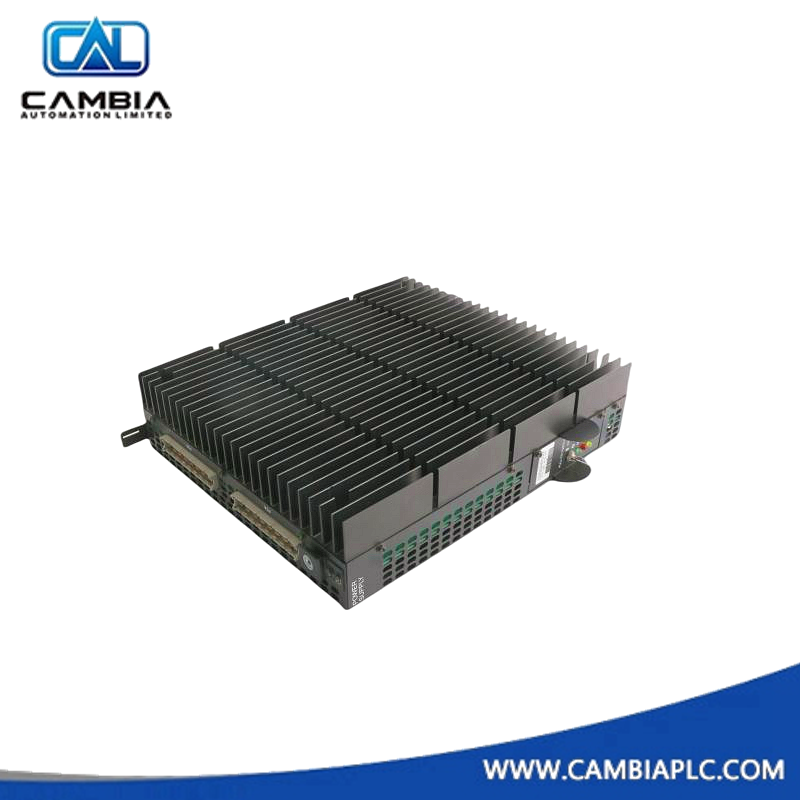

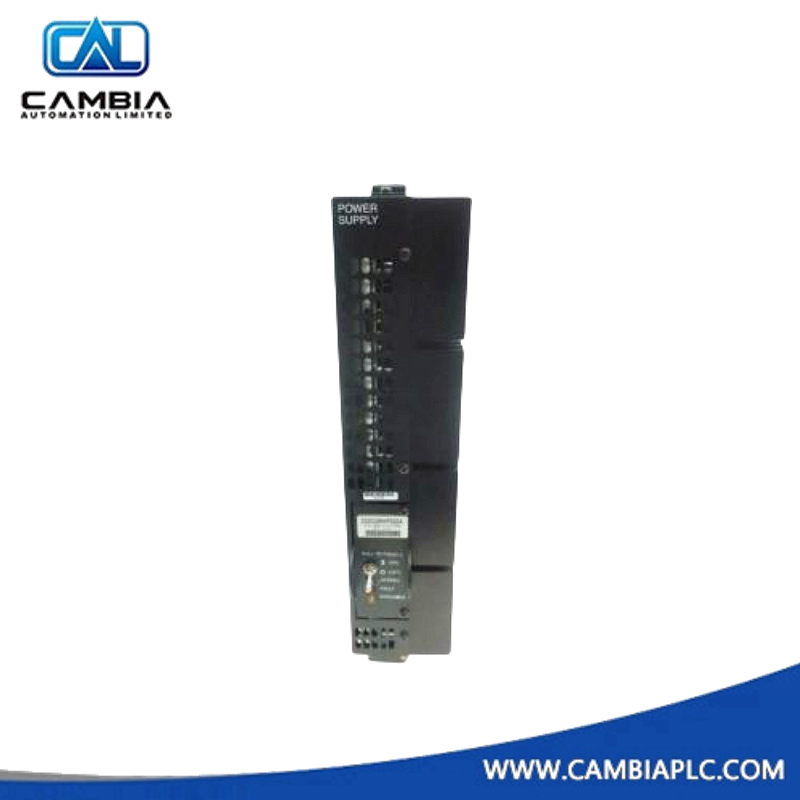

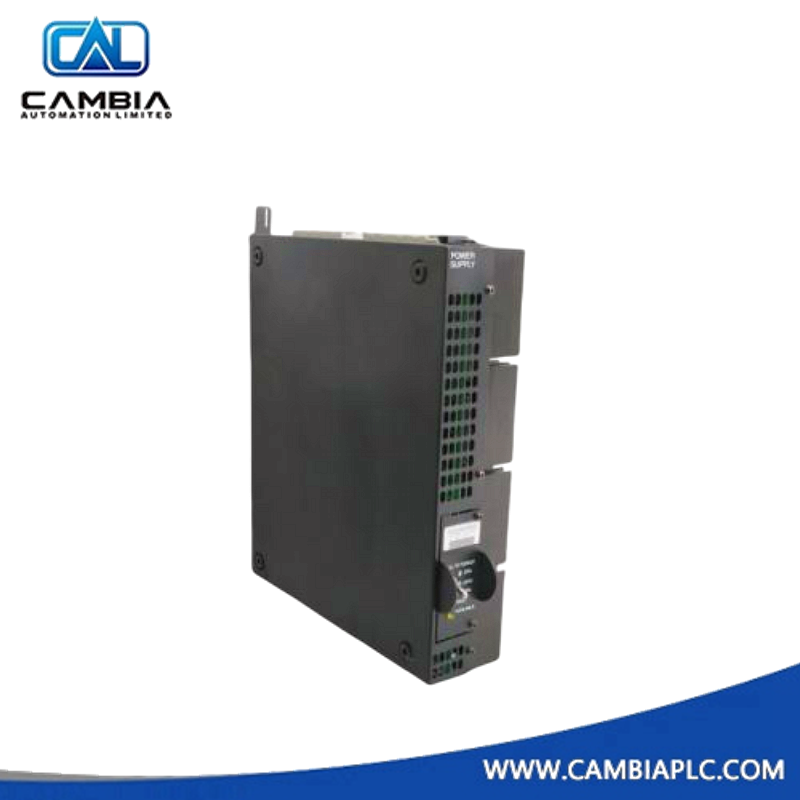

VME Rack-Mounted Power Supply Module for Mark VI Speedtronic

Product Description

The IS2020RKPSG2A is a VME rack-mounted power supply module developed by GE Industrial Systems for the Mark VI Speedtronic turbine control platform. It delivers regulated DC power to the VME backplane and supports both standard and redundant configurations. This module is commonly used in gas, steam, and wind turbine control systems.

  • Manufacturer: GE Industrial Systems
  • Catalog Number: IS2020RKPSG2A
  • Series: Mark VI Speedtronic
  • Module Type: VME Rack Power Supply Module
  • Lifecycle Status: Active
  • Mounting: Side of VME rack (sheet metal bracket)

Technical Specifications

Attribute Specification
Input Voltage 125 VDC
Output Power 400 W
Output Voltages +5 V, ±12 V, ±15 V, ±28 V DC, optional 335 V DC
Output Connectors PSA, PSB (top); PS125/PS24, PS335, PS28, PSSTAT (bottom)
Status Indicators 3 LEDs (green: normal, red: fault, yellow: input present)
Control Interface Locking front-panel power switch (also serves as fault reset)
Redundancy Support Yes
PCB Coating Normal
Dimensions Approx. 263 × 138 × 88 mm
Weight Approx. 2.35 kg
Operating Temperature 0 to 60 °C
Instruction Manual GEH-6421E, GEI-100567
