GE Fanuc

IC698RMX016 | Emerson GE Fanuc | Redundancy Memory Exchange Module

In stock, ready to ship

  • Manufacturer: GE Fanuc

  • Product No.: IC698RMX016

  • Product Type: Memory Exchange

  • Product Origin: USA

  • Payment: T/T

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

IC698RMX016 | Emerson GE Fanuc | Redundancy Memory Exchange Module

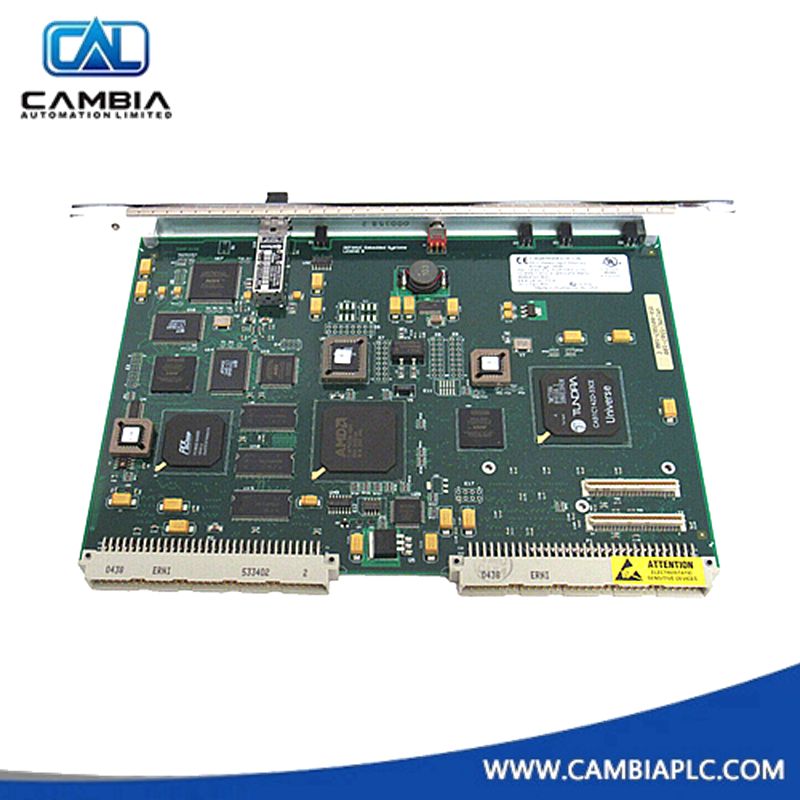

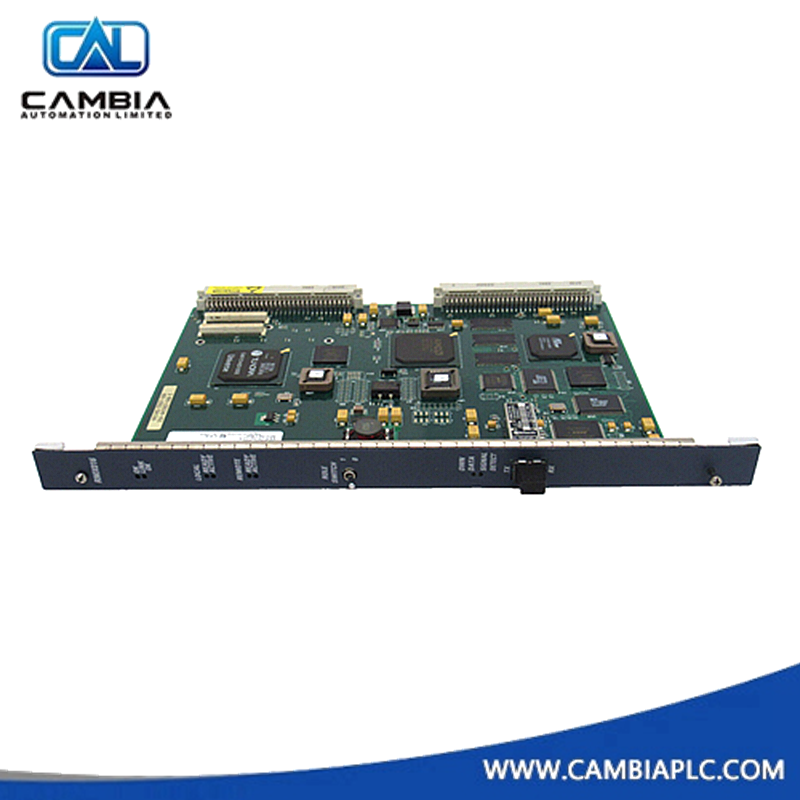

GE IC698RMX016 | Redundancy Memory Exchange Module

The IC698RMX016 is a Redundancy Memory Exchange (RMX) Module designed for the PACSystems RX7i series. It plays a critical role in CPU redundancy and reflective memory networks, ensuring seamless data sharing and system failover in mission-critical applications.

Technical Specifications

Attribute Details
Series PACSystems RX7i
Function Redundancy Memory Exchange / Reflective Memory
User Memory 16 MB SDRAM
Operating Voltage +5 VDC (from rack power supply)
Current Requirement 1.8 A
Connector Type Fiber Optic LC (IEC 61754-20 compliant)
Insertion Loss ≤ 0.35 dB
Return Loss ≥ –30 dB
Temperature Range –20°C to +85°C
Mounting Slot Recommended in Slot 3 or 4 of main rack
Dimensions 6.299” W × 9.187” H
Max Nodes (Reflective Network) 256

Key Features

  • Dual Role: Functions as either a redundancy link or a reflective memory node
  • High-Speed Fiber Optic Communication: 2.12 Gbaud for real-time data sync
  • Dynamic Packet Sizing: Automatically managed for optimal performance
  • No CPU Load: Operates independently of RX7i CPU processing
  • Network Interrupts: Four general-purpose interrupts with 32-bit data
  • Hot Standby Support: Enables seamless CPU failover in redundant systems
  • Software Configurable: No jumpers or DIP switches required
  • VMIC 5565 Compatible: Works with other reflective memory devices
