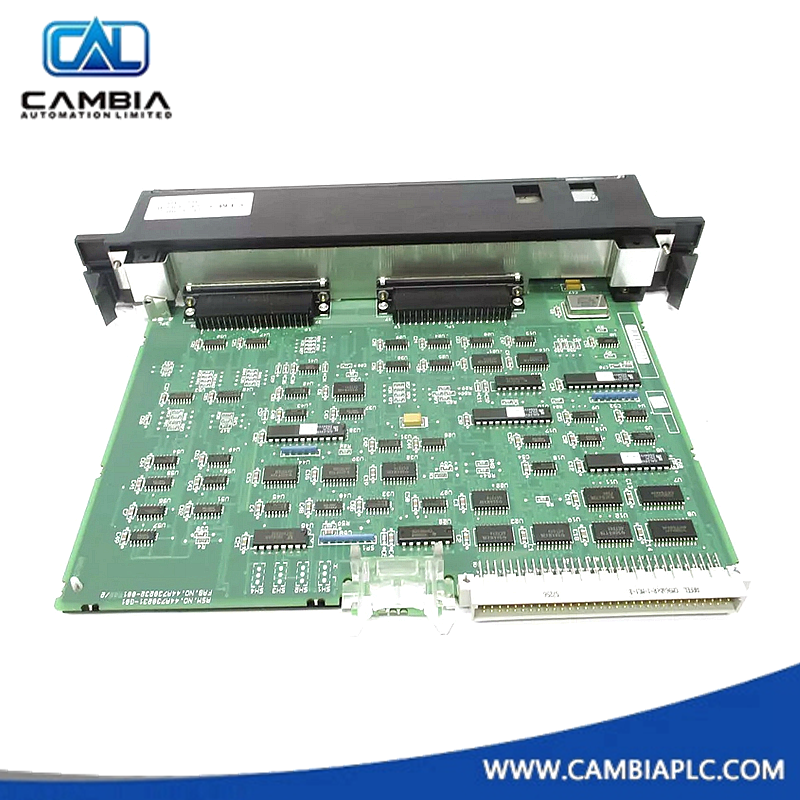

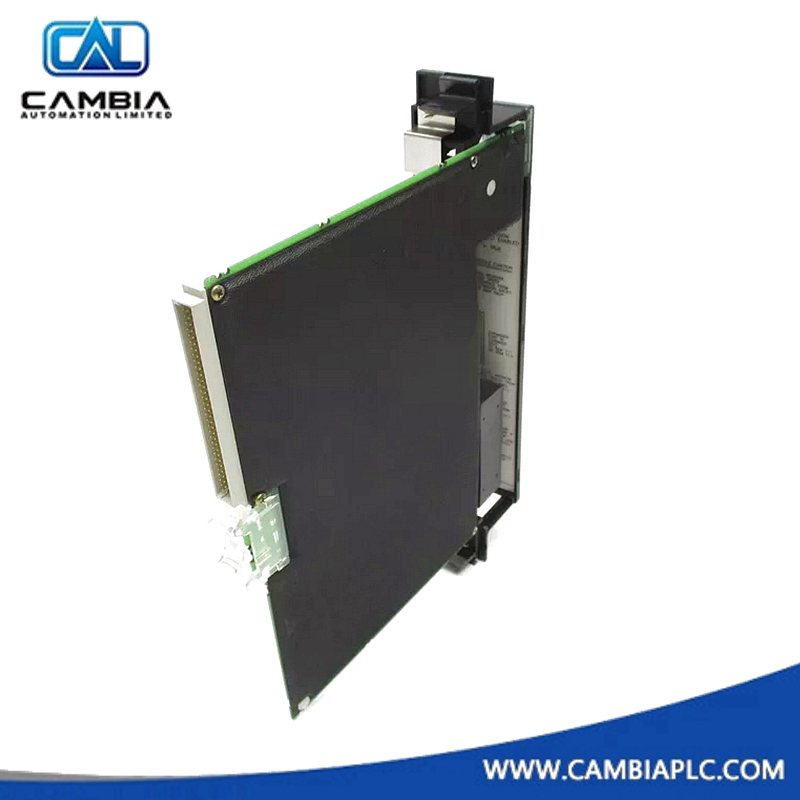

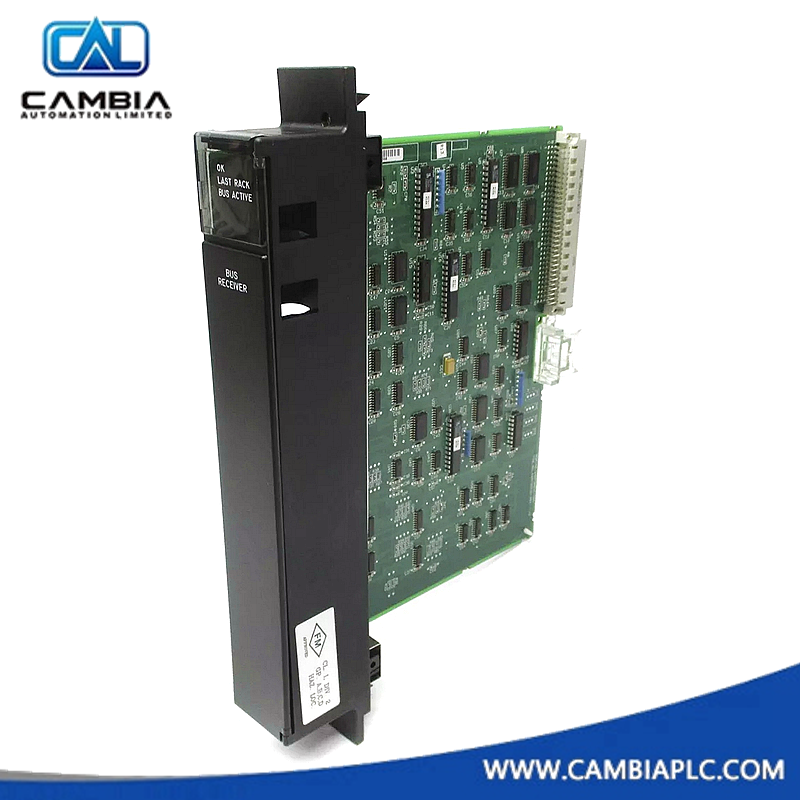

GE Fanuc IC697BEM711

Bus Receiver Module (BRM) for Series 90-70 PLC

Overview

The IC697BEM711 is a Bus Receiver Module (BRM) designed for the Series 90-70 PLC system by GE Fanuc. It enables high-speed parallel bus expansion from the main rack to additional racks, supporting distributed I/O configurations. This module is essential for large-scale control systems requiring modular scalability and reliable communication across multiple racks.

Technical Specifications

Parameter Specification
Manufacturer GE Fanuc (Emerson Automation)
Catalog Number IC697BEM711
Product Type Bus Receiver Module (BRM)
PLC Series Series 90-70
Expansion Capability Up to 7 additional IC697 racks
Interconnecting Cable Length Up to 50 feet
Data Transfer Rate 500 Kbytes/sec
Slot Requirement Must be installed in Slot 1
Configuration Method Software-based (no DIP switches)
Communication Ports 2 serial connectors
LED Indicators Module status, rack status, I/O bus terminator
Fault Tolerance Maintains last output state on CPU loss
Isolation Support Allows replacement of faulty modules
Power Requirement 0.8 Amps from backplane
Operating Temperature Range 0 to 60 °C
Certifications CE, UL, CSA

Dimensions and Weight

Attribute Specification
Module Width 16 cm
Module Height 16 cm
Module Depth 12 cm
Weight 0.8 kg
Mounting Type Rack-mounted

Key Features

  • High-speed parallel communication between main rack and expansion racks
  • Supports up to 7 additional IC697 racks
  • Software-based configuration (no DIP switches required)
  • Maintains last output state on CPU failure for fault tolerance
  • Rack-mounted design with dual communication connectors

Product Questions

Q: What is the function of the IC697BEM711 in a PLC system?
A: It facilitates high-speed parallel communication between the main rack and up to seven expansion racks in a Series 90-70 PLC system.

Q: Is special software required for configuration?
A: Yes. Configuration is performed via MS-DOS or Windows-based software, with no need for physical DIP switch settings.

Q: Can the module be installed in any slot?
A: No. It must be installed in Slot 1 of the rack to function properly.

Q: What happens if communication with the CPU is lost?
A: The module maintains the last known output state of connected modules, ensuring operational continuity.
