IC695ALG728 | Emerson GE RX3i Analog Output Module, current/H

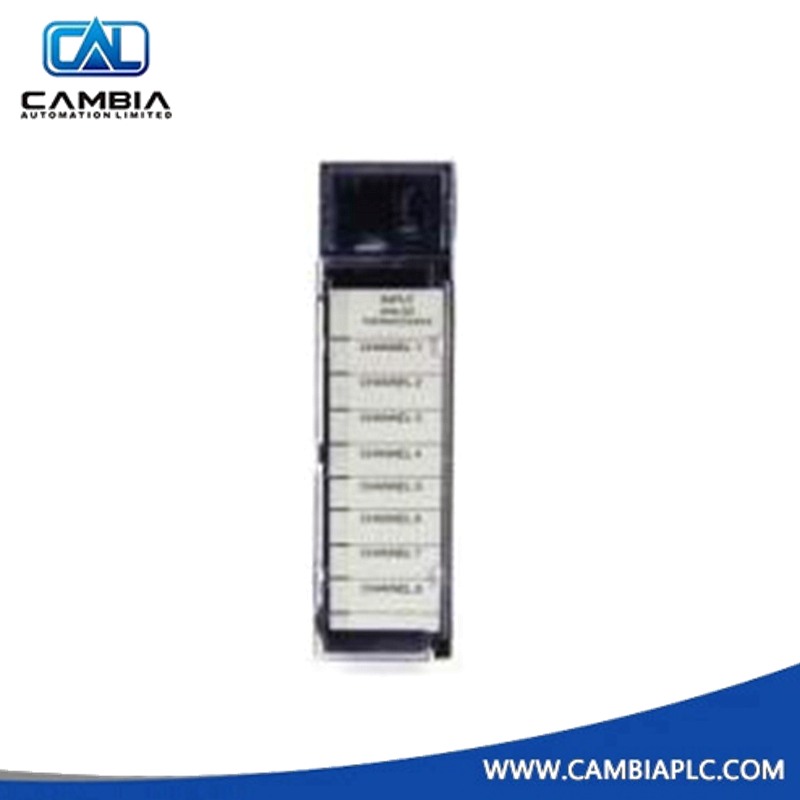

GE IC695ALG728 | 8-Channel Analog Output Module with HART

The IC695ALG728 is an 8-channel analog output module that supports voltage, current, and HART signal types. It’s designed for high-performance industrial control systems where precision and flexibility are key.

Technical Specifications

Attribute Details
Series PACSystems RX3i
Channels 8 non-isolated analog outputs
Output Types Voltage: ±10 VDC, 0–10 VDC
Current: 0–20 mA, 4–20 mA
Resolution Up to 16-bit
Accuracy ±0.1% of full scale
Update Rate 100 Hz (single channel)
Protocol Support HART 5.0
Power Supply External 24 VDC (19.2–30 VDC), max 250 mA
Dimensions 34 × 145 × 140 mm
Mounting Panel or DIN rail
Operating Temp –20°C to +60°C
Certifications UL, CE, ATEX, Zone 2, HAZLOC

Key Features

  • Flexible Output Configuration: Each channel can be independently set for voltage or current
  • HART Communication: Enables smart device integration and diagnostics
  • High Precision: Ideal for demanding process control applications
  • Advanced Diagnostics: Includes output clamping, alarm limits, and programmable bias
  • Robust Design: Withstands harsh environments and electromagnetic interference
  • Wide Application Range: Used in energy, water treatment, manufacturing, and more
