GE Fanuc
IC694PWR331 | GE Fanuc | Power Supply 24 Vdc High Capacity
In stock, ready to ship
Manufacturer: GE Fanuc
Product No.: IC694PWR331
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

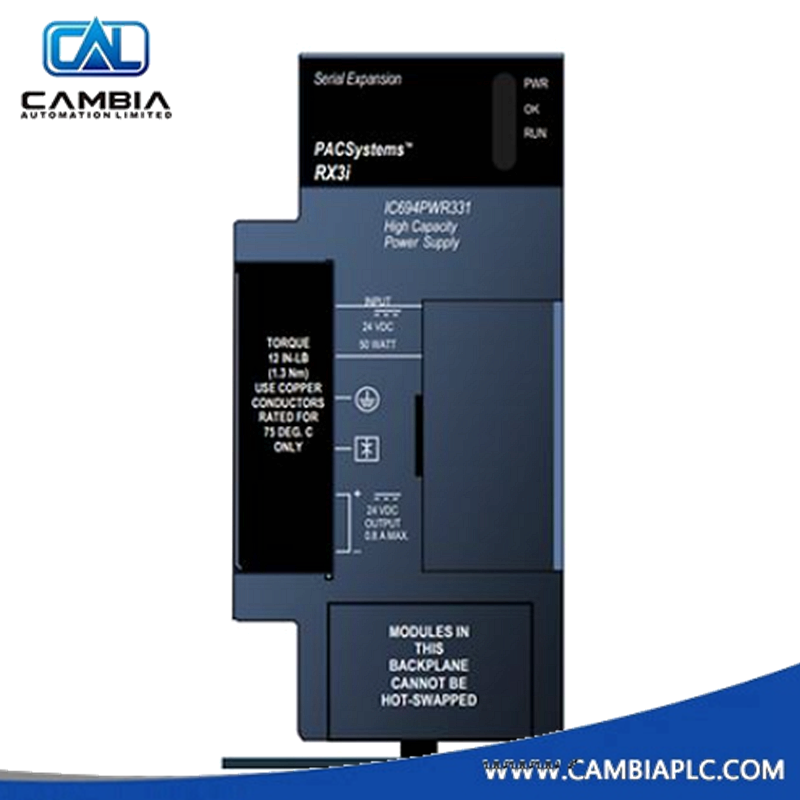

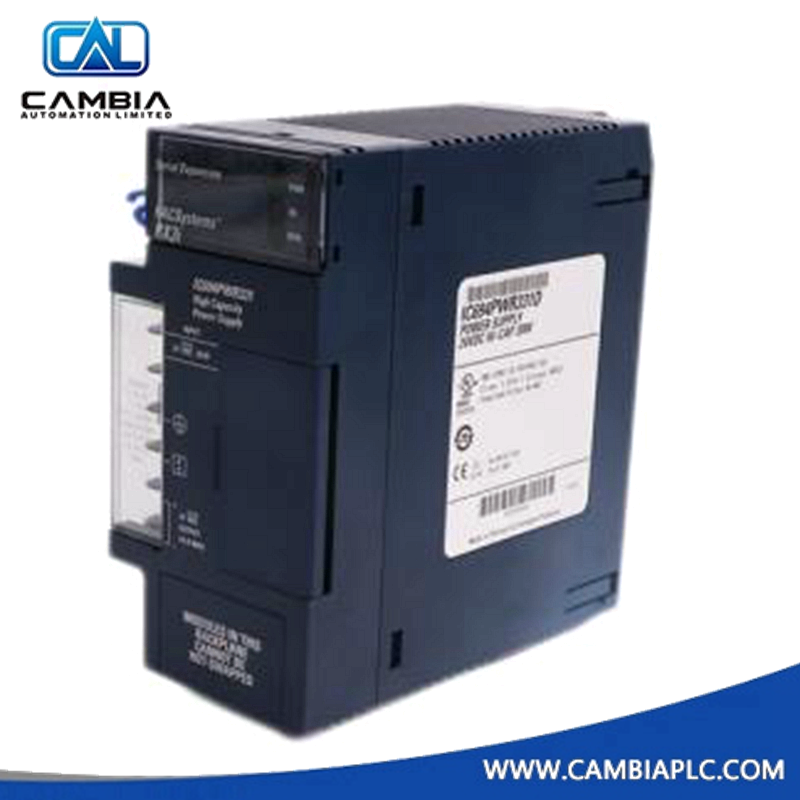

GE IC694PWR331 | 30W DC Power Supply Module
The GE IC694PWR331 is a 30W DC power supply module designed for use with the PACSystems RX3i Serial Expansion Backplane. It provides regulated 24V DC output for powering expansion racks and associated modules in industrial automation systems.
Technical Specifications
| Attribute | Specification |
|---|---|
| Series | PACSystems RX3i |
| Input Voltage Range | 12–30 VDC |
| Nominal Input Voltage | 24 VDC |
| Input Power | 50 W max |
| Output Voltage | 24 VDC ±5% |
| Output Power | 30 W |
| Output Current | Up to 5 A continuous |
| Efficiency | >85% |
| Outputs | 24V DC isolated, 5V DC, 24V DC relay |
| Relay Output Rating | 24 VDC @ 0.5 A |
| LED Indicators | OK, PWR, RUN |
| Mounting Type | 1-slot in RX3i Serial Expansion Backplane |
| Dimensions (W × H × D) | 110 × 64 × 30 mm |
| Weight | 0.5 kg |
| Operating Temperature | –20°C to +60°C |
| Humidity Resistance | 5–95% RH (non-condensing) |
| Certifications | EMC compliant, UL, CE |
Key Features
- Provides stable 24V DC power for RX3i expansion racks
- Supports multiple outputs including relay and isolated channels
- Compact 1-slot design for space-efficient installations
- LED indicators for real-time status monitoring
- Built-in protection against overcurrent and short circuits
- Hot-swappable for minimal system downtime
- Compatible with GE RX3i CPUs and I/O modules
- Ideal for automotive, food processing, and power generation applications
