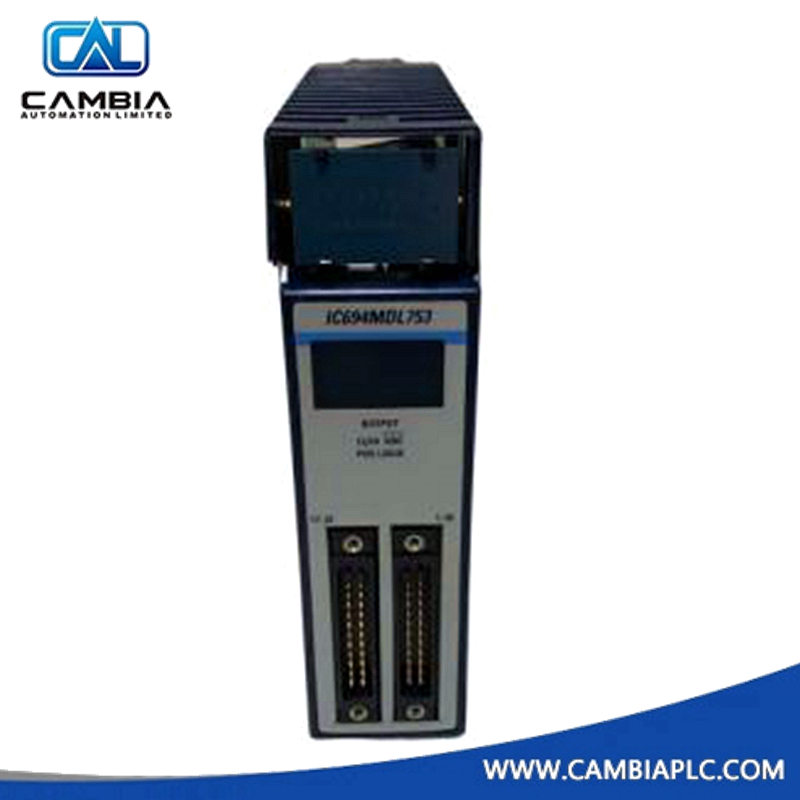

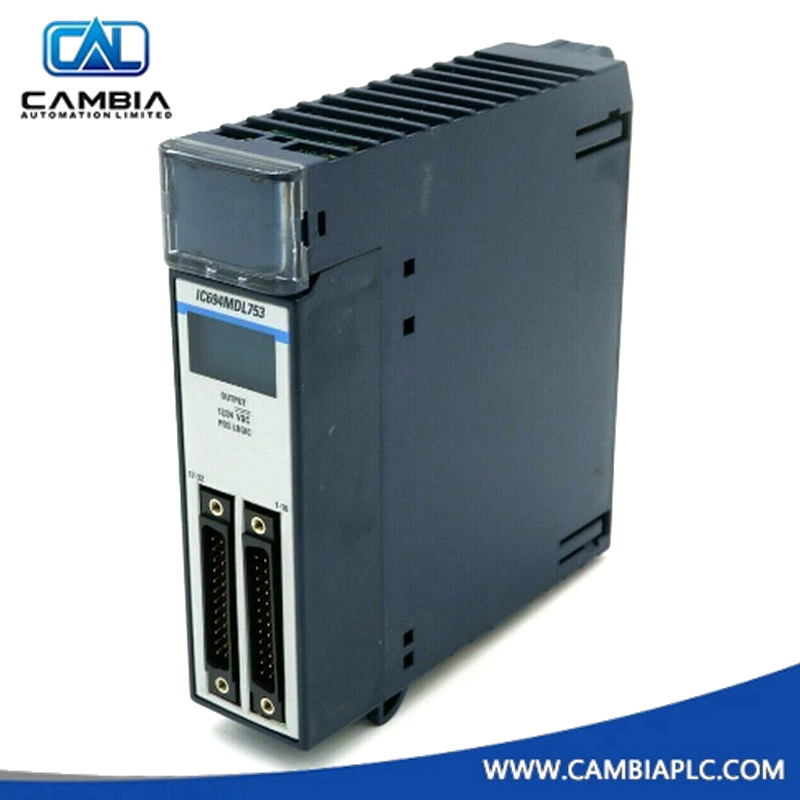

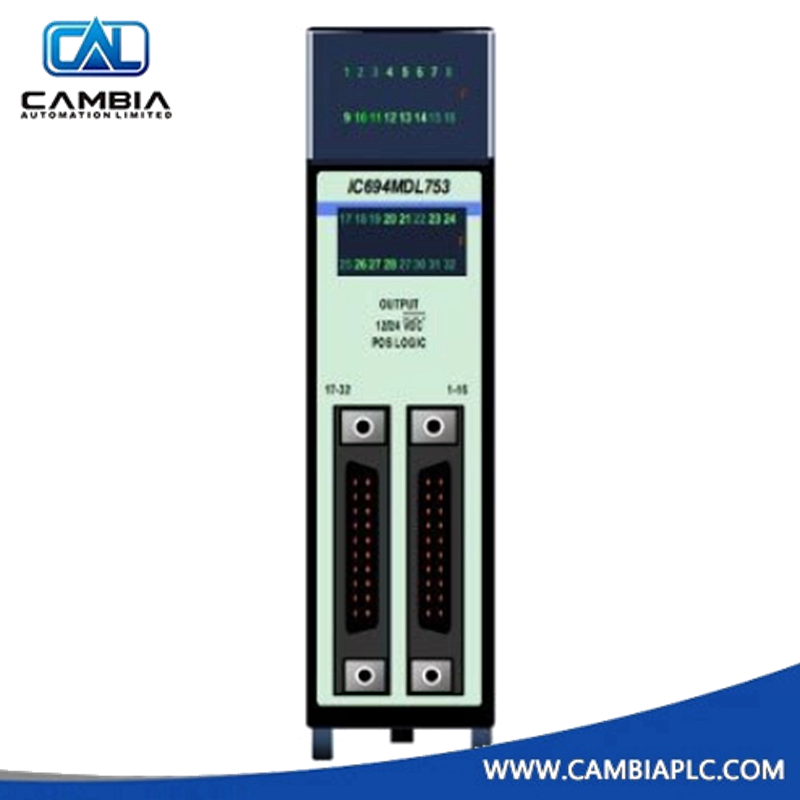

GE Fanuc IC694MDL753
32-Point Isolated DC Output Module for RX3i PACSystems
The IC694MDL753 is a 32-point isolated DC output module designed for use in the RX3i PACSystems series by GE Fanuc (now Emerson Automation). It provides high-density 12/24 VDC positive logic outputs, organized into four isolated groups of eight channels. Each output channel supports up to 0.5 A, making the module suitable for controlling solenoids, relays, pilot lights, and other discrete devices in industrial automation environments.
Technical Specifications
| Manufacturer | GE Fanuc (Emerson Automation) |
| Catalog Number | IC694MDL753 |
| Product Type | Discrete Output Module |
| Series | RX3i PACSystems |
| Output Type | 12/24 VDC Positive Logic |
| Number of Output Points | 32 |
| Grouping | 4 isolated groups of 8 channels |
| Output Current per Point | 0.5 A |
| Output Current per Group | 2.0 A |
| Output Voltage Range | 19.2 to 28.8 VDC |
| Isolation Rating | 250 VAC continuous (field to logic) |
| Surge Withstand | 1500 VAC for 1 minute |
| Power Consumption | 160 mA @ 5 VDC (from backplane) |
| Inrush Current | 4.78 A for 10 ms |
| Protection Features | Electronic short-circuit and overcurrent protection |
| Diagnostic Indicators | Green (output status), Yellow (fault status) |
| Terminal Type | Spring-style removable terminal block |
| Certifications | CE, UL, CSA, ATEX, ABS, BV, DNV, GL, KRS, LR |
Dimensions and Weight
| Width | 265.9 mm |
| Height | 129.9 mm |
| Depth | 142 mm |
| Weight | 1.1 kg |
| Mounting Type | RX3i rack-mounted |
| Cooling Method | Passive (natural convection) |
Product Questions
Q: What type of devices can be controlled with the IC694MDL753?
The module can control discrete DC-powered devices such as solenoids, relays, contactors, and pilot lights.
Q: How are the outputs organized?
Outputs are divided into four isolated groups of eight channels, allowing flexible wiring and load separation.
Q: What protection features are included?
Each output channel includes electronic short-circuit and overcurrent protection. Faults are indicated via yellow LEDs.
Q: Is the module hot-swappable?
No. Modules must be installed or removed with system power off to ensure safe operation.
Q: Is the IC694MDL753 compatible with other RX3i modules?
Yes. It integrates seamlessly with other RX3i I/O and CPU modules within the same rack system.
