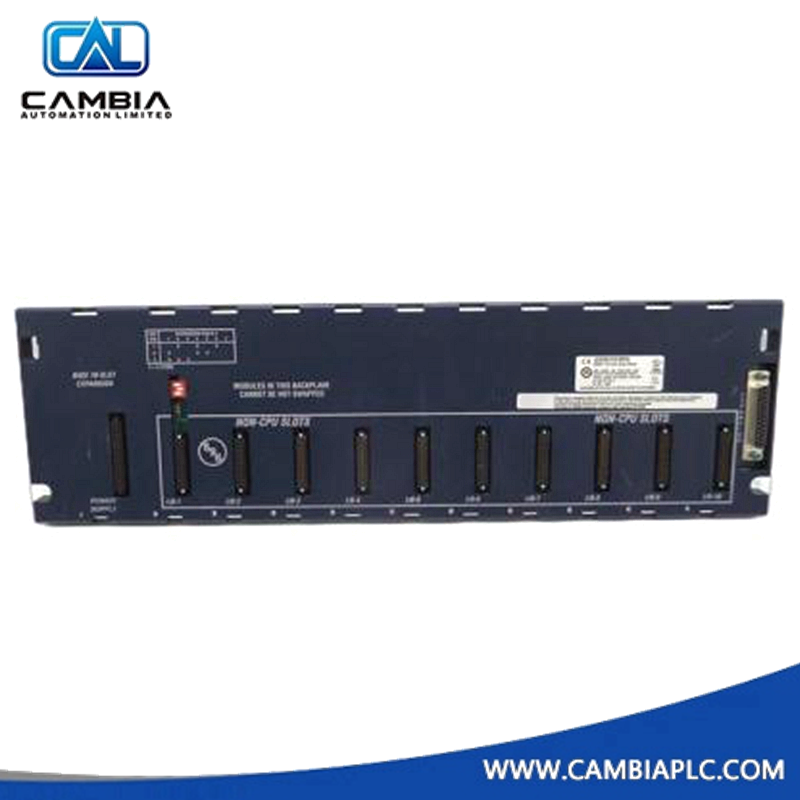

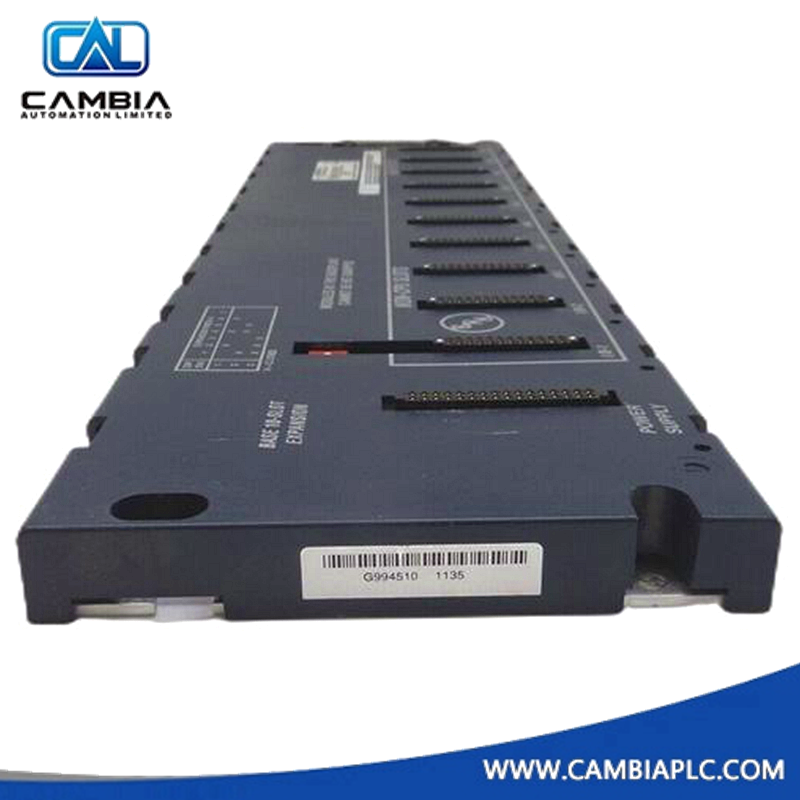

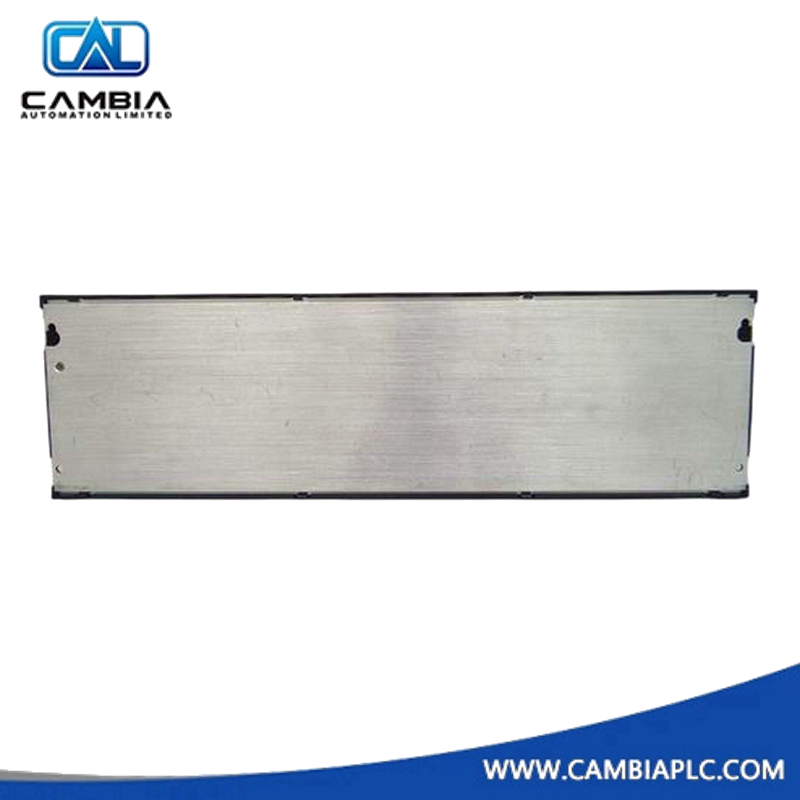

GE Fanuc IC694CHS392

10-Slot Serial Expansion Backplane for RX3i PACSystems

Overview

The IC694CHS392 is a 10-slot Serial Expansion Backplane designed for the RX3i PACSystems series by GE Fanuc (now Emerson Automation). It enables modular expansion of I/O capabilities in distributed control systems, supporting high-speed serial communication between the CPU and connected I/O modules. This backplane is ideal for applications requiring flexible rack layouts and extended system scalability.

Technical Specifications

Parameter Specification
Manufacturer GE Fanuc (Emerson Automation)
Catalog Number IC694CHS392
Product Type Serial Expansion I/O Backplane
PLC Series RX3i PACSystems
Number of Slots 10
Slot 0 Requirement Must be occupied by power supply (IC694PWR321/330/331)
Communication Type High-speed serial
Connector Type 25-pin female D-sub
Expansion Cable Length Up to 15 meters (50 feet)
Internal Power Consumption 150 mA @ 5 VDC
Module Installation Not hot-swappable
DIP Switch Configuration Required before module installation
Certifications CE, UL, CSA

Dimensions and Weight

Attribute Specification
Width 17.44 inches (443 mm)
Height 5.12 inches (130 mm)
Depth 5.59 inches (142 mm)
Weight 2.03 lbs (0.92 kg)
Mounting Type Rack-mounted

Key Features

  • 10-slot expansion backplane for RX3i PACSystems
  • Supports high-speed serial communication
  • Channel expansion with modular I/O installation
  • Dedicated Slot 0 for power supply modules
  • Expansion cable length up to 15 meters for flexible layout

Product Questions

  • What is the function of the IC694CHS392? It serves as a serial expansion backplane for RX3i systems, allowing connection of multiple I/O modules in a distributed configuration.
  • Can modules be hot-swapped on this backplane? No. Modules must be installed and removed with power off to avoid damage.
  • Which power supply modules are compatible? Only IC694PWR321, IC694PWR330, or IC694PWR331 can be used in Slot 0.
  • Is DIP switch configuration necessary? Yes. DIP switches must be correctly set prior to installation to ensure proper operation.
  • How far can the expansion cable extend? Up to 15 meters (50 feet), allowing flexible system layout.
