Horizontal Carrier Extender KJ4002X1-BF3 Emerson DeltaV 0.8m
In stock, ready to ship
Manufacturer: Emerson
Product No.: KJ4002X1-BF3
Product Type: Carrier Extender Cable
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

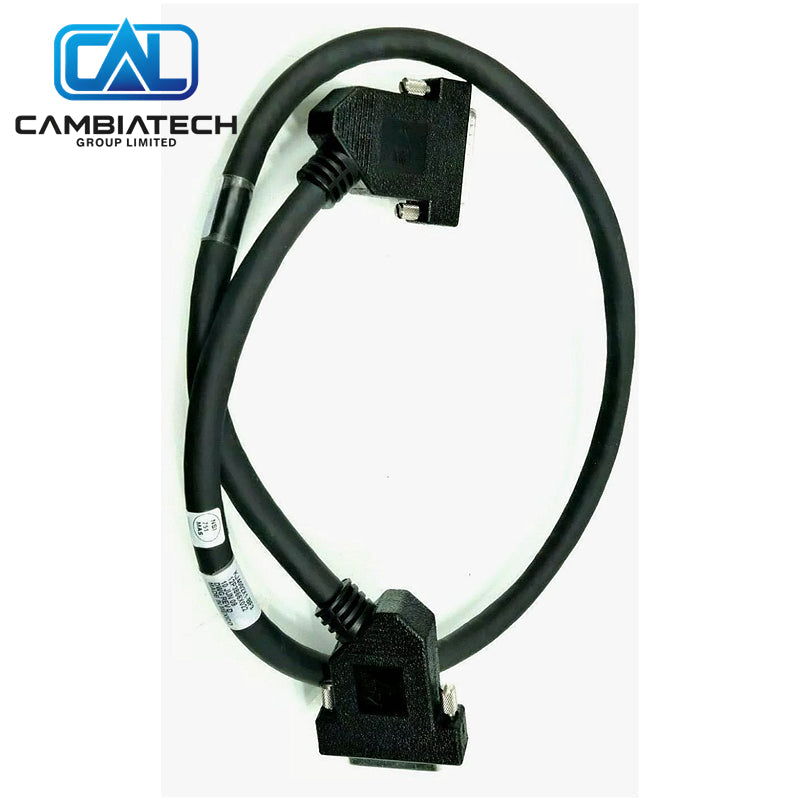

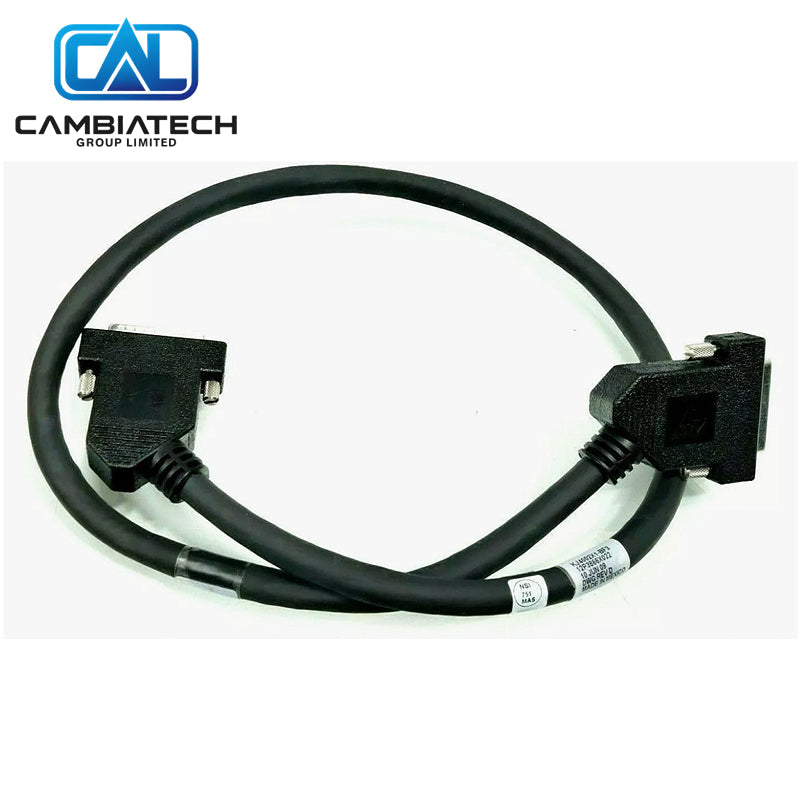

Emerson KJ4002X1-BF3 is a Horizontal Carrier Extender (bottom extender cable assembly) for DeltaV systems. The 0.8 m 44-pin male-to-female cable extends the LocalBus connection between horizontal carriers.
Key Specs
- Type: Bottom Extender Cable Assembly / Horizontal Carrier Extender
- Length: 0.8 m
- Connector: 44-pin male-to-female
- Contacts: Gold-plated
- Operating temperature: −20 °C to +70 °C
- System: DeltaV horizontal carriers
Why Choose This
- Enables modular expansion of horizontal carriers
- Maintains LocalBus signal integrity
- Gold-plated contacts for reliability
- Flexible 0.8 m length for cabinet layout
Common Questions
- Length? 0.8 m.
- Function? Extends LocalBus between horizontal carriers.
- Connectors? 44-pin male-to-female.
Mounting Steps
- Power down the affected carriers.
- Connect the extender cable between the bottom connectors of the two horizontal carriers.
- Ensure secure latching of the 44-pin connectors.
- Route the cable neatly inside the cabinet.
- Power up and verify LocalBus communication.
Buying Advice
- Use when extending horizontal carrier assemblies.
- Confirm 0.8 m length is sufficient for the layout.
- Useful spare for multi-carrier DeltaV installations.
