Honeywell

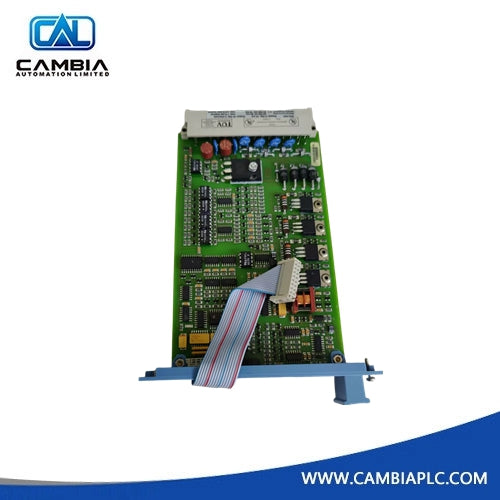

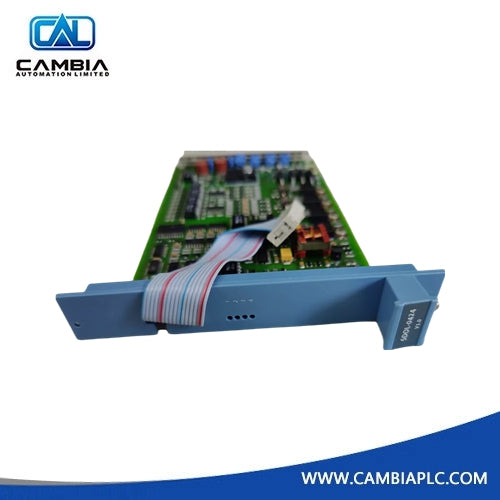

Honeywell FC-SDOL-0424 Digital Output Module in Stock
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-SDOL-0424
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The Honeywell FC-SDOL-0424 is a safety-focused, loop-monitored digital output module designed for demanding industrial control systems. It features four independent output channels, each delivering up to 1A of current at 24 VDC, ensuring reliable operation and advanced safety features.
Key Features
Four Output Channels: Provides four independent channels for versatile control applications, accommodating various load requirements.
Loop Monitoring: Continuously monitors output current and voltage, enhancing safety and operational reliability.
Short Circuit Protection: Protects both the module and connected devices from short circuit damage.
Compact Design: Efficiently uses space with a footprint of 4 TE and 3 HE, suitable for installations where space is limited.
Wide Range of Approvals: Complies with international safety standards including CE, TUV, UL, CSA, and FM, ensuring global usability and reliability.
Specifications
Number of Output Channels: 4
Output Voltage: 24 VDC
Maximum Output Current per Channel: 1 A
Maximum Total Module Load: 3.6 A
Power Requirements:
5 VDC, 15 mA
24 VDC internal, 50 mA
24 VDC external, 15 mA (without output load)
Space Requirements: 4 TE, 3 HE
Approvals: CE, TUV, UL, CSA, FM
