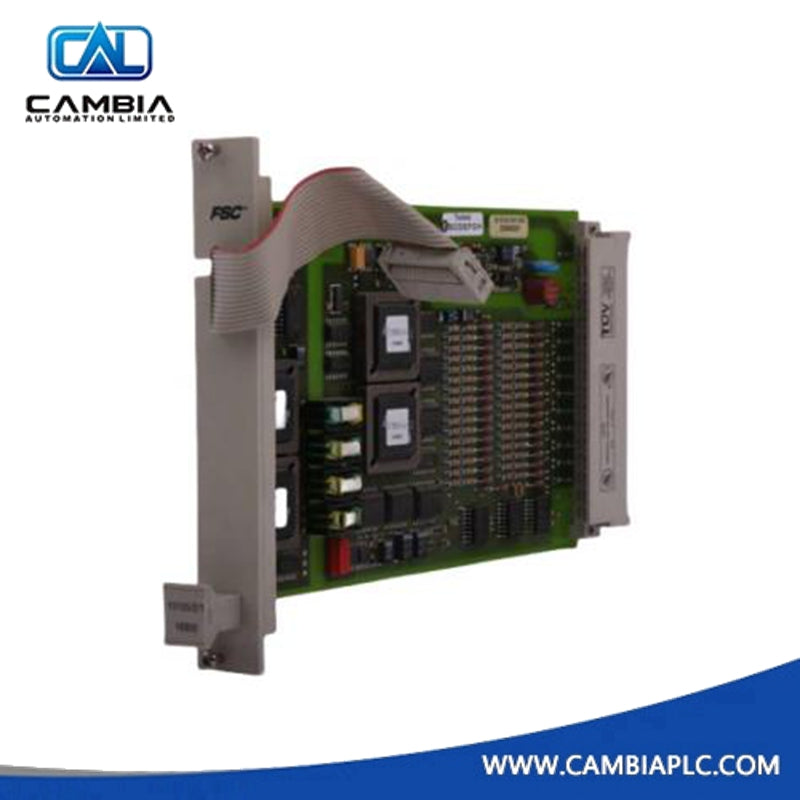

Honeywell FC-RO-1024 Relay Output Module
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-RO-1024
Product Type: Relay Output Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Honeywell FC-RO-1024 is a relay output module designed for industrial automation systems. Featuring 10 potential-free contact channels, it provides reliable switching for both resistive and inductive loads. This module is particularly suited for use within Honeywell’s Safety Manager and Process Manager platforms.
Technical Specifications:
| Parameter | Value |
|---|---|
| Model | FC-RO-1024 |
| Product Type | Relay Output Module |
| Output Channels | 10 potential-free relay contacts |
| Max Switching Voltage | 30 V AC / 36 V DC (IEC 61010-1 compliant) |
| Max Switching Current | 2 A per channel |
| Max Switched Power | 100 W / 1000 VA |
| Max Load Capacitance | 100 nF |
| Contact Material | Gold flash over silver alloy |
| Electrical Life | 1,000,000 operations (resistive), 100,000 (inductive) |
| Power Supply | 5 V DC @ 25 mA, 24 V DC @ 120 mA |
| Watchdog Function | Outputs de-energize on system failure |
| Inductive Load Protection | External suppression diode required |
| Form Factor | 4 TE horizontal, 3 HE vertical |
| Weight | Approximately 300 g |
| Origin | USA |
| Warranty | 12 months |
Features:
-
10-Channel Relay Output: Offers flexibility in controlling multiple loads simultaneously.
-
Watchdog-Controlled Outputs: Ensures system safety by de-energizing outputs in case of system failure.
-
Supports Resistive and Inductive Loads: Ideal for a wide range of industrial applications, from simple to complex tasks.
-
Gold-Flash Contacts: Enhances conductivity, minimizes wear, and ensures long-lasting performance.
-
Compact Design: Easily fits into control cabinets for space-efficient installation.
-
IEC Compliance: Meets safety standards for voltage and operation.
-
Reliable Switching: Long electrical life ensures consistent and dependable performance.
-
Non-Safety-Critical Use: Perfect for general automation tasks, excluding safety-critical applications.
