Honeywell
Honeywell 2MLR-E12P I/O Base for 12 Module Installation
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 2MLR-E12P
Product Type: Baseplate
Product Origin: France
Payment: T/T
Weight: 590g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

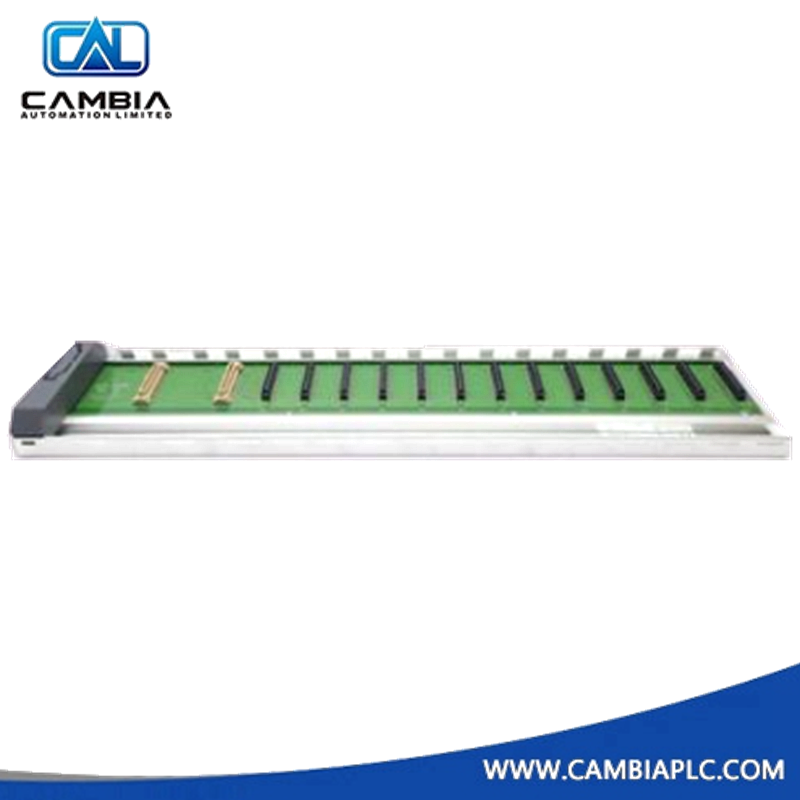

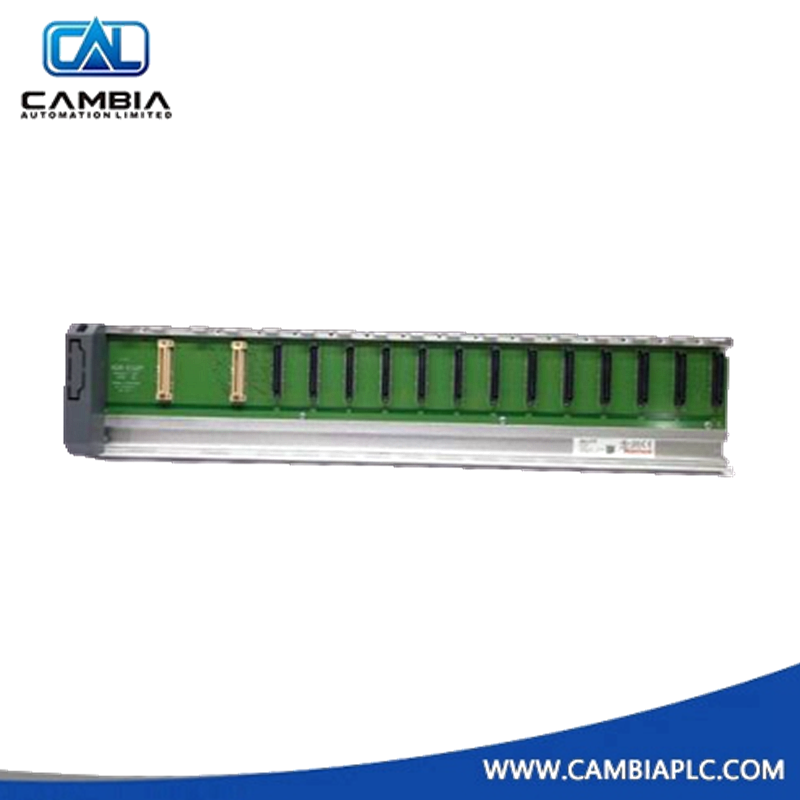

Honeywell 2MLR-E12P 12-Slot Expansion Baseplate
Flexible I/O Expansion for MasterLogic-200R PLC Systems
Product Overview
The 2MLR-E12P is a 12-slot expansion I/O base designed for Honeywell’s MasterLogic-200R PLC architecture. It allows scalable and modular I/O expansion, accommodating up to 12 modules including digital, analog, and communication units.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | 2MLR-E12P |
| Product Type | Expansion I/O Base |
| Slot Capacity | 12 module slots |
| System Compatibility | MasterLogic-200R PLC |
| Compatible CPUs | 2MLR-CPUH/T, 2MLR-CPUH/F |
| Input Voltage | 24 VDC |
| Current Consumption | 220 mA |
| Communication Support | Ethernet/IP or Modbus TCP (based on configuration) |
| Dimensions (W × H × D) | 481 × 98 × 19 mm |
| Weight | 0.59 kg |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –25°C to +70°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Panel-mounted |
| Certifications | CE, RoHS |
Features
- Supports installation of up to 12 I/O modules for flexible system expansion
- Compatible with redundant CPU configurations for high-availability systems
- Enables Ethernet/IP or Modbus TCP communication depending on system setup
- Compact and lightweight for space-constrained control panels
- Designed for industrial-grade durability and long-term reliability
- Ideal for process control, machine automation, and distributed I/O networks
