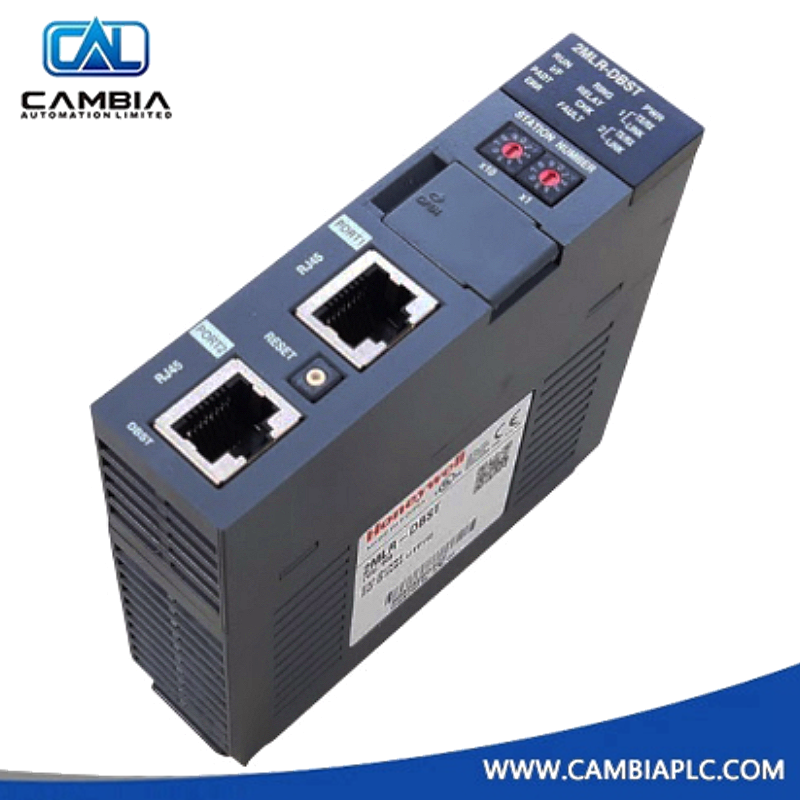

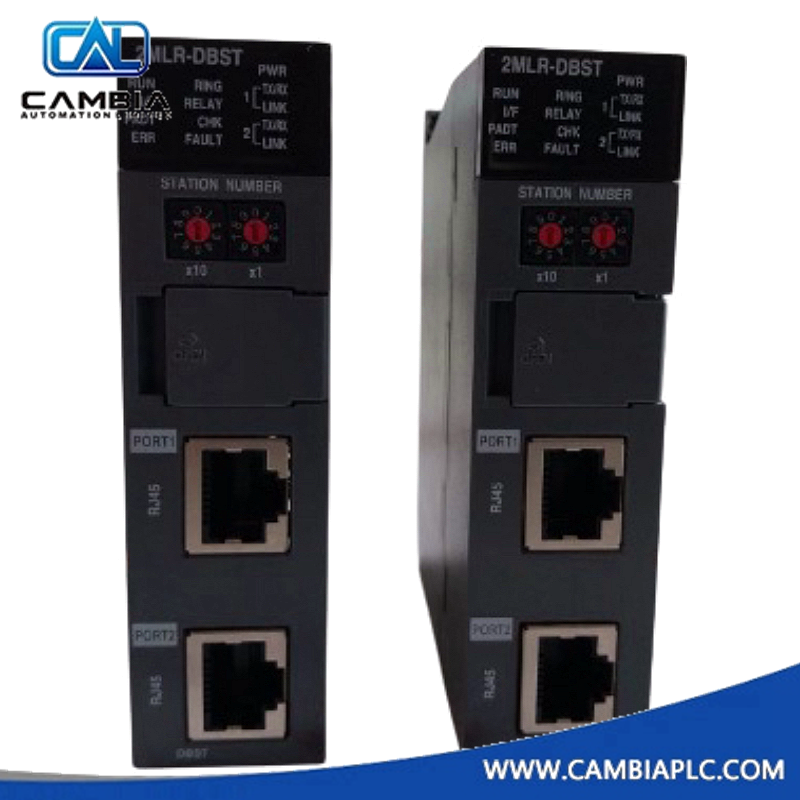

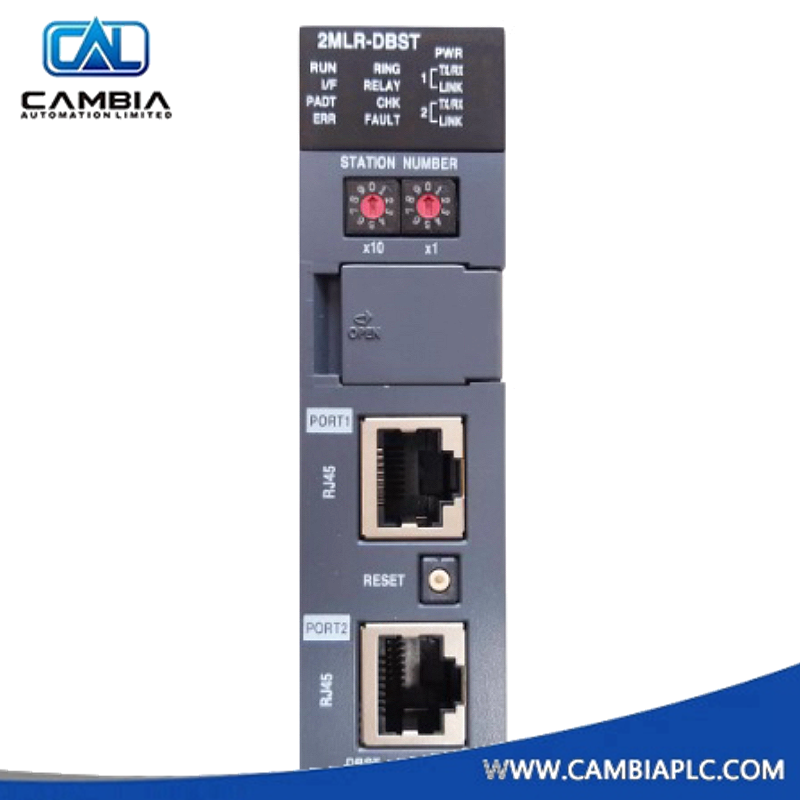

Honeywell 2MLR-DBST I/O Interface Module, TP/CAT5
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 2MLR-DBST
Product Type: Interface Module
Product Origin: France
Payment: T/T
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The 2MLR-DBST is an electrical I/O interface module developed for Honeywell’s MasterLogic-200R PLC platform. It enables high-speed, short-range signal communication between the main CPU and distributed I/O extension bases via TP/CAT5 electrical media. With support for up to 31 extension stations, it provides a flexible and reliable solution for modular control architectures.
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Type | Electrical Expansion Driver Module |
| Communication Media | TP/CAT5 (Twisted Pair, Electrical) |
| Max Transmission Distance | 100 meters between extension bases |
| Station Number Range | 1–31 (Station 0 not allowed) |
| Loader Connection | USB extension drive |
| Installation Position | CPU0 connector on extension base |
| Input Voltage | 24 VDC |
| Operating Temperature | –20°C to +60°C (–40°C to +85°C per some documentation) |
| Dimensions (W × H × D) | 150 × 100 × 30 mm |
| Weight | 0.1 kg |
| Certifications | CE, UL508, CSA, TUV |
Features
- Enables high-speed electrical communication between MasterLogic-200R CPU and I/O extension bases
- Supports up to 31 stations with automatic detection of address errors
- Uses standard CAT5 twisted pair cable for easy wiring
- Includes USB loader connection for configuration and diagnostic access
- Compact, lightweight design suitable for panel or rack mounting
