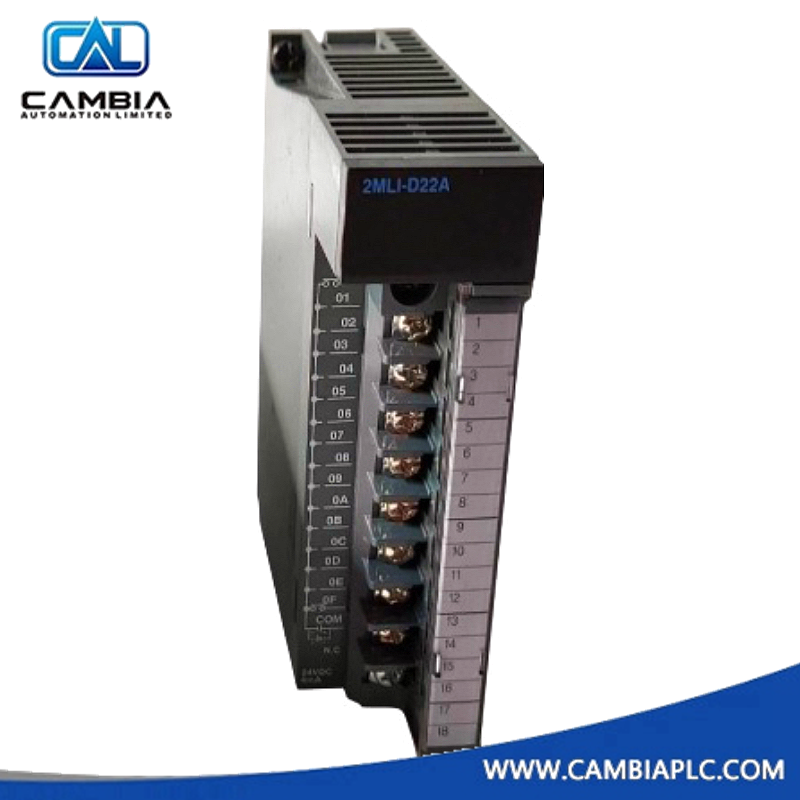

Honeywell 2MLI-D22A Digital Input Module for MasterLogic-200 PLC
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 2MLI-D22A
Product Type: Digital Input
Product Origin: USA
Payment: T/T
Weight: 120g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Honeywell 2MLI-D22A
16-Point Digital Input Module for MasterLogic-200 PLC
Product Description
The Honeywell 2MLI-D22A is a 16-point digital input module designed for the MasterLogic-200 PLC system. It supports both sink and source-type DC24V inputs, making it suitable for a wide range of industrial automation applications. With fast response times and robust isolation, it ensures reliable signal acquisition from field devices.
- Manufacturer: Honeywell
- Catalog Number: 2MLI-D22A
- Type: Digital Input Module
- Certifications: CE
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Type | Digital Input Module |
| Input Channels | 16 points |
| Input Type | Sink/Source (DC24V) |
| Rated Input Voltage | DC 24V |
| Operating Voltage Range | DC 20.4V – 28.8V |
| On Voltage / Current | ≥ DC19V / ≥ 3 mA |
| Off Voltage / Current | ≤ DC11V / ≤ 1.7 mA |
| Input Resistance | Approx. 5.6 kΩ |
| Response Time | Configurable (1 ms to 100 ms; default 3 ms) |
| Isolation Method | Photo-coupler isolation |
| Isolation Voltage | AC 560V rms / 3 cycles |
| Isolation Resistance | ≥10 MΩ |
| Common Method | 16 points per COM |
| Current Consumption | 30 mA |
| Operation Indicator | LED ON when input is active |
| External Connection | 18-point terminal block (M3 × 6 screw) |
| Cable Size | 0.3 – 0.75 mm² (twisted pair, ≤2.8 mm diameter) |
| Compressed Terminal | R1.25-3 (sleeve type not allowed) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Weight | 0.12 kg |
Features
- 16-channel digital input for versatile signal acquisition
- Supports both sink and source wiring configurations
- Fast and configurable response times for real-time control
- Photo-coupler isolation for enhanced signal integrity
- LED indicators for input status monitoring
- Compact and lightweight design for easy installation
- Compatible with MasterLogic-200 PLC architecture
- Ideal for factory automation, building control, and energy systems
