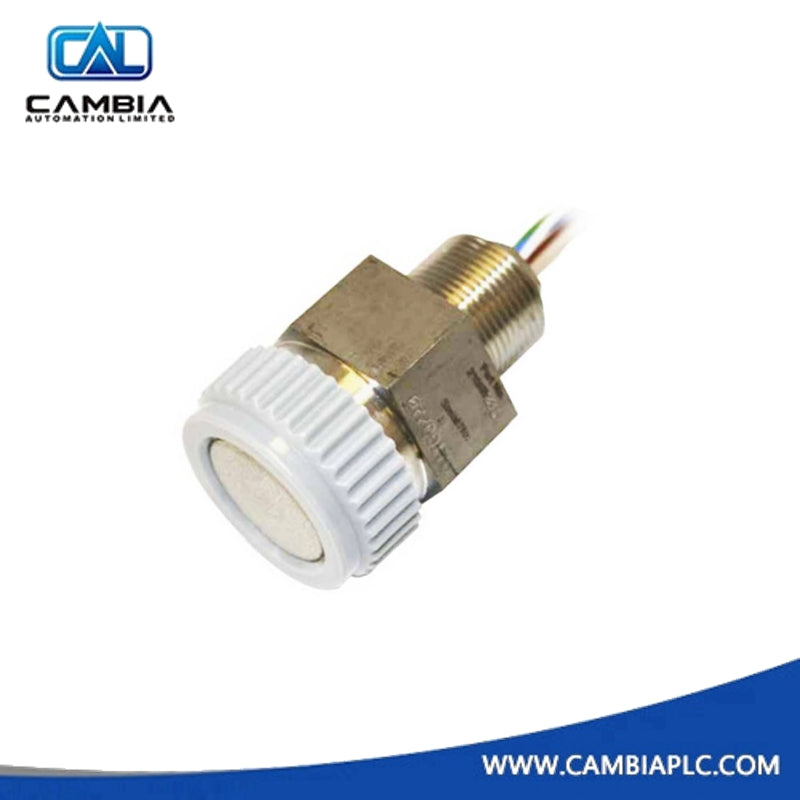

Honeywell 2106B2312 Sensepoint HT Flammable Gas Sensor
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 2106B2312
Product Type: Flammable Gas Sensor
Product Origin: USA
Payment: T/T
Weight: 2810g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Honeywell 2106B2312 is a high-temperature flammable gas sensor from the Sensepoint HT series, purpose-built for hazardous industrial environments where conventional detectors fail to operate effectively. Ideal for applications such as turbine enclosures, drying ovens, and solvent-based coating systems, it provides reliable gas detection in areas exposed to elevated temperatures.
Utilizing poison-resistant catalytic bead technology, the sensor ensures stable and accurate measurement of combustible gases. With a fast response time of under 10 seconds, it enhances operational safety by delivering early warnings of potential gas hazards. Its rugged 316 stainless steel housing and IP66 ingress protection make it suitable for harsh conditions while complying with ATEX and IECEx safety standards.
Key Features
-
High-temperature gas detection up to +150°C
-
Poison-resistant catalytic bead sensor
-
Rugged 316 stainless steel enclosure
-
Fast response time: T60 < 6s, T90 < 10s
-
IP66-rated for harsh industrial environments
-
Certified for hazardous locations (ATEX, IECEx)
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | 2106B2312 |
| Detection Range | 0–20% LEL or 0–100% LEL (control card dependent) |
| Response Time | T60 < 6s, T90 < 10s |
| Alarm Trip Point | As low as 5% LEL |
| Sensor Type | Catalytic bead, poison-resistant |
| Output Signal | 3-wire millivolt bridge |
| Operating Temperature | –55°C to +150°C (–67°F to +302°F) |
| Humidity Range | 20–90% RH continuous, 10–99% RH intermittent |
| Pressure Range | 75–110 kPa (750–1100 mbar) |
| Power Consumption | 0.7 W at 200 mA |
| Enclosure Material | 316 stainless steel |
| Ingress Protection | IP66 |
| Certifications | ATEX, IECEx |
