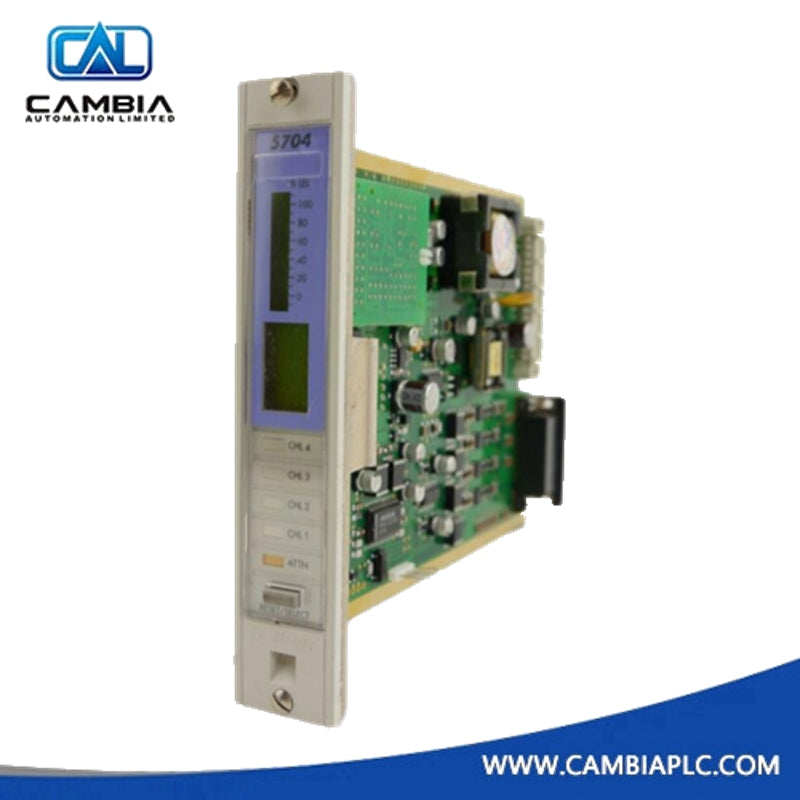

Honeywell 05704-A-0145 Four-Channel Control Module
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 05704-A-0145
Product Type: Four-Channel Control Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The 05704-A-0145 from HONEYWELL is a robust four-channel control module built for industrial automation. It originates from the USA and excels at managing multiple input and output signals. This module delivers fast, accurate control to support critical industrial processes.
Key Technical Specifications of the 05704-A-0145
| Specification | Details |
|---|---|
| Input Signal Range | 4-20mA |
| Power Consumption | Maximum: 8.3W; Typical: 7.5W |
| Loop Powered Output Voltage | Isolated 24V ± 5%, maximum 25mA |
| Loop Protection | Short circuit, ±50V open circuit voltage |
| Measurement Signal Range | 0 to 25mA (linear) |
| Maximum Line Resistance | 500 ohms (including sensor) |
| Isolation Breakdown Voltage | Over ±50V DC to system 0V |
| Dimensions | 132 mm × 25 mm × 172 mm |
| Weight | 141g (0.31 lbs) |
| Operating Temperature | -5°C to +55°C (in a system) |
| Storage Temperature | -25°C to +55°C |
| Operating Humidity | 20-90% RH (non-condensing) |
The 05704-A-0145 offers strong loop protection to prevent damage from faults. Its 500-ohm maximum line resistance accommodates most industrial sensors easily. Additionally, the module’s isolation breakdown voltage ensures safe operation with system 0V.
HONEYWELL designs the 05704-A-0145 to withstand harsh industrial environments. Its operating temperature range suits diverse on-site conditions, while non-condensing humidity tolerance adds reliability. The module’s compact size and light weight simplify installation in tight spaces.
