Honeywell 05704-A-0144 Control Card
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 05704-A-0144
Product Type: Control Card
Product Origin: USA
Payment: T/T
Weight: 4700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

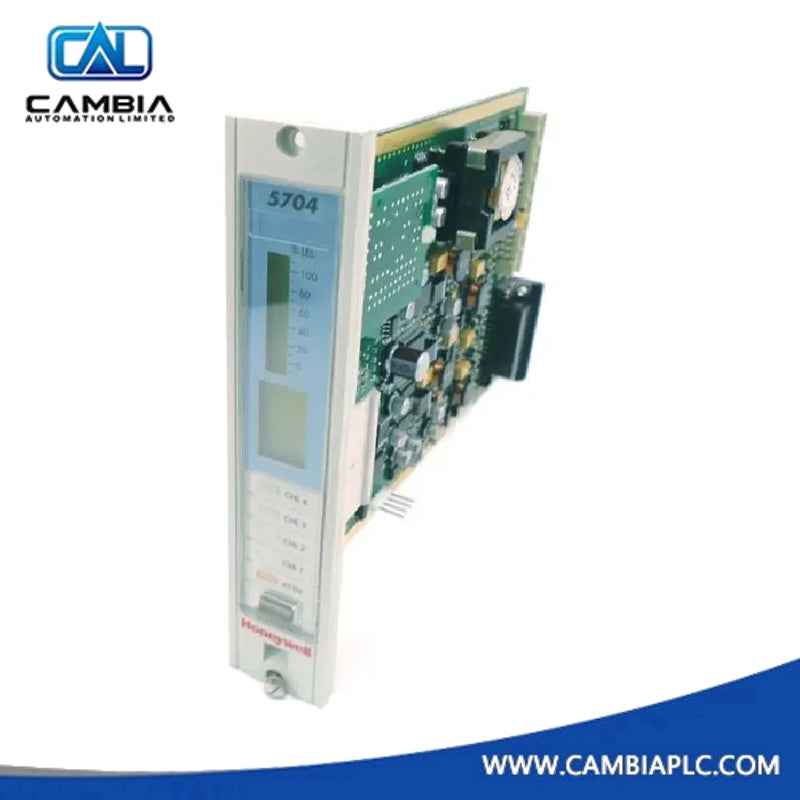

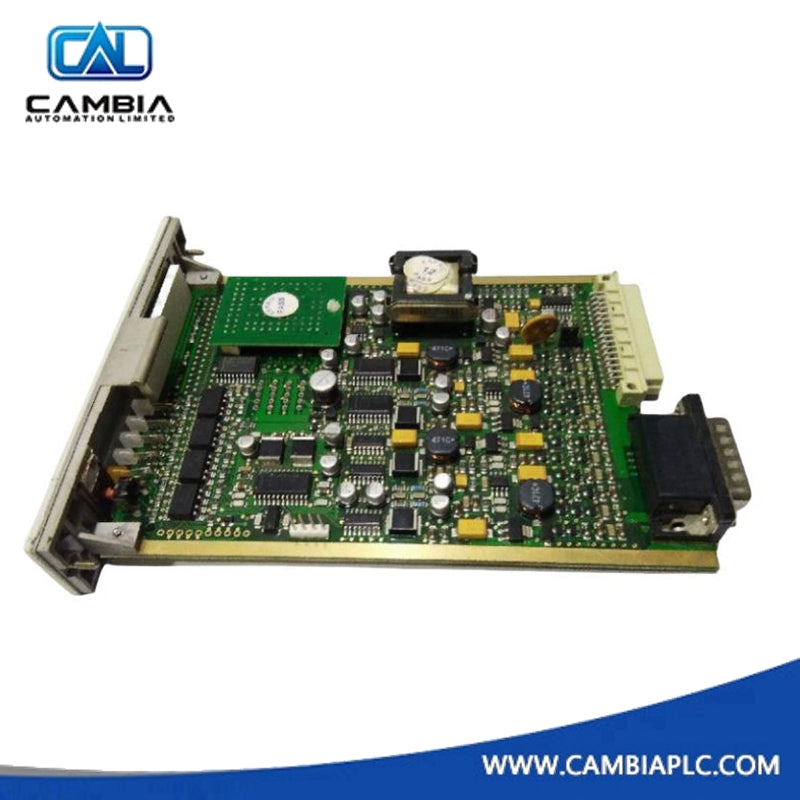

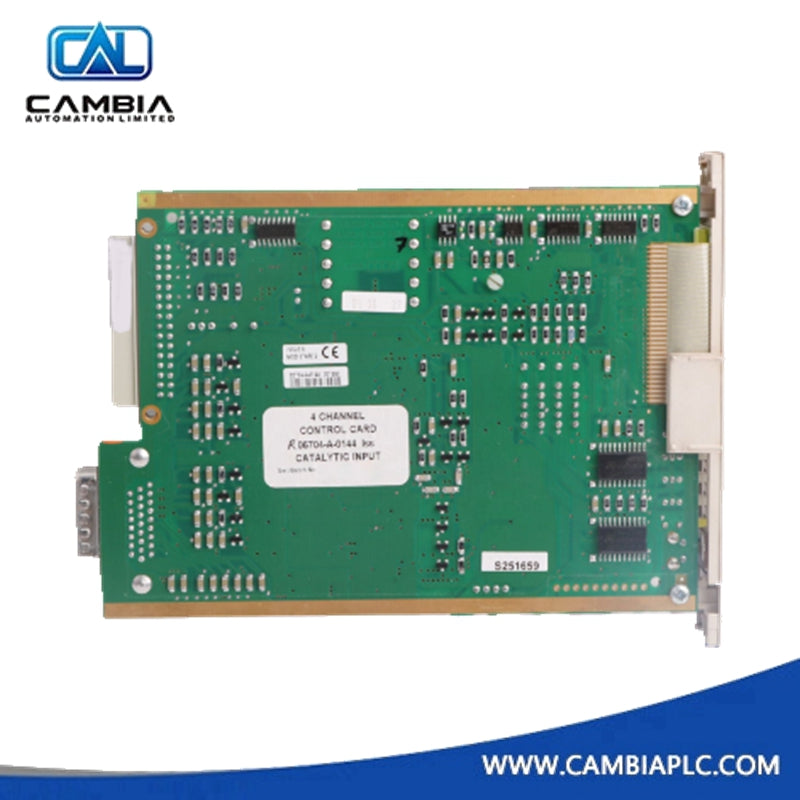

The Honeywell 05704‑A‑0144 is a four‑channel catalytic input control card, used in the System 57 / Zellweger platform. It accepts catalytic sensors, provides accurate input drive, and supports electronic adjustment for bridge balance and signal gain.
Technical Specifications & Features
-
Operates on 18‑32 VDC supply voltage.
-
Offers current regulation in 1 mA steps from 90 mA to 315 mA.
-
Typical power consumption around 8.5 W, rising to 12.8 W under maximum sensor load of 200 mA.
-
Maximum drive voltage reaches 10 V.
-
Max allowable line resistance (including sensor) up to 40 ohms at 200 mA. Full‑scale signal output range spans 15 mV to 300 mV.
-
Bridge imbalance default limits: ±100 mV from center at 2‑V bridge voltage.
-
Includes protections for open circuit faults, short circuit, and single bead failures.
Physical & Operational Details
-
The 05704‑A‑0144 card weighs approximately 2 kg shipping weight.
-
It belongs to Honeywell’s catalog as “Four Channel Control Card Catalytic Input.”
-
Initial input accuracy sits around ±1%.
